Product details

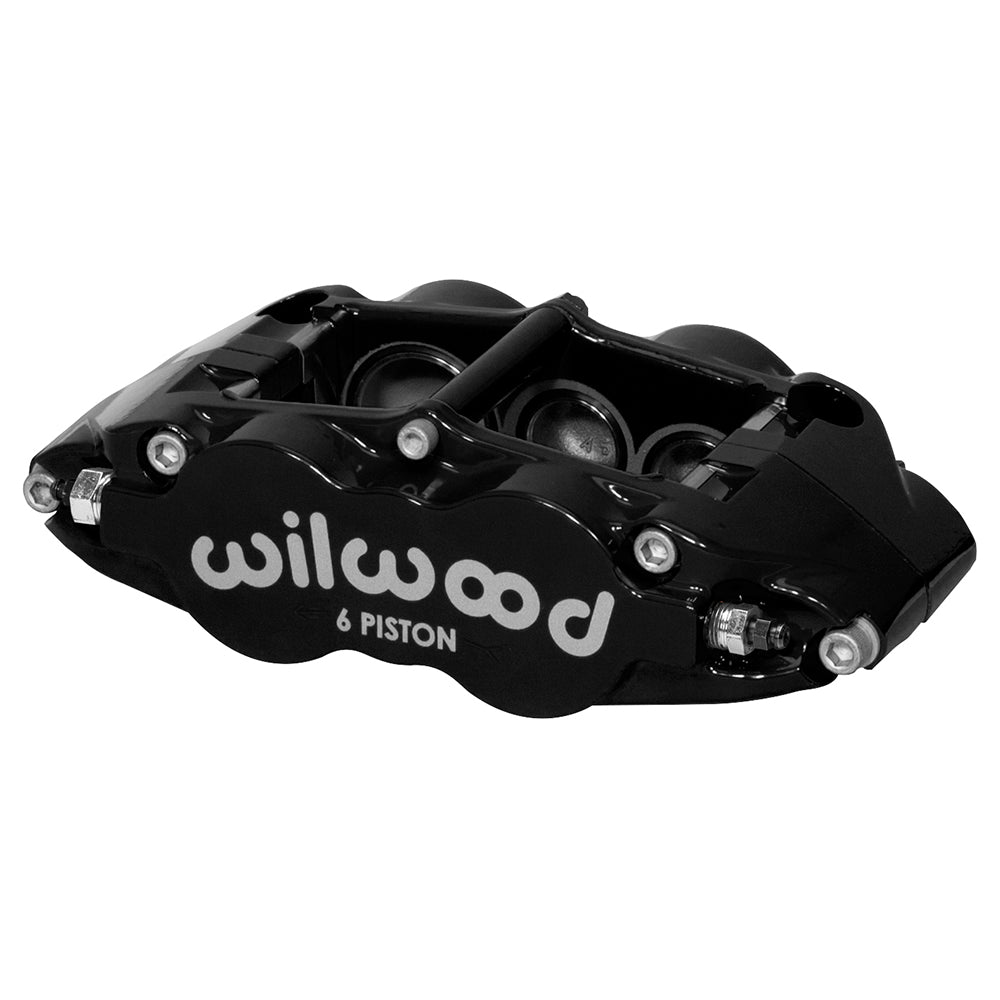

This black right FNSL6R uses the smaller 1.38/1.12/1.12-inch differential bore combination. Six stainless pistons provide a 3.46-square-inch effective area across a nominal 1.10-inch rotor-width channel. With a range spanning calipers, brake rotors, master cylinders, valves, fittings and brake lines, Wilwood Engineering designs and manufactures complete disc braking systems and their components. Bill Wood founded the Camarillo, California-based company in 1977 for a market now covering motorsport, street-performance and specialized applications.
Technical Details
- Manufacturer part number: 120-12002-BK. Component: Forged Narrow Superlite 6 Radial Mount caliper.
- Supply: one brake caliper, not a complete axle brake kit. Match the mating rotor, pads, bracket and connection hardware to the installation.
- Rotor compatibility: nominal width 1.10 inch; diameter 11.75–14.00 inches. Specified rotor-width limits: 1.00–1.10 inch.
- Caliper weight: approximately 5.0 lb.
- Hydraulic inlet thread: 1/8-27 NPT. Use a fitting with the correct thread and sealing seat.
- Compatible brake pad shape: 7416; choose the required compound for the brake system.
- Piston dust boots: not fitted.
- Pistons: 6 stainless steel; bore specification: 1.38/1.12/1.12 inches. Effective piston area: 3.46 sq in.
- Mounting: radial, 5.98-inch centers; right hand orientation. Mount holes: 0.39 inch; height: 1.45 inches.
- Body: forged aluminum; finish: Black powder coat.
Fitment & Compatibility
Match the reduced piston area to the required brake balance. Check the 5.98-inch radial bracket and 7416 pad geometry while preserving the right-hand piston arrangement.
PMB Performance brings more than 20 years of experience to brake-part selection. Include the existing caliper, rotor and mounting details when requesting help with this assembly.
