Product details

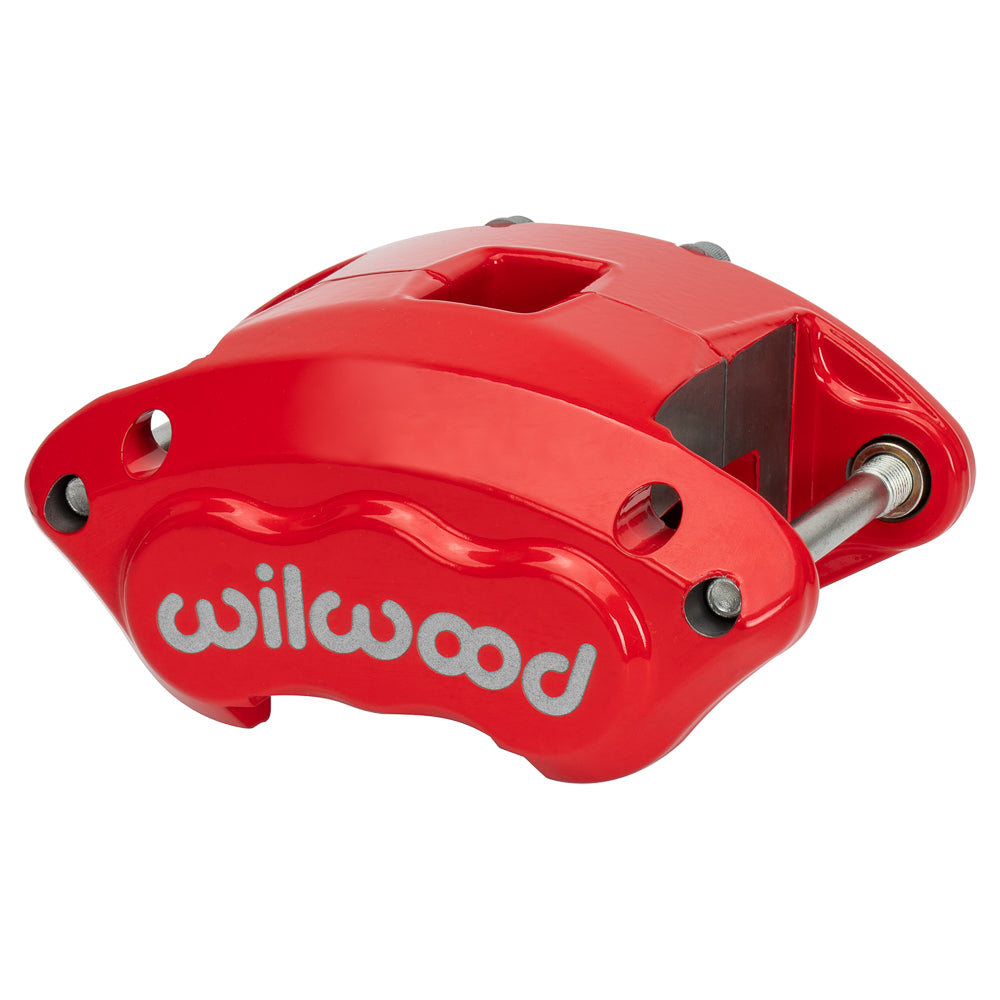

This red D154 has a small 1.98-square-inch piston area from two equal 1.12-inch stainless bores. It is the nominal 1.04-inch rotor-width version of the GM metric floating design. Wilwood Engineering is a Camarillo, California-based designer and manufacturer of disc brake systems, founded by Bill Wood in 1977. Calipers, brake rotors, master cylinders, valves, fittings and brake lines form its range for motorsport, street-performance and specialized applications.
Technical Details
- Manufacturer part number: 120-11874-RD. Component: D154 Single & Dual Piston Floater caliper.
- Supply: one brake caliper, not a complete axle brake kit. Match the mating rotor, pads, bracket and connection hardware to the installation.
- 5.46-inch floating mounting pattern, universal; mounting height 0.37 inches and hole size 0.69 inch.
- Hydraulic inlet thread: M10 x 1.50. Use a fitting with the correct thread and sealing seat.
- Red powder coat finish on a forged aluminum caliper body.
- The rotor channel is specified for 1.04-inch nominal width. Rotor outside diameter: 11.00 to 12.19 inches. Specified rotor-width limits: 0.87–1.04 inch.
- 2 stainless steel pistons with 1.12-inch bore diameter. The specified effective area is 1.98 sq in.
- Piston dust boots: not fitted.
- Caliper weight: approximately 4.6 lb.
- Brake pad profile D154; select friction material for the actual operating conditions.
Fitment & Compatibility
Check piston sizing before replacing a single-piston or larger twin-piston D154. Match the 5.46-inch bracket and original-style pads to the rotor, with the line sealed at its specified metric inlet.
