Product details

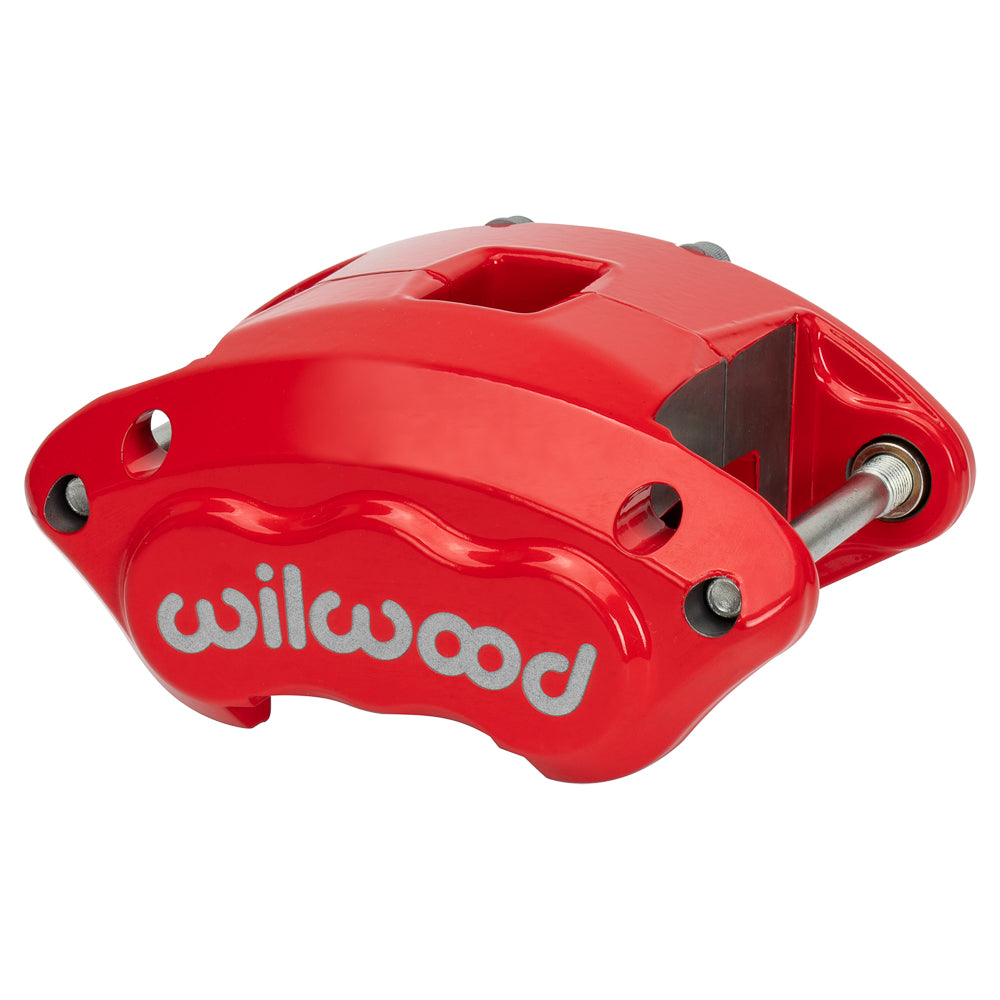

This red D154 is the twin-piston, nominal 1.04-inch rotor-width configuration. Two equal 1.62-inch stainless bores provide a 4.12-square-inch area in the forged GM metric floating body. Wilwood Engineering, founded by Bill Wood in 1977, is based in Camarillo, California. The company makes and designs disc brake components and systems for motorsport, street-performance and specialized applications, including calipers, brake rotors, master cylinders, valves, fittings and brake lines.
Technical Details
- Manufacturer part number: 120-11872-RD. Component: D154 Single & Dual Piston Floater caliper.
- Supply: one brake caliper, not a complete axle brake kit. Match the mating rotor, pads, bracket and connection hardware to the installation.
- Hydraulic inlet thread: M10 x 1.50. Use a fitting with the correct thread and sealing seat.
- Red powder coat finish on a forged aluminum caliper body.
- The rotor channel is specified for 1.04-inch nominal width. Rotor outside diameter: 11.00 to 12.19 inches. Specified rotor-width limits: 0.87–1.04 inch.
- Piston dust boots: not fitted.
- 2 stainless steel pistons with 1.62-inch bore diameter. The specified effective area is 4.12 sq in.
- Caliper weight: approximately 4.6 lb.
- Brake pad profile D154; select friction material for the actual operating conditions.
- 5.46-inch floating mounting pattern, universal; mounting height 0.37 inches and hole size 0.69 inch.
Fitment & Compatibility
Check bracket and rotor dimensions before choosing the twin-piston design. The D154 pad shape and M10 x 1.50 banjo inlet must fit the existing brake arrangement without confusing it with the larger single-piston version.
Ask PMB Performance to check the complete brake arrangement before ordering. Our team brings over 20 years of experience; photographs and measured bracket and rotor dimensions make that check more useful.
