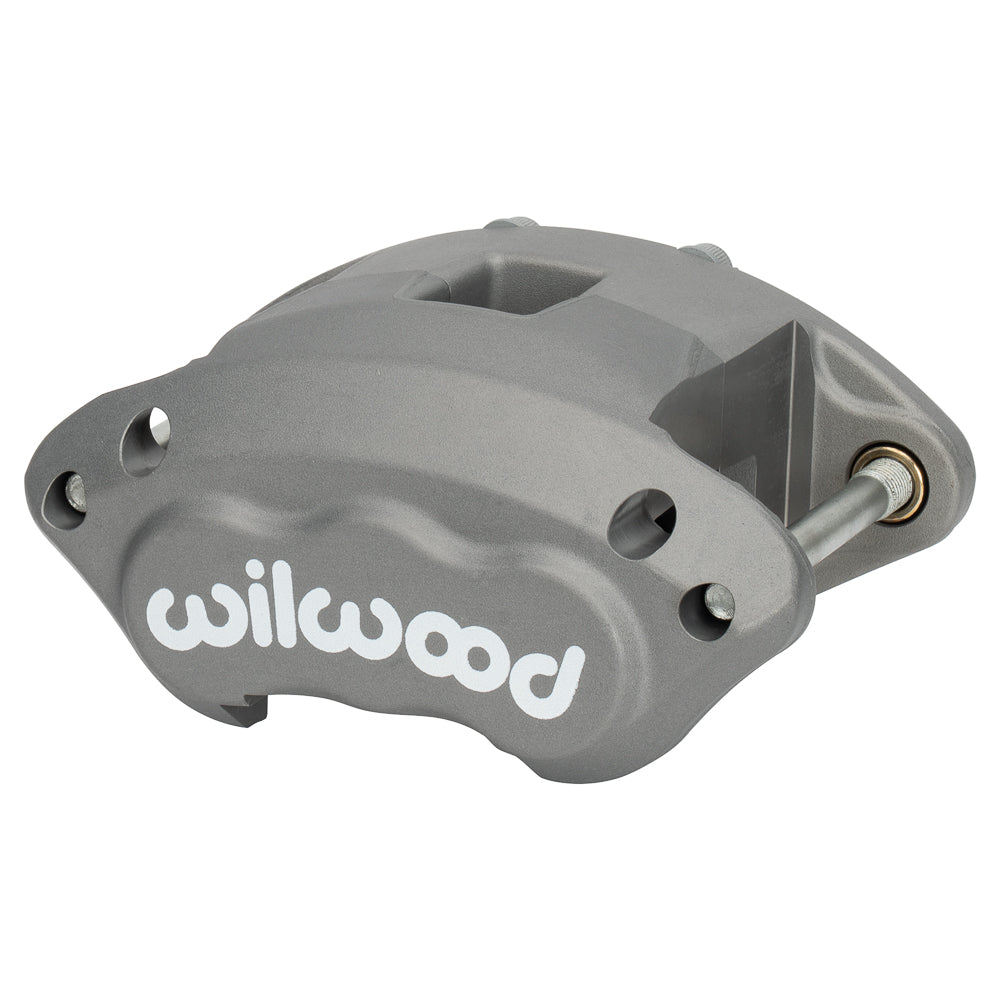

Wilwood D154 Single-Piston Floating Caliper, Type III / 2.50-Inch Bore / 1.04-inch Rotor Width

This anodized D154 is the single-piston GM metric floating caliper with a 2.50-inch stainless bore. Its nominal 1.04-inch rotor-width channel differs from the thinner D154 versions. Wilwood Engineering is a Camarillo, California-based designer and manufacturer of disc brake systems, founded by Bill Wood in 1977. Calipers, brake rotors, master cylinders, valves, fittings and brake lines form its range for motorsport, street-performance and specialized applications.

Technical Details

• Manufacturer part number: 120-11870. Component: D154 Single & Dual Piston Floater caliper.
• Supply: one brake caliper, not a complete axle brake kit. Match the mating rotor, pads, bracket and connection hardware to the installation.
• Type III anodize finish on a forged aluminum caliper body.
• The rotor channel is specified for 1.04-inch nominal width. Rotor outside diameter: 11.00 to 12.19 inches. Specified rotor-width limits: 0.87–1.04 inch.
• Piston dust boots: not fitted.
• Brake pad profile D154; select friction material for the actual operating conditions.
• 1 stainless steel piston with 2.50-inch bore diameter. The specified effective area is 4.90 sq in.
• Caliper weight: approximately 4.6 lb.
• Hydraulic inlet thread: M10 x 1.50. Use a fitting with the correct thread and sealing seat.
• 5.46-inch floating mounting pattern, universal; mounting height 0.37 inches and hole size 0.69 inch.

Fitment & Compatibility

Verify the 4.90-square-inch piston area, original-style D154 pad fit and 5.46-inch slide-pin mounting. The line must use the correct M10 x 1.50 banjo or sealed adapter connection.

PMB Performance has worked with brake components for over 20 years. Share the required piston sizing, rotor measurements and bracket drawing for help checking the match.
