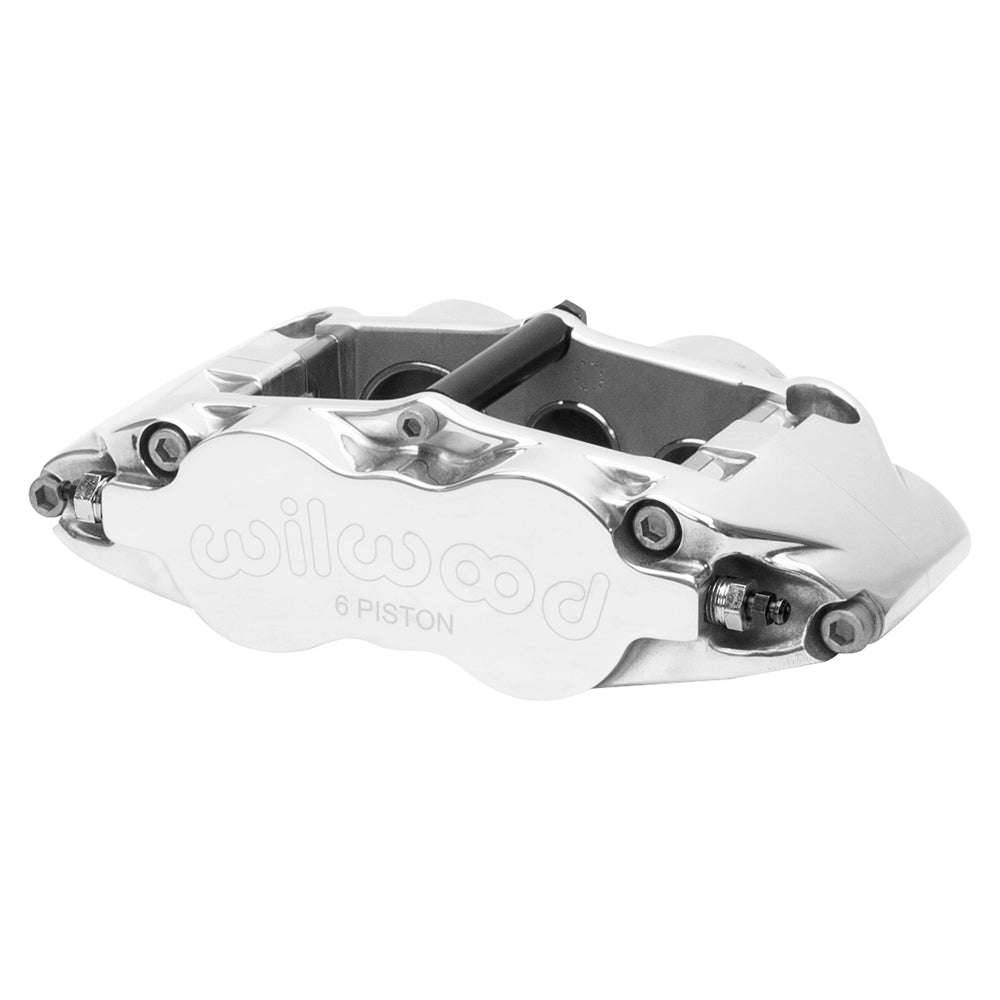

Wilwood Polished Left Narrow Superlite 6 Radial Caliper, 1.10-Inch Rotor Width

This polished left FNSL6R combines a forged radial-mount body with six differential stainless pistons. It is the nominal 1.10-inch rotor-width model, with 7416 pad fit and a 4.04-square-inch area. Wilwood Engineering is a Camarillo, California-based designer and manufacturer of disc brake systems, founded by Bill Wood in 1977. Calipers, brake rotors, master cylinders, valves, fittings and brake lines form its range for motorsport, street-performance and specialized applications.

Technical Details

• Manufacturer part number: 120-11781-P. Component: Forged Narrow Superlite 6 Radial Mount caliper.
• Supply: one brake caliper, not a complete axle brake kit. Match the mating rotor, pads, bracket and connection hardware to the installation.
• The rotor channel is specified for 1.10-inch nominal width. Rotor outside diameter: 11.75 to 14.00 inches. Specified rotor-width limits: 1.00–1.10 inch.
• 6 stainless steel pistons with 1.62/1.12/1.12-inch bore groups. The specified effective area is 4.04 sq in.
• 5.98-inch radial mounting pattern, left hand; mounting height 1.45 inches and hole size 0.39 inch.
• Brake pad profile 7416; select friction material for the actual operating conditions.
• polished finish on a forged aluminum caliper body.
• Hydraulic inlet thread: 1/8-27 NPT. Use a fitting with the correct thread and sealing seat.
• Piston dust boots: not fitted.
• Caliper weight: approximately 5.0 lb.

Fitment & Compatibility

The mounting bracket must locate the left-hand body correctly over the rotor. Check 5.98-inch centers, pad sweep and inlet clearance; a polished version still needs the same dimensional checks as any other finish.
