Product details

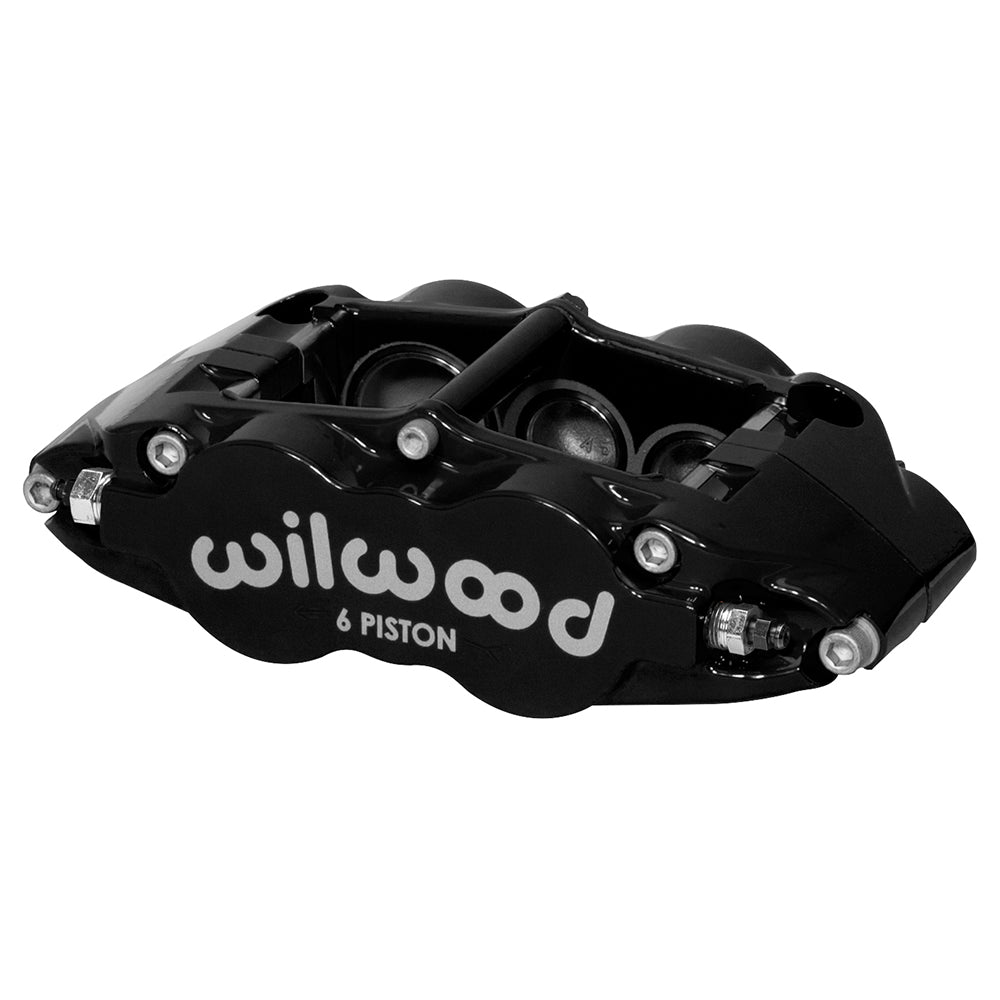

This black right FNSL6R uses six stainless pistons in 1.62/1.12/1.12-inch bore groups. The forged body is the nominal 1.10-inch rotor-width version with the narrow 7416 pad shape. Camarillo, California is home to Wilwood Engineering, the disc brake company Bill Wood founded in 1977. Its design and manufacturing range spans calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized brake systems.
Technical Details
- Manufacturer part number: 120-11780-BK. Component: Forged Narrow Superlite 6 Radial Mount caliper.
- Supply: one brake caliper, not a complete axle brake kit. Match the mating rotor, pads, bracket and connection hardware to the installation.
- Pad fit is type 7416. Match the pad dimensions and compound to the rotor and intended braking conditions.
- Construction and surface: forged aluminum housing finished in Black powder coat.
- Bracket interface: 5.98-inch radial centers with 0.39-inch holes. Specified mount height: 1.45 inches; orientation: right hand.
- Piston dust boots: not fitted.
- Caliper weight: approximately 5.0 lb.
- Nominal rotor width 1.10 inch; compatible outside diameter from 11.75 through 14.00 inches. Specified rotor-width limits: 1.00–1.10 inch.
- Bore configuration 1.62/1.12/1.12 inches across 6 pistons; piston material: stainless steel. Hydraulic effective area: 4.04 square inches.
- Hydraulic inlet thread: 1/8-27 NPT. Use a fitting with the correct thread and sealing seat.
Fitment & Compatibility
Check the right-hand differential arrangement and bracket offset before fitting. Confirm 5.98-inch centers, pad sweep and clearance around the inlet and bleed fittings inside the wheel.
Ask PMB Performance to check the complete brake arrangement before ordering. Our team brings over 20 years of experience; photographs and measured bracket and rotor dimensions make that check more useful.
