Product details

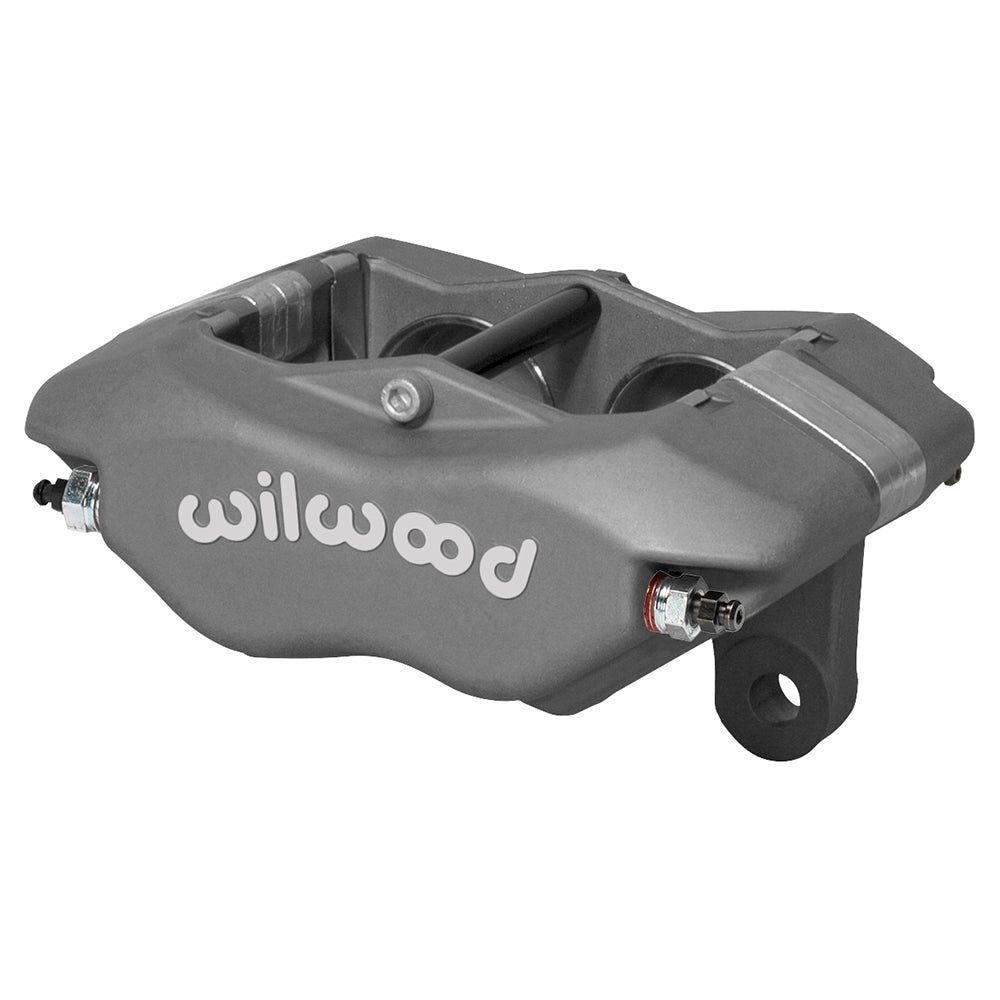

This anodized FNDL is the nominal 0.81-inch rotor-width version with four 1.38-inch stainless pistons. Its compact forged body provides 3.00 square inches of effective area and a 3.50-inch lug mount. Wilwood Engineering is a Camarillo, California-based designer and manufacturer of disc brake systems, founded by Bill Wood in 1977. Calipers, brake rotors, master cylinders, valves, fittings and brake lines form its range for motorsport, street-performance and specialized applications.
Technical Details
- Manufacturer part number: 120-11575. Component: Forged Narrow Dynalite caliper.
- Supply: one brake caliper, not a complete axle brake kit. Match the mating rotor, pads, bracket and connection hardware to the installation.
- Piston dust boots: not fitted.
- The rotor channel is specified for 0.81-inch nominal width. Rotor outside diameter: 11.75 to 12.72 inches. Specified rotor-width limits: 0.75–0.81 inch.
- Type III anodize finish on a forged aluminum caliper body.
- Hydraulic inlet thread: 1/8-27 NPT. Use a fitting with the correct thread and sealing seat.
- Brake pad profile 7816; 7216; select friction material for the actual operating conditions.
- 3.50-inch lug mounting pattern, universal; mounting height 2.85 inches and hole size 0.45 inch.
- Caliper weight: approximately 4.1 lb.
- 4 stainless steel pistons with 1.38-inch bore diameter. The specified effective area is 3.00 sq in.
Fitment & Compatibility
Measure bracket offset and rotor diameter together. The compatible 7816/7216 pad shape helps define the swept area, while the piston sizing must agree with the master cylinder and opposite axle.
