Product details

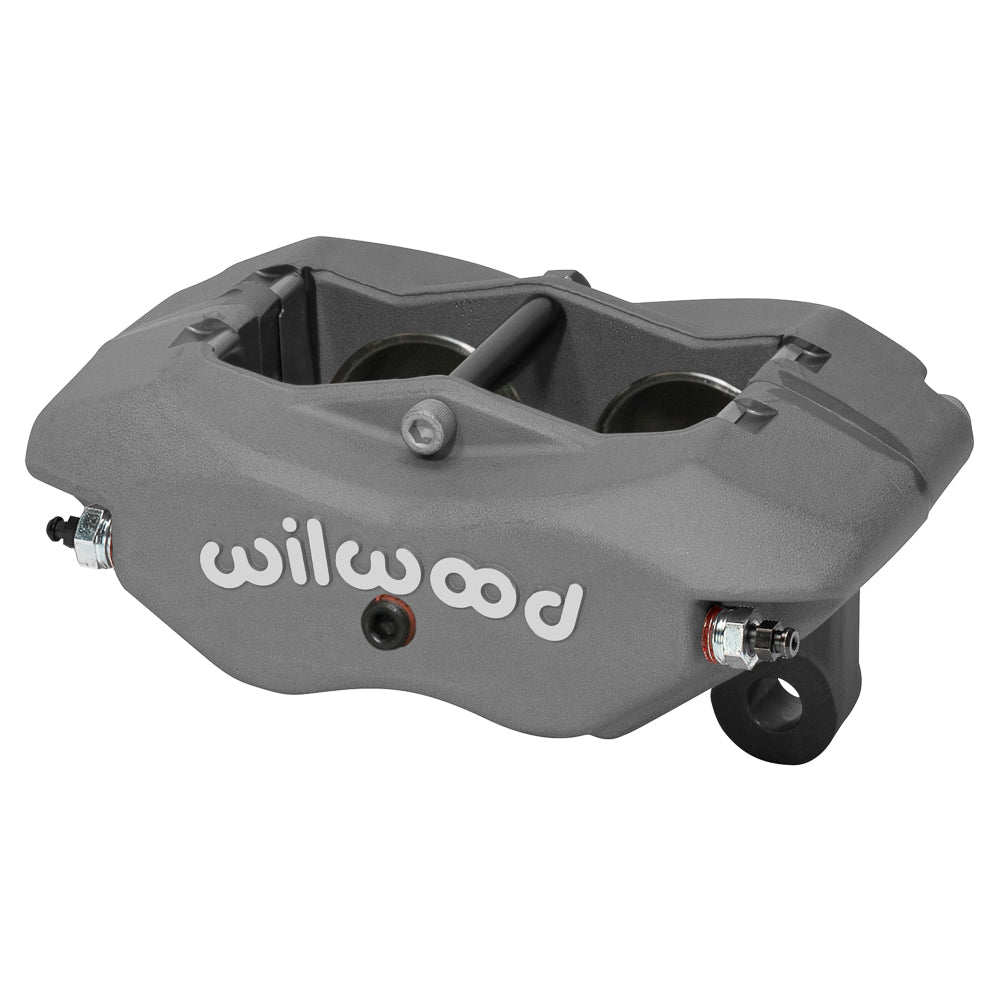

The side-inlet 0.81-inch-width FNDL has four 1.75-inch stainless pistons in a forged narrow body. Its connection arrangement changes the hydraulic line access without changing the 4.80-square-inch effective piston area. Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Bill Wood founded the company in 1977; it is based in Camarillo, California, and its component range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines.
Technical Details
- Manufacturer part number: 120-11572-SI. Component: Forged Narrow Dynalite caliper.
- Supply: one brake caliper, not a complete axle brake kit. Match the mating rotor, pads, bracket and connection hardware to the installation.
- 3.50-inch lug mounting pattern, universal; mounting height 2.85 inches and hole size 0.45 inch.
- Caliper weight: approximately 4.1 lb.
- Piston dust boots: not fitted.
- The rotor channel is specified for 0.81-inch nominal width. Rotor outside diameter: 11.75 to 12.72 inches. Specified rotor-width limits: 0.75–0.81 inch.
- Type III anodize finish on a forged aluminum caliper body.
- Brake pad profile 7816; 7216; select friction material for the actual operating conditions.
- Hydraulic inlet thread: 1/8-27 NPT. Use a fitting with the correct thread and sealing seat.
- 4 stainless steel pistons with 1.75-inch bore diameter. The specified effective area is 4.80 sq in.
Fitment & Compatibility
Verify the side fitting clears the bracket and wheel throughout the installation. Match 3.50-inch lug spacing and the 7816/7216 pad geometry to the actual rotor.
PMB Performance brings more than 20 years of experience to brake-part selection. Include the existing caliper, rotor and mounting details when requesting help with this assembly.
