Product details

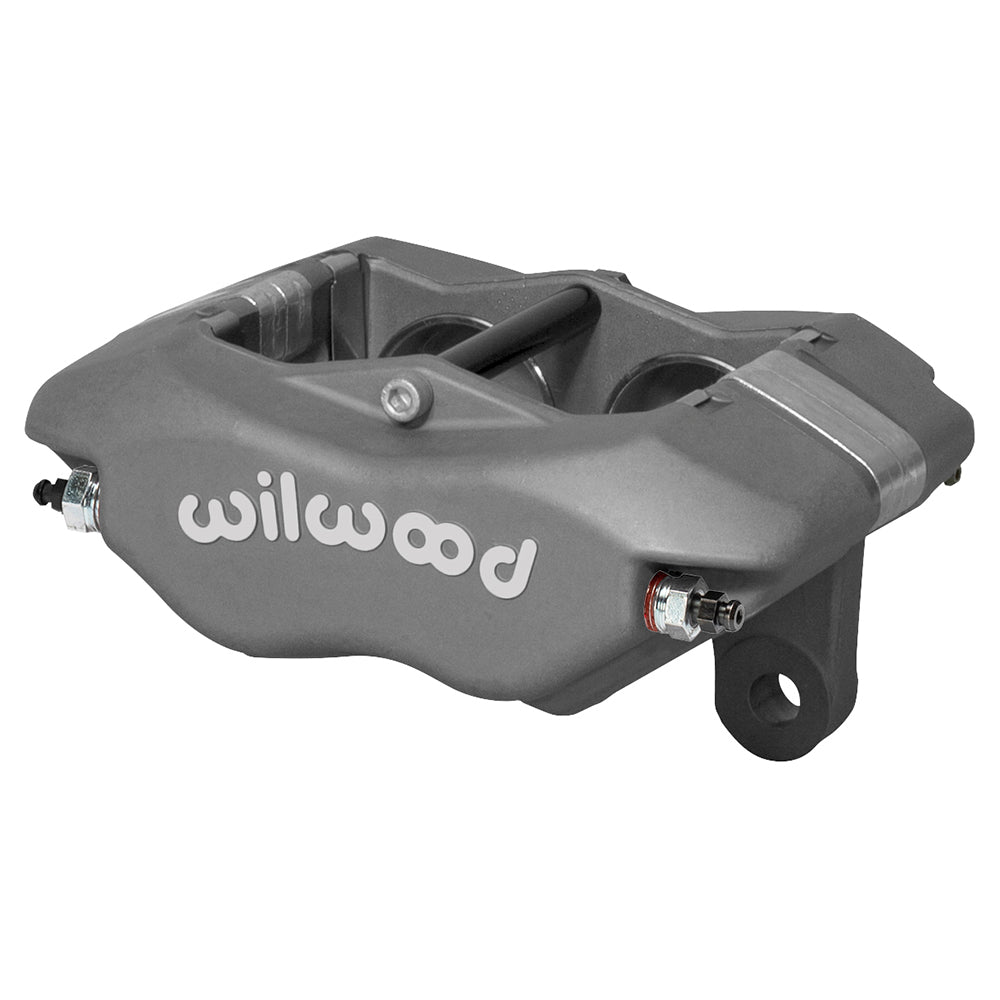

For a nominal 0.81-inch rotor width, this anodized Narrow Dynalite provides four equal 1.75-inch stainless pistons. The forged body uses internal crossovers and the 7816 or 7216 pad arrangement. With a range spanning calipers, brake rotors, master cylinders, valves, fittings and brake lines, Wilwood Engineering designs and manufactures complete disc braking systems and their components. Bill Wood founded the Camarillo, California-based company in 1977 for a market now covering motorsport, street-performance and specialized applications.
Technical Details
- Manufacturer part number: 120-11572. Component: Forged Narrow Dynalite caliper.
- Supply: one brake caliper, not a complete axle brake kit. Match the mating rotor, pads, bracket and connection hardware to the installation.
- Rotor compatibility: nominal width 0.81 inch; diameter 11.75–12.72 inches. Specified rotor-width limits: 0.75–0.81 inch.
- Hydraulic inlet thread: 1/8-27 NPT. Use a fitting with the correct thread and sealing seat.
- Piston dust boots: not fitted.
- Pistons: 4 stainless steel; bore specification: 1.75 inches. Effective piston area: 4.80 sq in.
- Body: forged aluminum; finish: Type III anodize.
- Compatible brake pad shape: 7816; 7216; choose the required compound for the brake system.
- Mounting: lug, 3.50-inch centers; universal orientation. Mount holes: 0.45 inch; height: 2.85 inches.
- Caliper weight: approximately 4.1 lb.
Fitment & Compatibility
Compare the 4.80-square-inch effective area with the brake circuit. The 3.50-inch lug pattern must be paired with the right rotor offset and pad sweep, not merely a similar-looking bracket.
