Product details

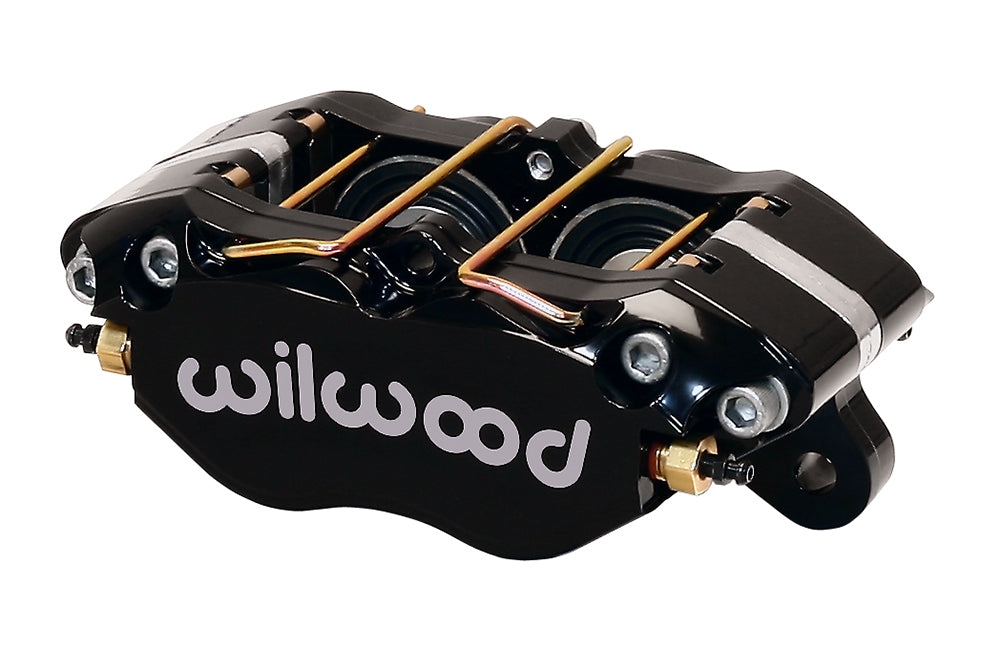

This black Dynapro uses four dust-booted 1.38-inch aluminum pistons for added debris protection. Its forged lug-mount body has a nominal 0.81-inch rotor-width channel and a 3.00-square-inch effective area. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. It designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications.
Technical Details
- Manufacturer part number: 120-11481. Component: Dynapro Dust-Boot caliper.
- Supply: one brake caliper, not a complete axle brake kit. Match the mating rotor, pads, bracket and connection hardware to the installation.
- Hydraulic inlet thread: 1/8-27 NPT. Use a fitting with the correct thread and sealing seat.
- Piston dust boots: included.
- Body: forged aluminum; finish: Black powder coat.
- Mounting: lug, 5.25-inch centers; universal orientation. Mount holes: 0.39 inch; height: 2.10 inches.
- Rotor compatibility: nominal width 0.81 inch; diameter 10.00–13.06 inches. Specified rotor-width limits: 0.75–0.83 inch.
- Caliper weight: approximately 3.8 lb.
- Pistons: 4 aluminum; bore specification: 1.38 inches. Effective piston area: 3.00 sq in.
- Compatible brake pad shape: 7812; choose the required compound for the brake system.
Fitment & Compatibility
Choose the booted design for the low-to-intermediate temperature role described by Wilwood. Verify the 5.25-inch lugs and 7812 pad sweep rather than substituting an open-piston Dynapro on appearance alone.
