Product details

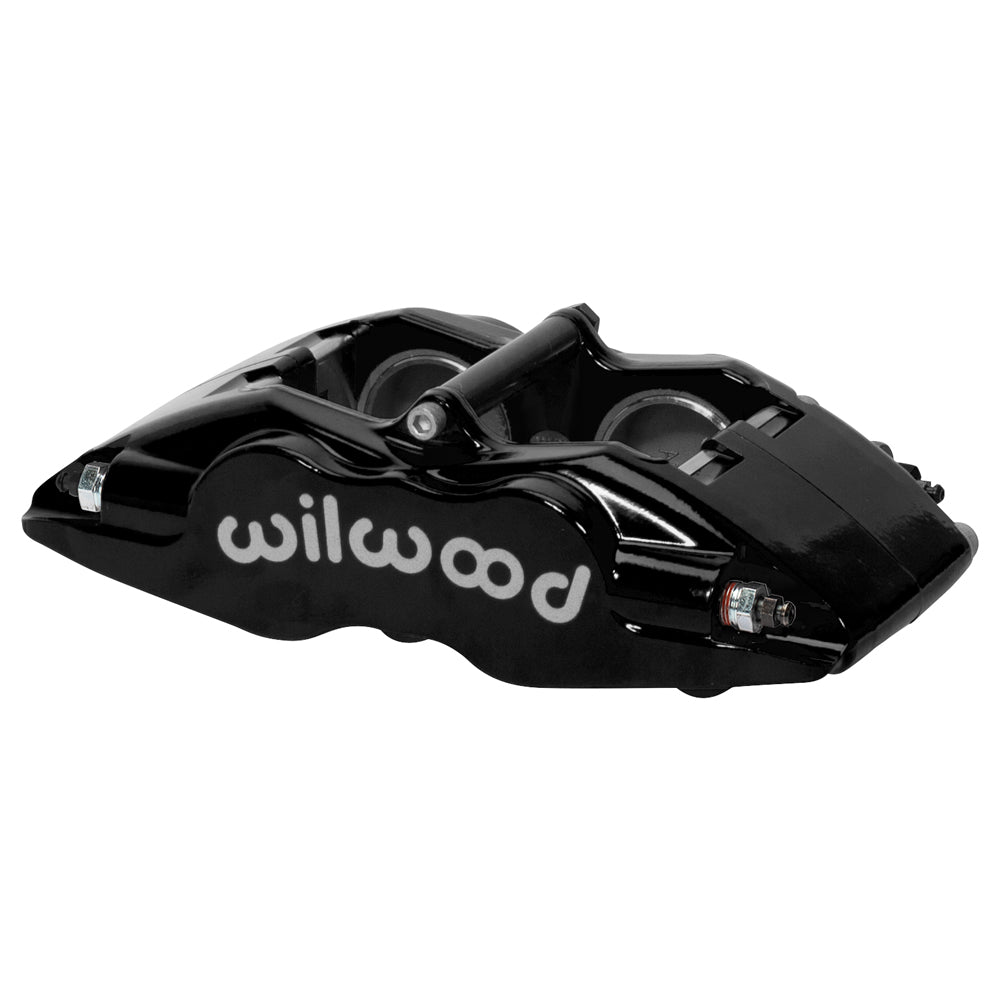

Black powder coat finishes this FSLI caliper for a nominal 1.25-inch rotor width. The four equal 1.62-inch pistons work with the 7420 pad family and provide the specified 4.12-square-inch effective area. Wilwood Engineering is a Camarillo, California-based designer and manufacturer of disc brake systems, founded by Bill Wood in 1977. Calipers, brake rotors, master cylinders, valves, fittings and brake lines form its range for motorsport, street-performance and specialized applications.
Technical Details
- Manufacturer part number: 120-11133-BK. Component: Forged Superlite Internal caliper.
- Supply: one brake caliper, not a complete axle brake kit. Match the mating rotor, pads, bracket and connection hardware to the installation.
- Black powder coat finish on a forged aluminum caliper body.
- The rotor channel is specified for 1.25-inch nominal width. Rotor outside diameter: 11.75 to 13.06 inches. Specified rotor-width limits: 1.19–1.38 inch.
- Hydraulic inlet thread: 1/8-27 NPT. Use a fitting with the correct thread and sealing seat.
- 3.50-inch lug mounting pattern, universal; mounting height 2.85 inches and hole size 0.45 inch.
- 4 stainless steel pistons with 1.62-inch bore diameter. The specified effective area is 4.12 sq in.
- Brake pad profile 7420; select friction material for the actual operating conditions.
- Caliper weight: approximately 5.2 lb.
- Piston dust boots: not fitted.
Fitment & Compatibility
Confirm bracket offset, inlet access and full wheel clearance. A shared Superlite mounting pattern cannot establish whether the rotor is centered in this wider caliper body.
PMB Performance has worked with brake components for over 20 years. Share the required piston sizing, rotor measurements and bracket drawing for help checking the match.
