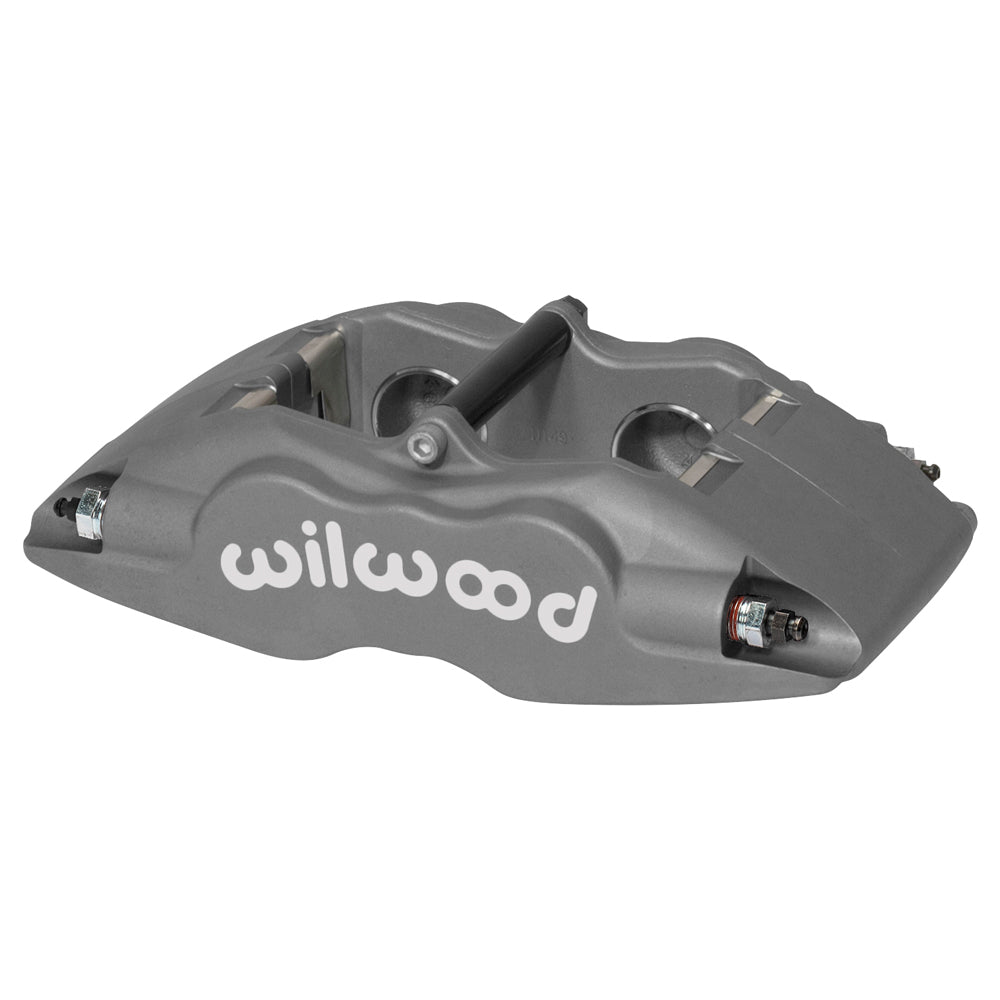

Wilwood FSLI Type III Caliper, 1.25-Inch Rotor Width / Four 1.38-Inch Stainless Pistons: Gray Superlite caliper with white Wilwood lettering, a central bridge bolt and the upper pad opening visible.

Wilwood FSLI Type III Caliper, 1.25-Inch Rotor Width / Four 1.38-Inch Stainless Pistons

SKU: 120-11130

$253.63 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

The anodized wide-channel FSLI pairs four 1.38-inch stainless pistons with a nominal 1.25-inch rotor width. It provides 3.00 square inches of effective piston area without changing to a different pad family. Bill Wood established Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and manufactures disc brake systems, from calipers and brake rotors to master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized use.

Technical Details

  • Manufacturer part number: 120-11130. Component: Forged Superlite Internal caliper.
  • Supply: one brake caliper, not a complete axle brake kit. Match the mating rotor, pads, bracket and connection hardware to the installation.
  • Hydraulic inlet thread: 1/8-27 NPT. Use a fitting with the correct thread and sealing seat.
  • Bracket interface: 3.50-inch lug centers with 0.45-inch holes. Specified mount height: 2.85 inches; orientation: universal.
  • Pad fit is type 7420. Match the pad dimensions and compound to the rotor and intended braking conditions.
  • Bore configuration 1.38 inches across 4 pistons; piston material: stainless steel. Hydraulic effective area: 3.00 square inches.
  • Nominal rotor width 1.25 inch; compatible outside diameter from 11.75 through 13.06 inches. Specified rotor-width limits: 1.19–1.38 inch.
  • Caliper weight: approximately 5.2 lb.
  • Construction and surface: forged aluminum housing finished in Type III anodize.
  • Piston dust boots: not fitted.

Fitment & Compatibility

Choose the mounting offset for this wider body. Confirm the 7420 pad sweep, 11.75–13.06-inch rotor diameter envelope and room for the NPT inlet inside the actual wheel.

With 20+ years of experience, PMB Performance can help compare the actual brake hardware. Supply the caliper number, rotor dimensions and mounting measurements when asking about compatibility.
