Product details

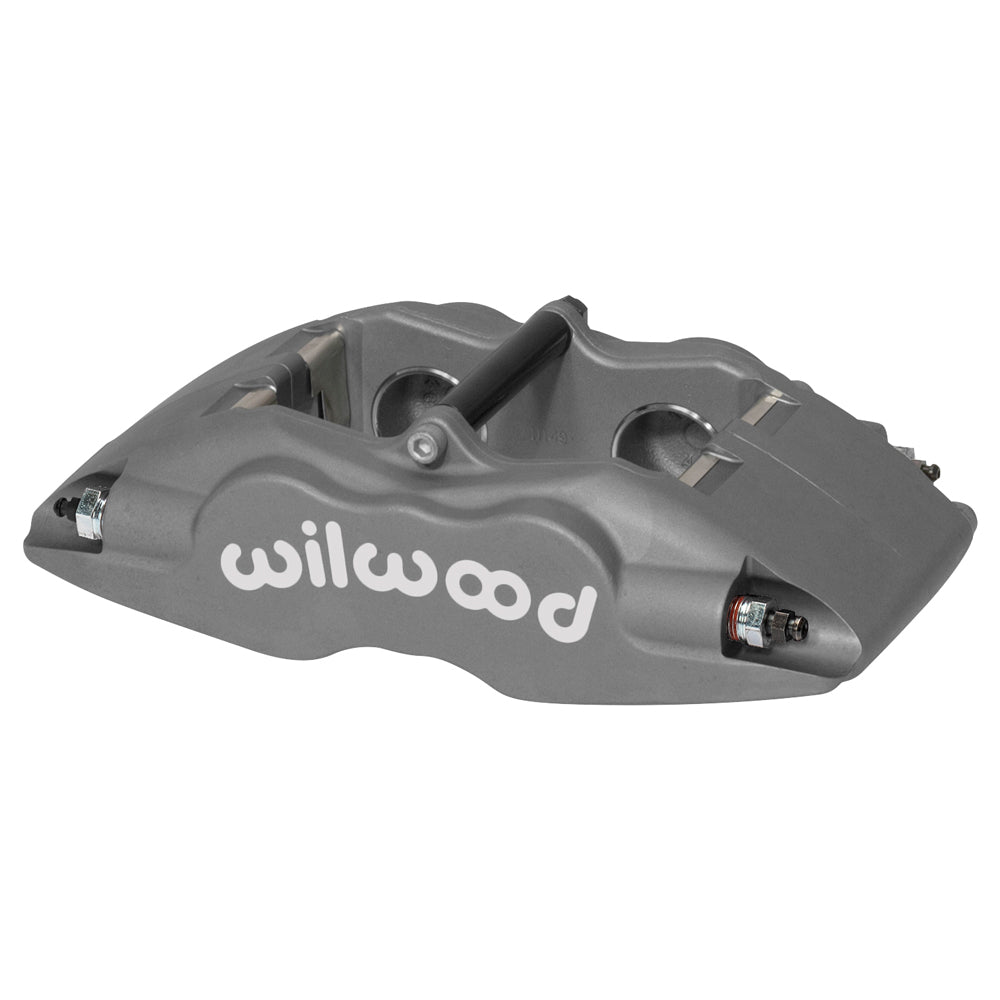

Four equal 1.25-inch stainless pistons give this anodized FSLI its 2.46-square-inch effective area. The forged body is the nominal 0.81-inch rotor-width version, with the Superlite's 7420 pad arrangement and internal fluid crossovers. With a range spanning calipers, brake rotors, master cylinders, valves, fittings and brake lines, Wilwood Engineering designs and manufactures complete disc braking systems and their components. Bill Wood founded the Camarillo, California-based company in 1977 for a market now covering motorsport, street-performance and specialized applications.
Technical Details
- Manufacturer part number: 120-11126. Component: Forged Superlite Internal caliper.
- Supply: one brake caliper, not a complete axle brake kit. Match the mating rotor, pads, bracket and connection hardware to the installation.
- Body: forged aluminum; finish: Type III anodize.
- Rotor compatibility: nominal width 0.81 inch; diameter 11.75–13.06 inches. Specified rotor-width limits: 0.75–0.84 inch.
- Mounting: lug, 3.50-inch centers; universal orientation. Mount holes: 0.45 inch; height: 2.85 inches.
- Pistons: 4 stainless steel; bore specification: 1.25 inches. Effective piston area: 2.46 sq in.
- Caliper weight: approximately 5.2 lb.
- Compatible brake pad shape: 7420; choose the required compound for the brake system.
- Hydraulic inlet thread: 1/8-27 NPT. Use a fitting with the correct thread and sealing seat.
- Piston dust boots: not fitted.
Fitment & Compatibility
Compare the 3.50-inch lug bracket with the rotor's centerline and pad sweep. Do not substitute the same-bore wide-rotor body without checking the lateral mounting offset.
PMB Performance brings more than 20 years of experience to brake-part selection. Include the existing caliper, rotor and mounting details when requesting help with this assembly.
