Product details

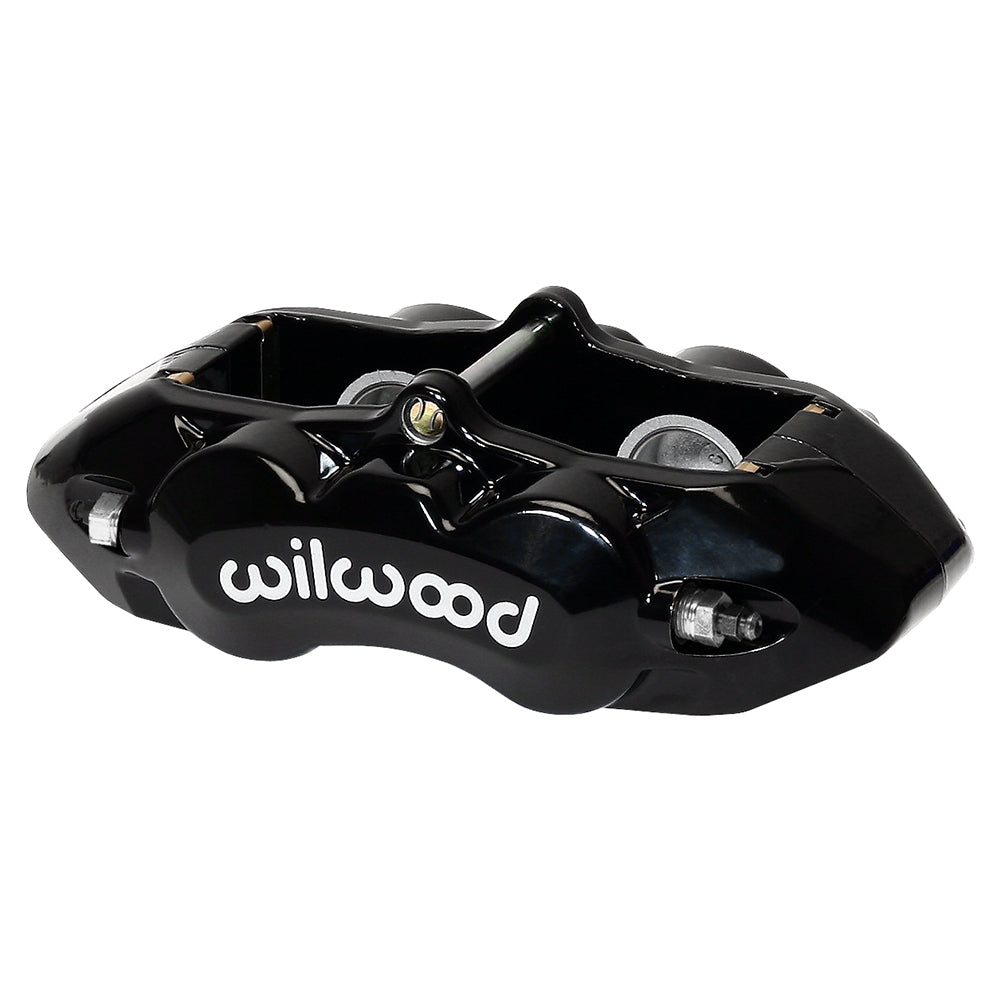

The black rear D8-4 is a replacement caliper for 1965–1982 Chevrolet Corvettes retaining their factory brake arrangement. Its four 1.38-inch pistons provide a 3.00-square-inch effective area, with a forged housing and original-style D8 pad fit. Wilwood Engineering is a Camarillo, California-based designer and manufacturer of disc brake systems, founded by Bill Wood in 1977. Calipers, brake rotors, master cylinders, valves, fittings and brake lines form its range for motorsport, street-performance and specialized applications.
Technical Details
- Manufacturer part number: 120-10526-BK. Component: D8-4 Caliper Rear.
- Supply: one brake caliper, not a complete axle brake kit. Match the mating rotor, pads, bracket and connection hardware to the installation.
- Brake pad profile D8; select friction material for the actual operating conditions.
- Piston dust boots: not fitted.
- The rotor channel is specified for 1.25-inch nominal width. Rotor outside diameter: 11.75 inches. Specified rotor-width limits: 1.17–1.25 inch.
- 4 stainless steel pistons with 1.38-inch bore diameter. The specified effective area is 3.00 sq in.
- 5.16-inch lug mounting pattern, universal; mounting height 2.99 inches and hole size 0.47 inch.
- Hydraulic inlet thread: 1/8-27 NPT. Use a fitting with the correct thread and sealing seat.
- Black powder coat finish on a forged aluminum caliper body.
- Caliper weight: approximately 6.3 lb.
Fitment & Compatibility
The rear bracket must match the 5.16-inch lug centers. A matching flex line is required for the 1/8-27 NPT inlet, and the wheel must clear the caliper across the entire assembly rather than only at its outside diameter.
