Product details

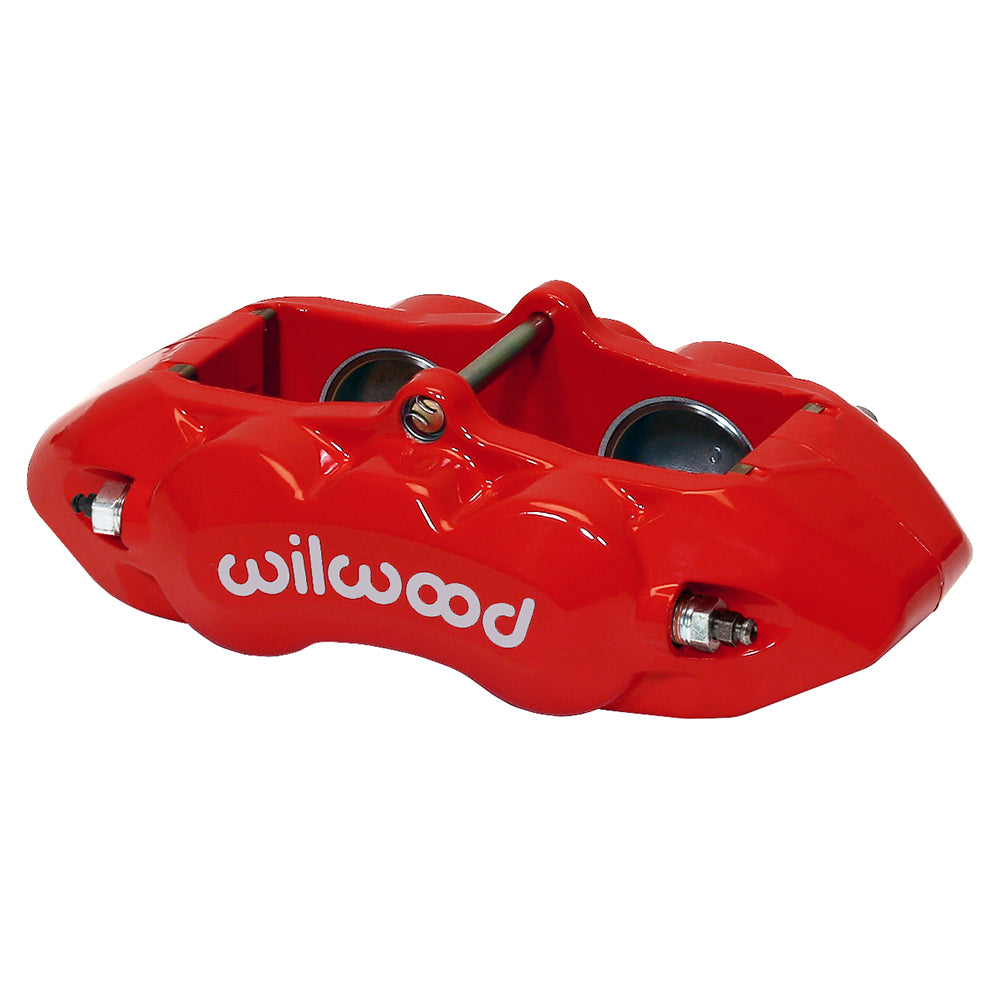

Red powder coat distinguishes this D8-4 front caliper for the 1965–1982 Chevrolet Corvette. The four-piston layout matches the original front caliper's hydraulic volume while replacing its cast iron body with forged aluminum. This component comes from Wilwood Engineering, established in 1977 by Bill Wood and based in Camarillo, California. Its disc brake design and manufacturing work includes calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized systems.
Technical Details
- Manufacturer part number: 120-10525-RD. Component: D8-4 Caliper Front.
- Supply: one brake caliper, not a complete axle brake kit. Match the mating rotor, pads, bracket and connection hardware to the installation.
- Nominal rotor width 1.25 inch; compatible outside diameter 11.75 inches. Specified rotor-width limits: 1.17–1.25 inch.
- Pad fit is type D8. Match the pad dimensions and compound to the rotor and intended braking conditions.
- Piston dust boots: not fitted.
- Construction and surface: forged aluminum housing finished in Red powder coat.
- Hydraulic inlet thread: 1/8-27 NPT. Use a fitting with the correct thread and sealing seat.
- Bore configuration 1.88 inches across 4 pistons; piston material: stainless steel. Hydraulic effective area: 5.56 square inches.
- Bracket interface: 7.00-inch lug centers with -inch holes. Specified mount height: 1.83 inches; orientation: universal.
- Caliper weight: approximately 6.3 lb.
Fitment & Compatibility
Retain the specified stock rotor and D8 brake pad geometry. Check the 7.00-inch lug mounting, required 1/8-27 NPT flex-line connection and clearance to steel or alloy wheels, including any existing wheel spacer.
For a replacement or custom installation, send PMB Performance the brake dimensions and existing component identification. Our 20+ years of experience can help narrow down the correct combination.
