Product details

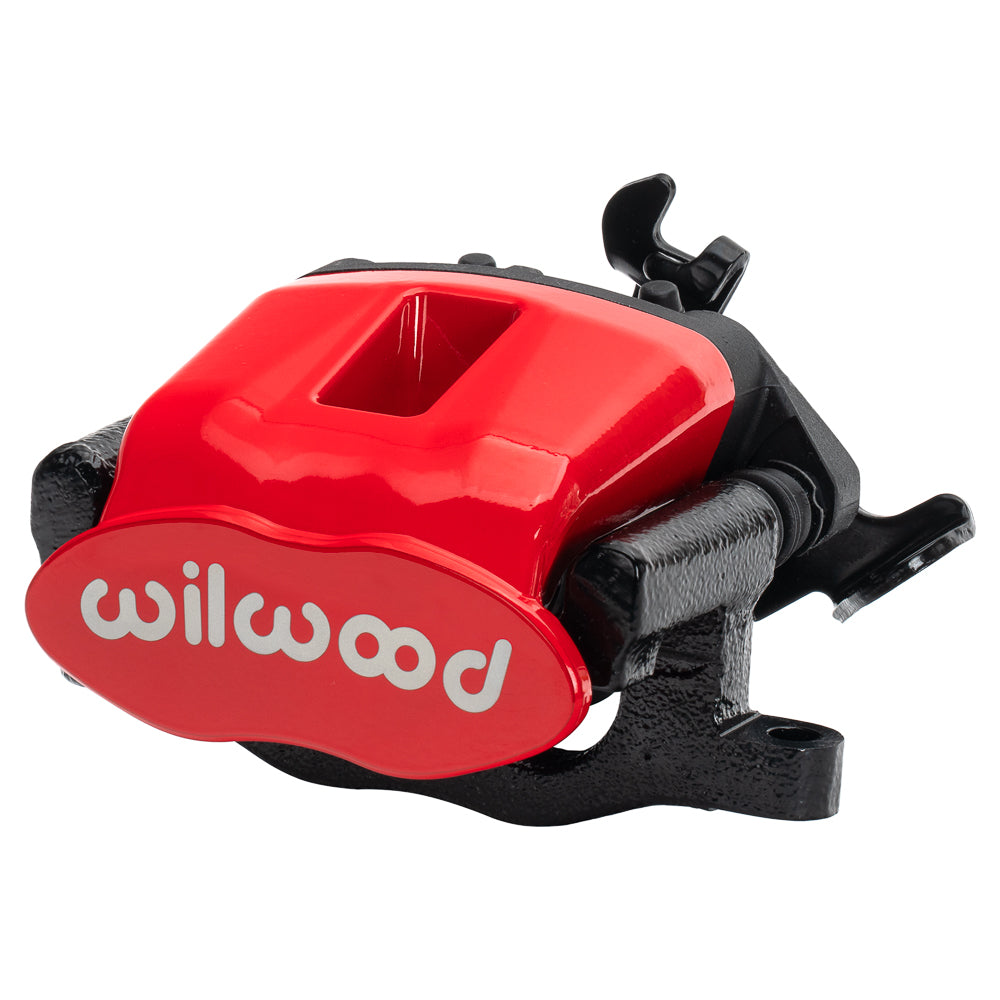

This right-hand red CPB uses one 41mm piston to apply the service brake and a separate cable actuator for the parking function. It is the nominal 0.81-inch rotor width version, supplied as an individual rear caliper rather than a complete brake package. Founded in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering designs and manufactures disc braking systems. Its motorsport, street-performance and specialized range covers calipers, brake rotors, master cylinders, valves, fittings and brake lines, selected as parts of a complete system.
Technical Details
- Manufacturer part number: 120-10113-RD. Component: Combination Parking Brake caliper.
- Supply: one CPB caliper assembly with integrated cable parking actuation. Rotor, line and parking-cable compatibility must be checked as part of the complete rear brake arrangement.
- Caliper weight: approximately 6.1 lb.
- Brake pad profile D340; select friction material for the actual operating conditions.
- Red powder coat finish on an aluminum / steel caliper body.
- 5.98-inch radial mounting pattern, right hand; mounting height 2.08 inches and hole size 0.39 inch.
- The rotor channel is specified for 0.81-inch nominal width. Rotor outside diameter: 11.00 to 13.00 inches. Specified rotor-width limits: 0.75–0.81 inch.
- Hydraulic inlet thread: M10 x 1.00. Use a fitting with the correct thread and sealing seat.
- 1 steel piston with 1.62-inch bore diameter. The specified effective area is 2.06 sq in.
- Piston dust boots: included.
Fitment & Compatibility
Compare the bracket, rotor width and cable-end design with this assembly before ordering. A compatible 11.00–13.00-inch rotor still needs the correct offset and wheel clearance.
