Product details

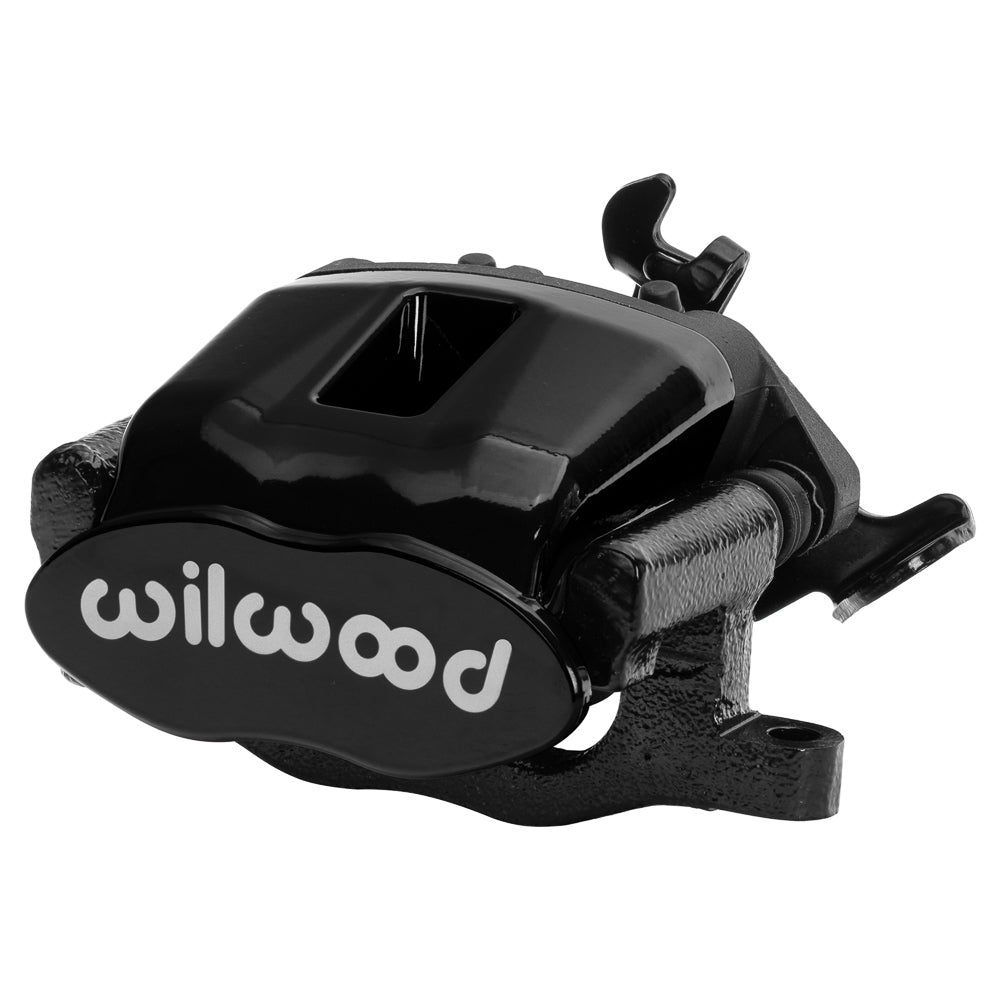

A nominal 0.81-inch rotor width and a 41mm piston characterize this standard black right-hand CPB caliper. The floating design supplies hydraulic rear braking and incorporates a cable-operated mechanical parking lock for a suitable disc conversion. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. It designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications.
Technical Details
- Manufacturer part number: 120-10113-BK. Component: Combination Parking Brake caliper.
- Supply: one CPB caliper assembly with integrated cable parking actuation. Rotor, line and parking-cable compatibility must be checked as part of the complete rear brake arrangement.
- Hydraulic inlet thread: M10 x 1.00. Use a fitting with the correct thread and sealing seat.
- Body: aluminum / steel; finish: Black powder coat.
- Rotor compatibility: nominal width 0.81 inch; diameter 11.00–13.00 inches. Specified rotor-width limits: 0.75–0.81 inch.
- Compatible brake pad shape: D340; choose the required compound for the brake system.
- Pistons: 1 steel; bore specification: 1.62 inches. Effective piston area: 2.06 sq in.
- Caliper weight: approximately 6.1 lb.
- Piston dust boots: included.
- Mounting: radial, 5.98-inch centers; right hand orientation. Mount holes: 0.39 inch; height: 2.08 inches.
Fitment & Compatibility
Plan the rear mounting bracket around 5.98-inch radial centers and the rotor's actual hat offset. Cable pull and hydraulic hose routing must suit this right-hand assembly, with the bleeder positioned for proper air evacuation.
