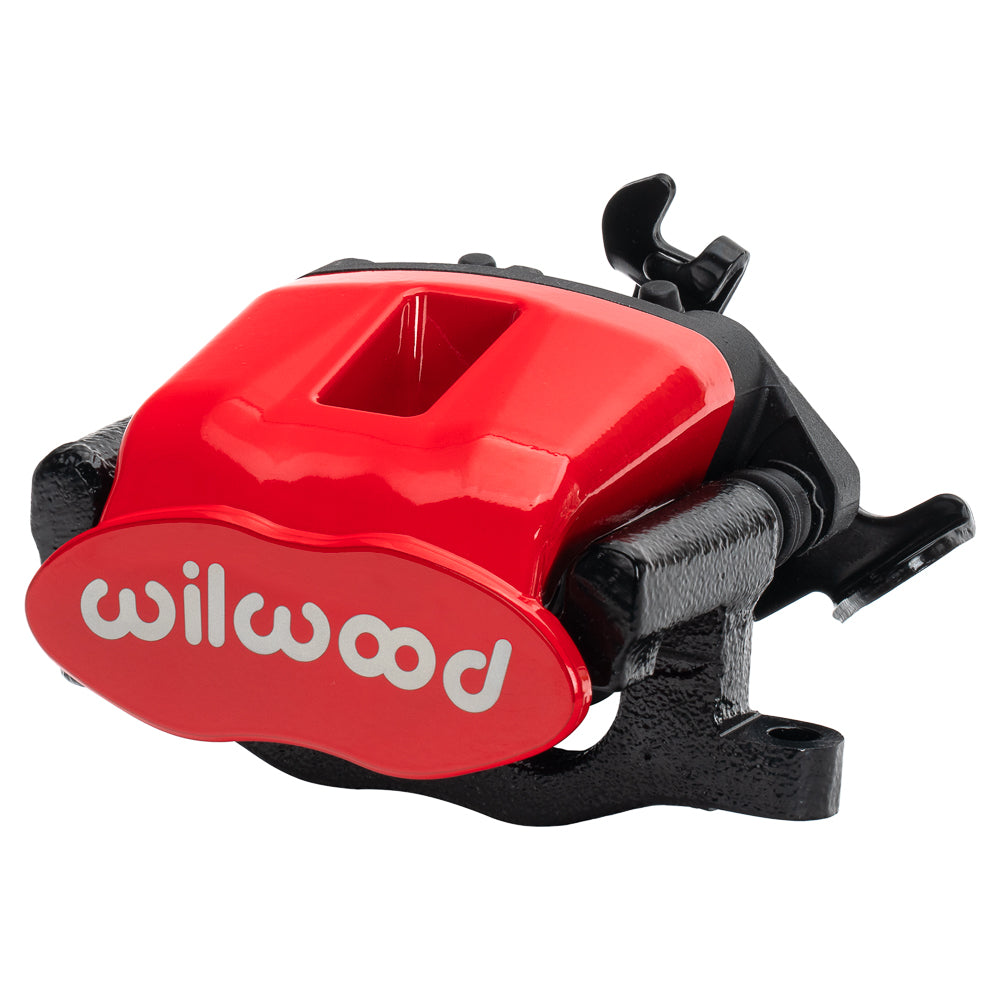

Wilwood Red CPB Position 13 Right Rear Combination Brake Caliper, 0.81-Inch Rotor Width: Red CPB assembly with white lettering and the lever extending behind the dark bracket.

Wilwood Red CPB Position 13 Right Rear Combination Brake Caliper, 0.81-Inch Rotor Width

SKU: 120-10113-13-RD

$315.52 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

This red right-hand CPB is the Position 13 rear-caliper configuration. It uses hydraulic pressure for normal braking and a mechanical parking lock, with one 41mm piston working over a nominal 0.81-inch rotor width. For motorsport, street-performance and specialized braking applications, Wilwood Engineering designs and manufactures calipers, brake rotors, master cylinders, valves, fittings and brake lines. The disc brake company was founded by Bill Wood in 1977 and is based in Camarillo, California.

Technical Details

  • Manufacturer part number: 120-10113-13-RD. Component: Combination Parking Brake caliper.
  • Supply: one CPB caliper assembly with integrated cable parking actuation. Rotor, line and parking-cable compatibility must be checked as part of the complete rear brake arrangement.
  • Piston dust boots: included.
  • Nominal rotor width 0.81 inch; compatible outside diameter from 11.00 through 13.00 inches. Specified rotor-width limits: 0.75–0.81 inch.
  • Pad fit is type D340. Match the pad dimensions and compound to the rotor and intended braking conditions.
  • Bore configuration 1.62 inches across 1 piston; piston material: steel. Hydraulic effective area: 2.06 square inches.
  • Construction and surface: aluminum / steel housing finished in Red powder coat.
  • Caliper weight: approximately 6.1 lb.
  • Hydraulic inlet thread: M10 x 1.00. Use a fitting with the correct thread and sealing seat.
  • Bracket interface: 5.98-inch radial centers with 0.39-inch holes. Specified mount height: 2.08 inches; orientation: right hand.

Fitment & Compatibility

Match the exact actuator arrangement, not just the right-hand designation. Bracket spacing is 5.98 inches; check rotor placement, M10 x 1.00 hose connection and a cable end that operates and releases the parking lock fully.

PMB Performance has worked with brake components for over 20 years. Share the required piston sizing, rotor measurements and bracket drawing for help checking the match.
