Product details

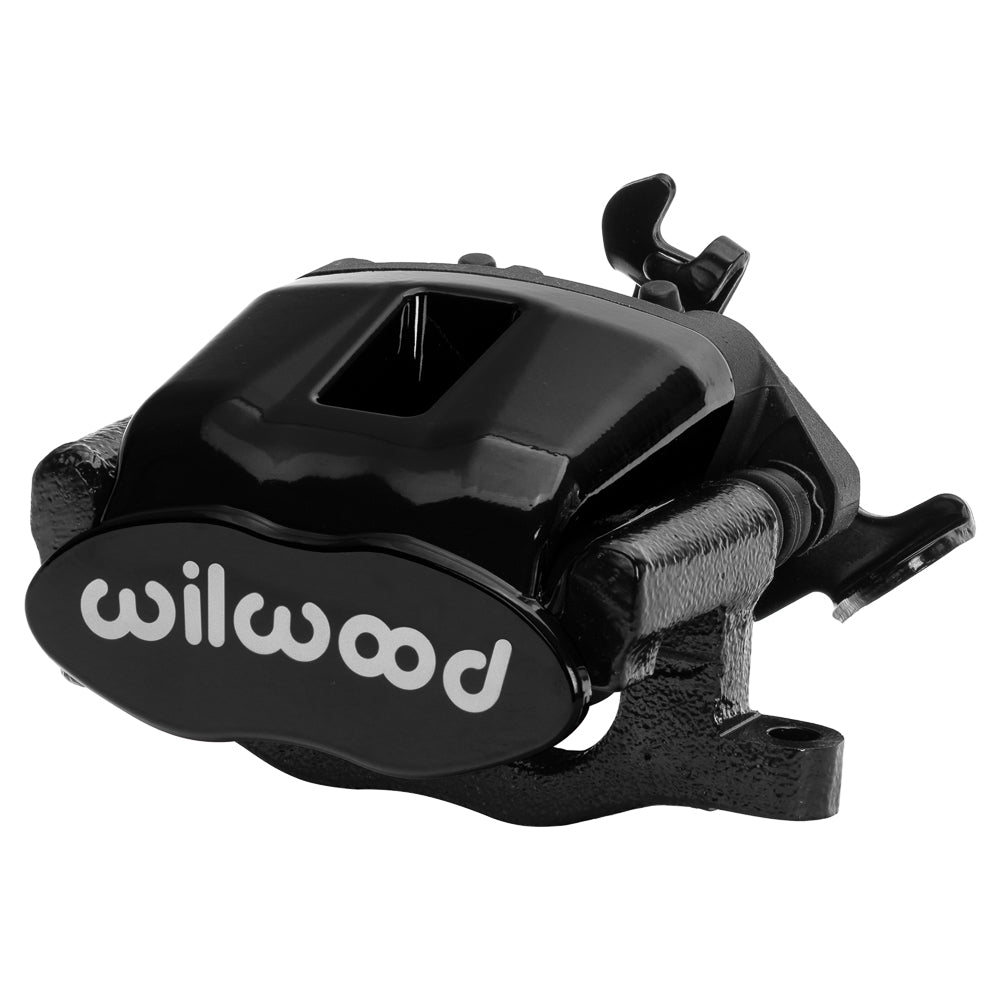

The right-hand Position 13 CPB brings hydraulic service braking and cable parking operation together in a black rear caliper. A nominal 0.81-inch rotor-width channel and 41mm piston define its basic brake dimensions; the actuator configuration is a separate purchase check. Wilwood Engineering is a Camarillo, California-based designer and manufacturer of disc brake systems, founded by Bill Wood in 1977. Calipers, brake rotors, master cylinders, valves, fittings and brake lines form its range for motorsport, street-performance and specialized applications.
Technical Details
- Manufacturer part number: 120-10113-13-BK. Component: Combination Parking Brake caliper.
- Supply: one CPB caliper assembly with integrated cable parking actuation. Rotor, line and parking-cable compatibility must be checked as part of the complete rear brake arrangement.
- Piston dust boots: included.
- 1 steel piston with 1.62-inch bore diameter. The specified effective area is 2.06 sq in.
- The rotor channel is specified for 0.81-inch nominal width. Rotor outside diameter: 11.00 to 13.00 inches. Specified rotor-width limits: 0.75–0.81 inch.
- Brake pad profile D340; select friction material for the actual operating conditions.
- Caliper weight: approximately 6.1 lb.
- 5.98-inch radial mounting pattern, right hand; mounting height 2.08 inches and hole size 0.39 inch.
- Black powder coat finish on an aluminum / steel caliper body.
- Hydraulic inlet thread: M10 x 1.00. Use a fitting with the correct thread and sealing seat.
Fitment & Compatibility
Verify the Position 13 arrangement directly against the required installation. The radial bracket uses 5.98-inch centers, and both the rotor offset and cable path need clearance throughout operation.
PMB Performance has worked with brake components for over 20 years. Share the required piston sizing, rotor measurements and bracket drawing for help checking the match.
