Product details

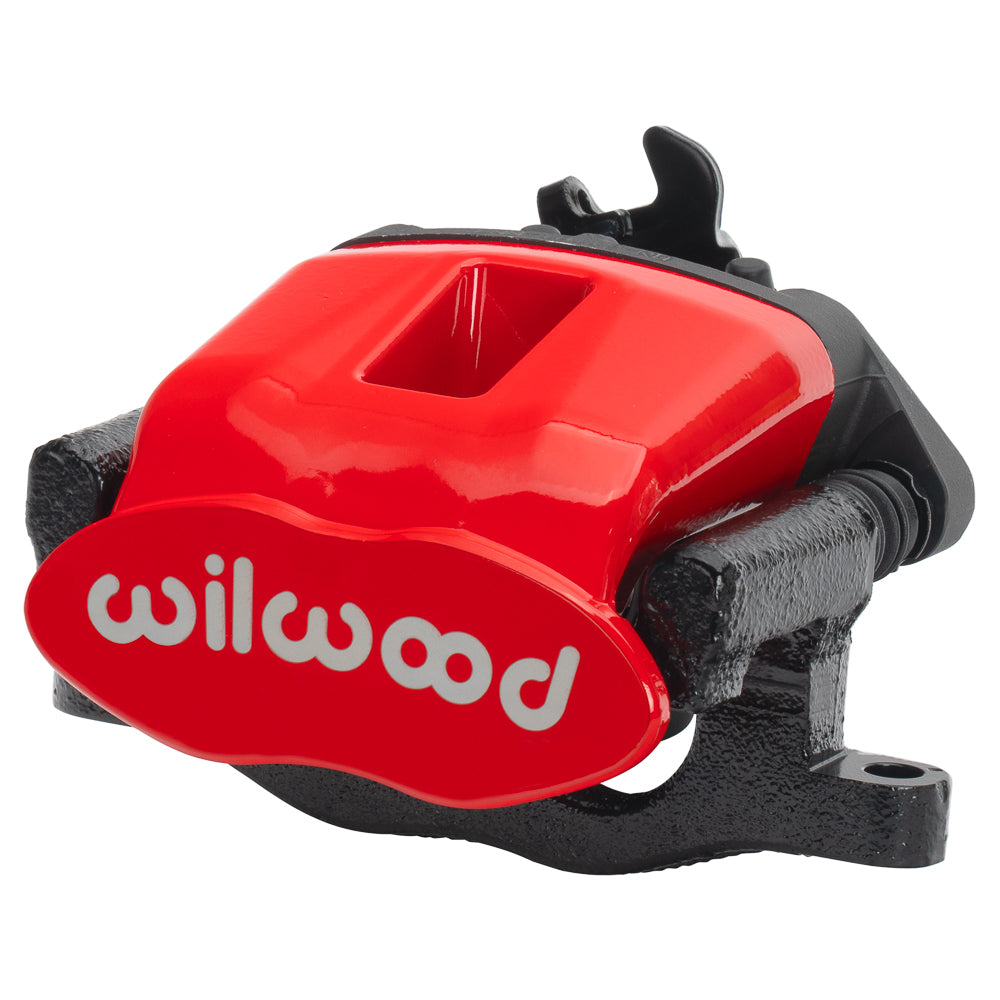

A red powder-coated CPB housing provides the service and parking functions in one left-hand rear caliper. Hydraulic pressure applies the 41mm piston, while the separate mechanical actuator locks the brake through a suitable parking cable. Bill Wood founded Wilwood Engineering in 1977, and the company is based in Camarillo, California. It designs and manufactures disc brake systems and a component range of calipers, brake rotors, master cylinders, valves, fittings and brake lines serving motorsport, street-performance and specialized installations.
Technical Details
- Manufacturer part number: 120-10112-RD. Component: Combination Parking Brake caliper.
- Supply: one CPB caliper assembly with integrated cable parking actuation. Rotor, line and parking-cable compatibility must be checked as part of the complete rear brake arrangement.
- Mounting: radial, 5.98-inch centers; left hand orientation. Mount holes: 0.39 inch; height: 2.08 inches.
- Body: aluminum / steel; finish: Red powder coat.
- Hydraulic inlet thread: M10 x 1.00. Use a fitting with the correct thread and sealing seat.
- Compatible brake pad shape: D340; choose the required compound for the brake system.
- Piston dust boots: included.
- Rotor compatibility: nominal width 0.81 inch; diameter 11.00–13.00 inches. Specified rotor-width limits: 0.75–0.81 inch.
- Pistons: 1 steel; bore specification: 1.62 inches. Effective piston area: 2.06 sq in.
- Caliper weight: approximately 6.1 lb.
Fitment & Compatibility
Check nominal 0.81-inch rotor width together with an 11.00–13.00-inch outside diameter. Verify bracket offset, radial mount centers and cable-release clearance before adapting the caliper to a rear axle.
For a replacement or custom installation, send PMB Performance the brake dimensions and existing component identification. Our 20+ years of experience can help narrow down the correct combination.
