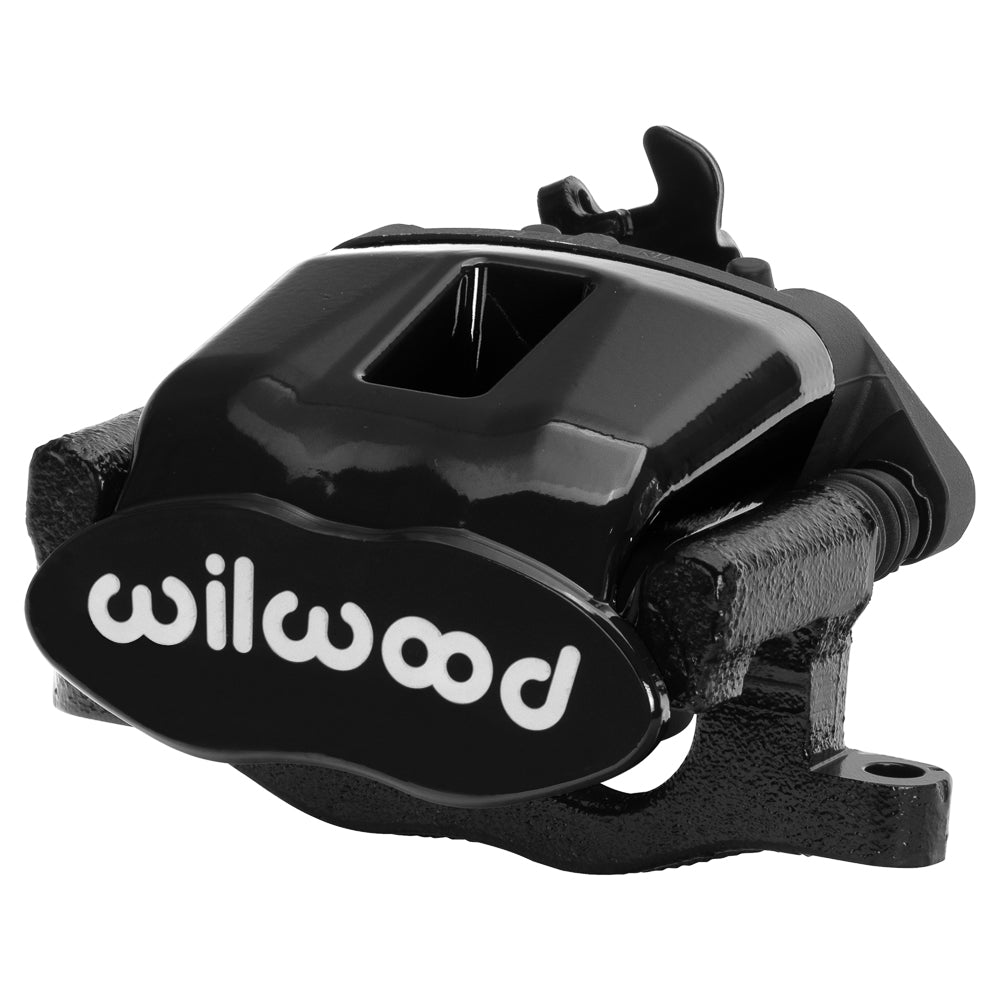

Wilwood Left Rear CPB Caliper, Black Position 13 / 0.81-Inch Rotor Width / 41mm: Black CPB assembly with a white wordmark, dark bracket and actuator projection at the top.

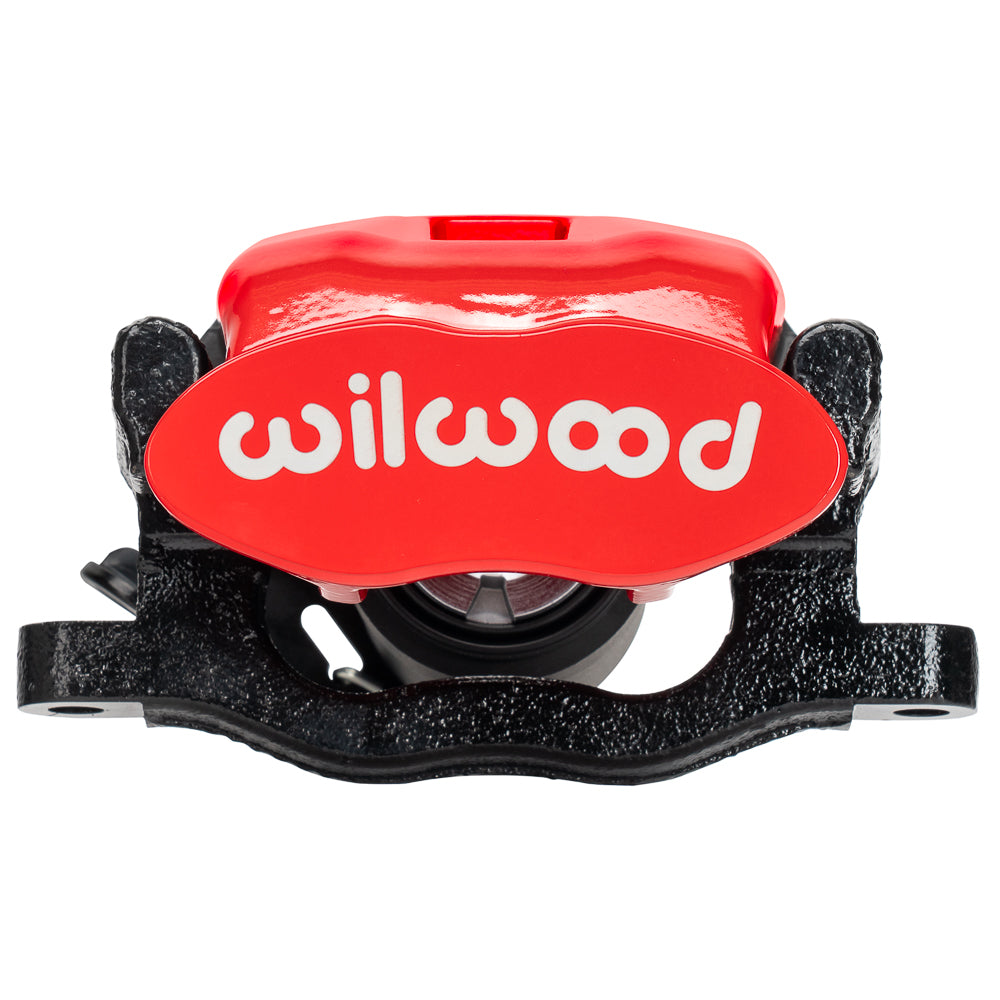

Wilwood Left Rear CPB Caliper, Black Position 13 / 0.81-Inch Rotor Width / 41mm: representative red CPB front face with white lettering above a dark bracket; the pads and central opening can be seen below.

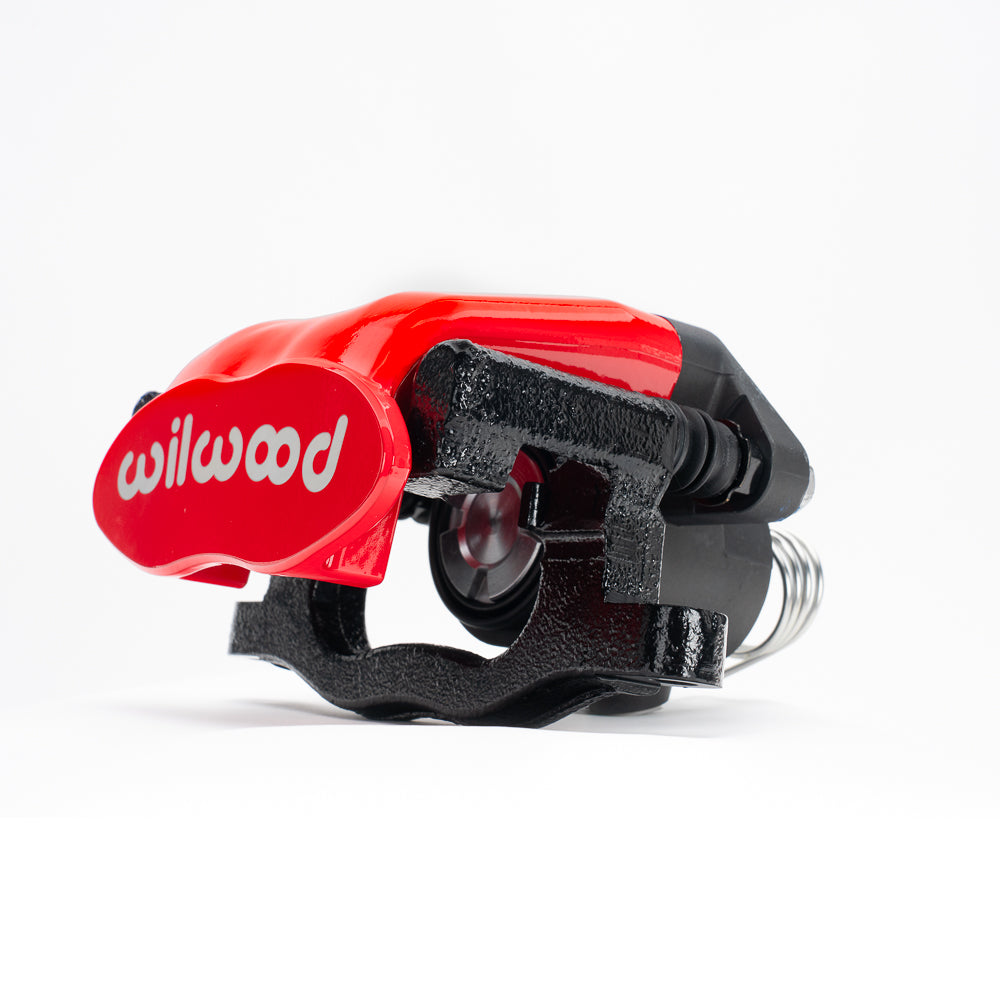

Wilwood Left Rear CPB Caliper, Black Position 13 / 0.81-Inch Rotor Width / 41mm: representative angled red CPB assembly showing the housing, dark mounting bracket and actuator hardware at the back.

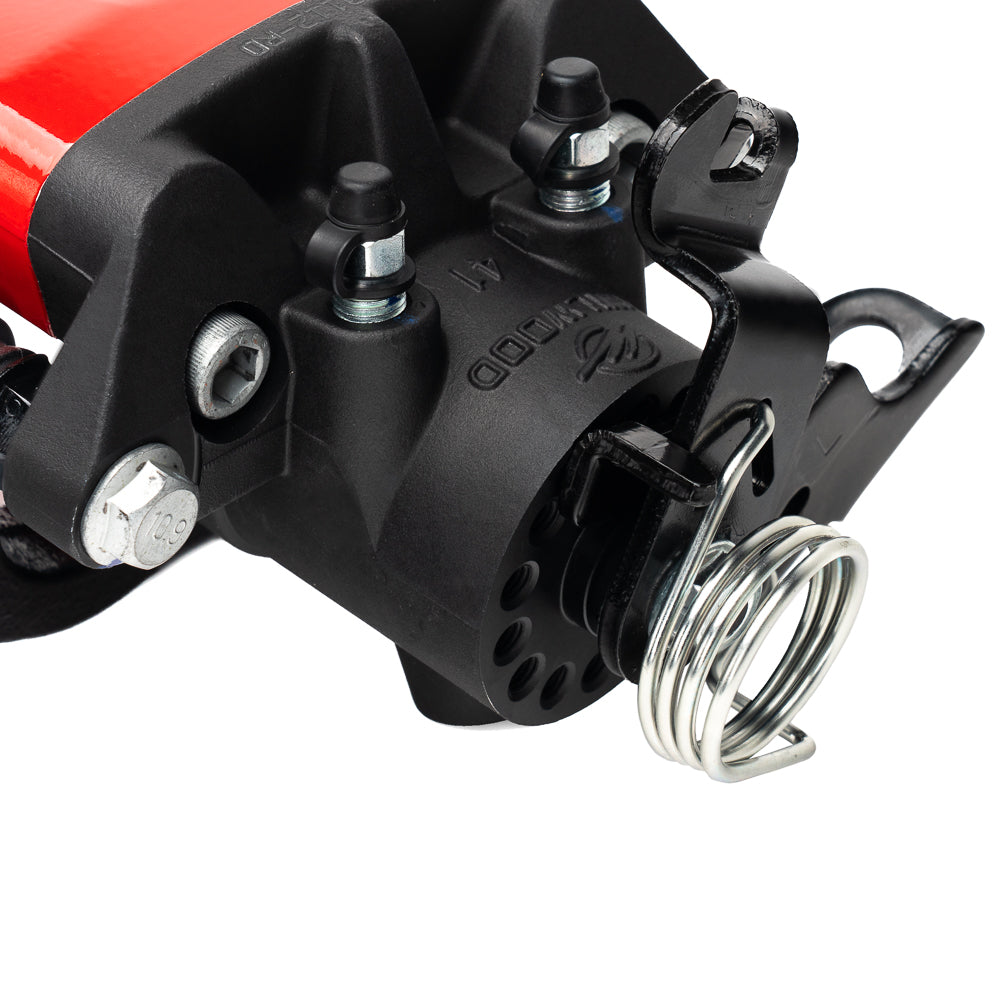

Wilwood Left Rear CPB Caliper, Black Position 13 / 0.81-Inch Rotor Width / 41mm: representative close view of the CPB actuator housing, metal lever, bracket and coiled return spring.
Wilwood Left Rear CPB Caliper, Black Position 13 / 0.81-Inch Rotor Width / 41mm: Black CPB assembly with a white wordmark, dark bracket and actuator projection at the top.
Wilwood Left Rear CPB Caliper, Black Position 13 / 0.81-Inch Rotor Width / 41mm: representative red CPB front face with white lettering above a dark bracket; the pads and central opening can be seen below.
Wilwood Left Rear CPB Caliper, Black Position 13 / 0.81-Inch Rotor Width / 41mm: representative angled red CPB assembly showing the housing, dark mounting bracket and actuator hardware at the back.
Wilwood Left Rear CPB Caliper, Black Position 13 / 0.81-Inch Rotor Width / 41mm: representative close view of the CPB actuator housing, metal lever, bracket and coiled return spring.

Wilwood Left Rear CPB Caliper, Black Position 13 / 0.81-Inch Rotor Width / 41mm

SKU: 120-10112-13-BK

$315.52 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

The black left-hand CPB combines a 41mm hydraulic service piston with a cable-operated parking lock. This is the Position 13 configuration for a nominal 0.81-inch rotor width; its precise actuator arrangement must match the caliper being replaced or the intended rear conversion. With a range spanning calipers, brake rotors, master cylinders, valves, fittings and brake lines, Wilwood Engineering designs and manufactures complete disc braking systems and their components. Bill Wood founded the Camarillo, California-based company in 1977 for a market now covering motorsport, street-performance and specialized applications.

Technical Details

  • Manufacturer part number: 120-10112-13-BK. Component: Combination Parking Brake caliper.
  • Supply: one CPB caliper assembly with integrated cable parking actuation. Rotor, line and parking-cable compatibility must be checked as part of the complete rear brake arrangement.
  • Hydraulic inlet thread: M10 x 1.00. Use a fitting with the correct thread and sealing seat.
  • Compatible brake pad shape: D340; choose the required compound for the brake system.
  • Rotor compatibility: nominal width 0.81 inch; diameter 11.00–13.00 inches. Specified rotor-width limits: 0.75–0.81 inch.
  • Mounting: radial, 5.98-inch centers; left hand orientation. Mount holes: 0.39 inch; height: 2.08 inches.
  • Pistons: 1 steel; bore specification: 1.62 inches. Effective piston area: 2.06 sq in.
  • Caliper weight: approximately 6.1 lb.
  • Body: aluminum / steel; finish: Black powder coat.
  • Piston dust boots: included.

Fitment & Compatibility

Use the correct 5.98-inch radial bracket and check the 11.00–13.00-inch rotor envelope. Confirm the Position 13 actuator configuration before ordering; matching piston size alone does not make the standard and alternate assemblies interchangeable.
