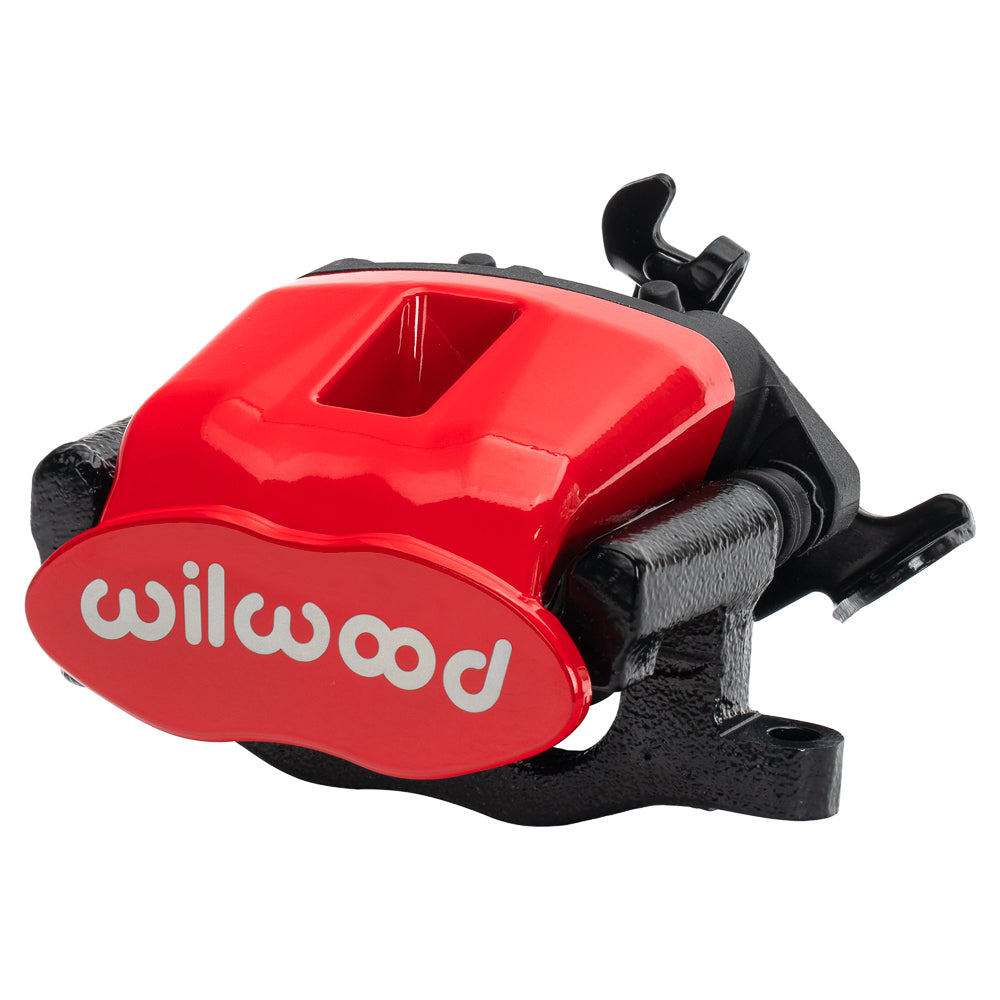

Wilwood CPB Rear Right Caliper for 1.00-Inch-Wide Rotors, Red Hydraulic / Mechanical: Red CPB body and dark bracket with a projecting actuator lever visible behind the housing.

Wilwood CPB Rear Right Caliper for 1.00-Inch-Wide Rotors, Red Hydraulic / Mechanical

SKU: 120-10111-RD

$315.52 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

Red powder coat finishes this right-hand CPB caliper, which performs both rear service-brake and parking-brake duties. A single 41mm piston works in a sliding body; the mechanical lock is actuated independently by the parking cable. Camarillo, California is home to Wilwood Engineering, the disc brake company Bill Wood founded in 1977. Its design and manufacturing range spans calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized brake systems.

Technical Details

  • Manufacturer part number: 120-10111-RD. Component: Combination Parking Brake caliper.
  • Supply: one CPB caliper assembly with integrated cable parking actuation. Rotor, line and parking-cable compatibility must be checked as part of the complete rear brake arrangement.
  • Piston dust boots: included.
  • Construction and surface: aluminum / steel housing finished in Red powder coat.
  • Bore configuration 1.62 inches across 1 piston; piston material: steel. Hydraulic effective area: 2.06 square inches.
  • Hydraulic inlet thread: M10 x 1.00. Use a fitting with the correct thread and sealing seat.
  • Caliper weight: approximately 6.1 lb.
  • Pad fit is type D340. Match the pad dimensions and compound to the rotor and intended braking conditions.
  • Bracket interface: 5.98-inch radial centers with 0.39-inch holes. Specified mount height: 2.08 inches; orientation: right hand.
  • Nominal rotor width 1.00 inch; compatible outside diameter from 11.00 through 13.00 inches. Specified rotor-width limits: 0.94–1.00 inch.

Fitment & Compatibility

Check the nominal 1.00-inch rotor width specification against the actual brake assembly. Mount height, 5.98-inch radial bracket spacing and cable attachment must suit the axle rather than merely its vehicle model.

Ask PMB Performance to check the complete brake arrangement before ordering. Our team brings over 20 years of experience; photographs and measured bracket and rotor dimensions make that check more useful.
