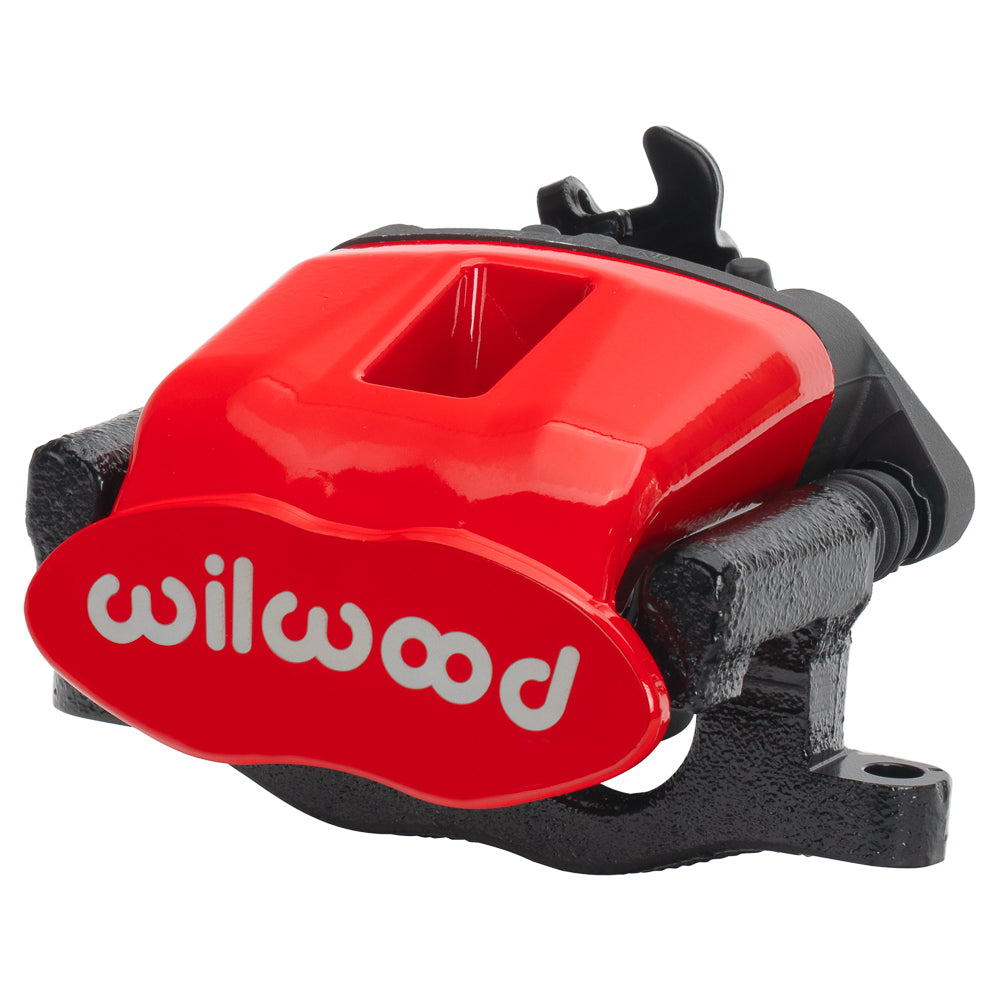

Wilwood Red CPB Rear Left Combination Caliper, 41mm Piston / 1.00-Inch Rotor Width: Red CPB housing with white lettering above a dark mounting bracket and cable actuator.

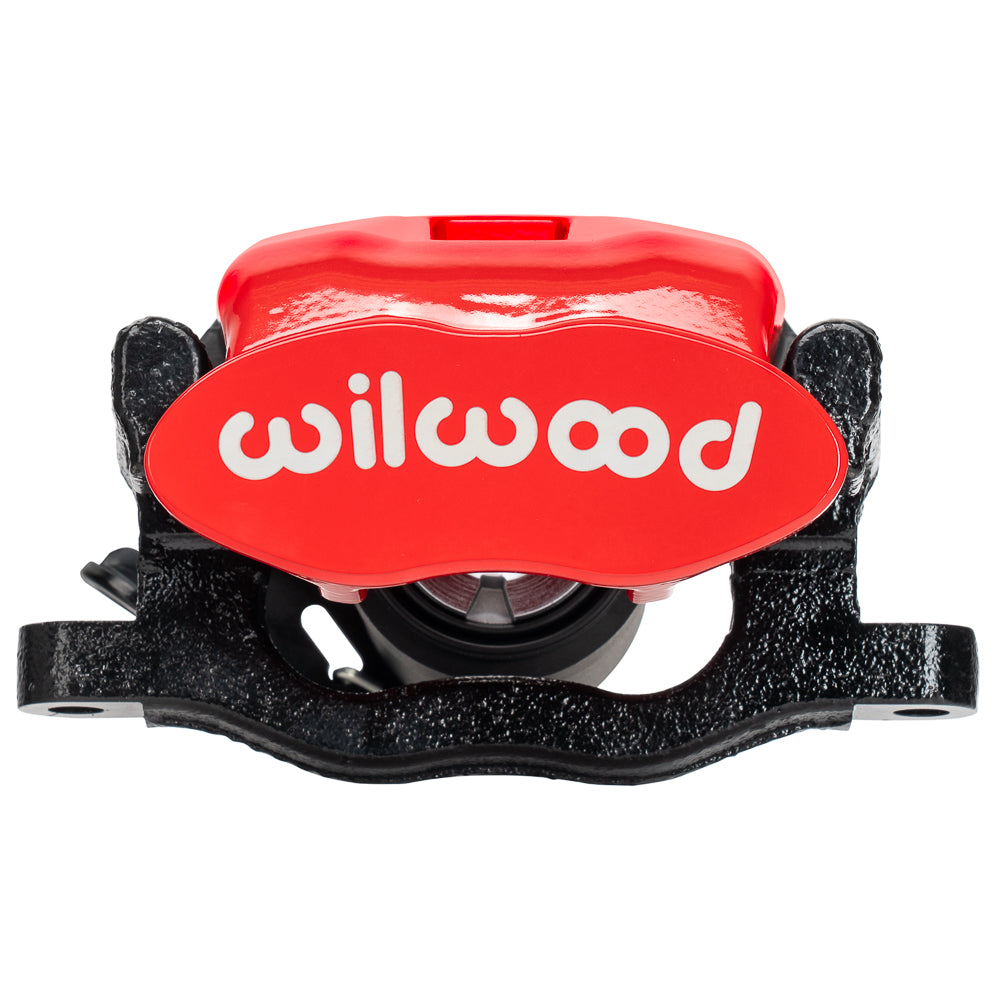

Wilwood Red CPB Rear Left Combination Caliper, 41mm Piston / 1.00-Inch Rotor Width: representative red CPB front face with white lettering above a dark bracket; the pads and central opening can be seen below.

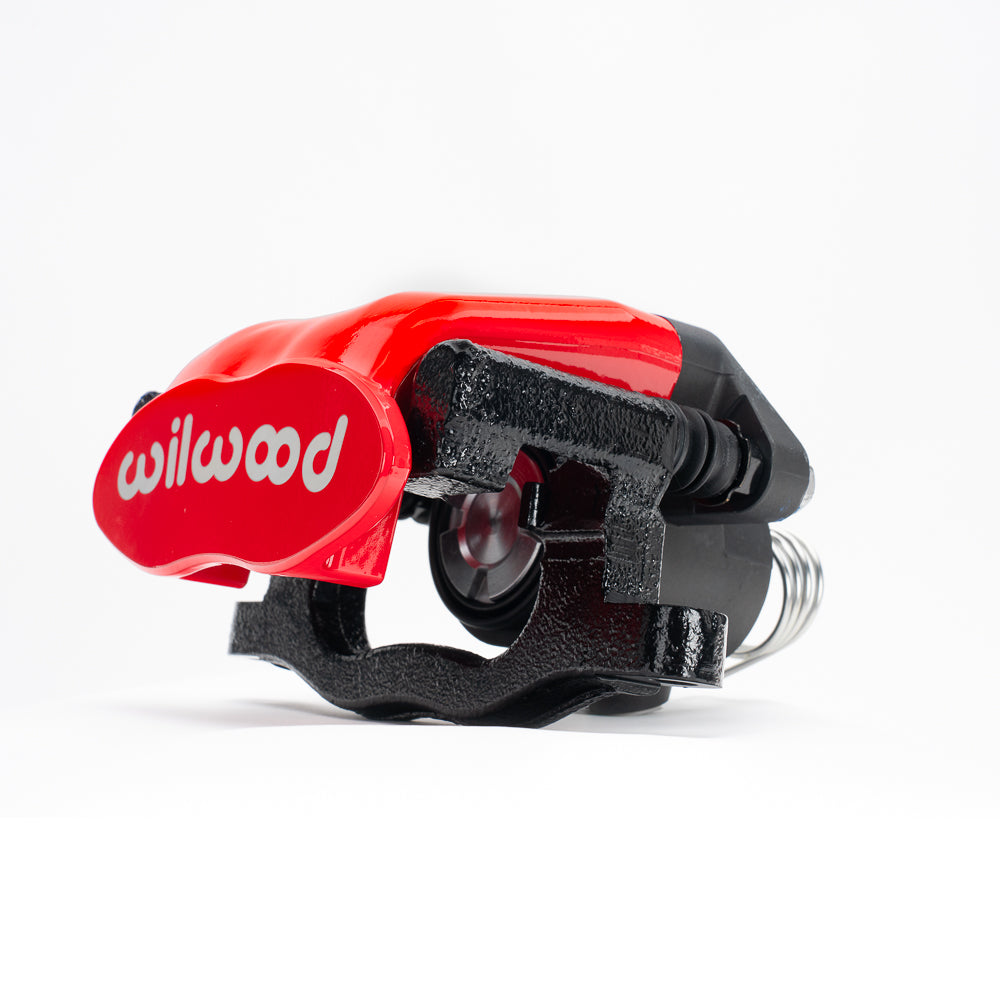

Wilwood Red CPB Rear Left Combination Caliper, 41mm Piston / 1.00-Inch Rotor Width: representative angled red CPB assembly showing the housing, dark mounting bracket and actuator hardware at the back.

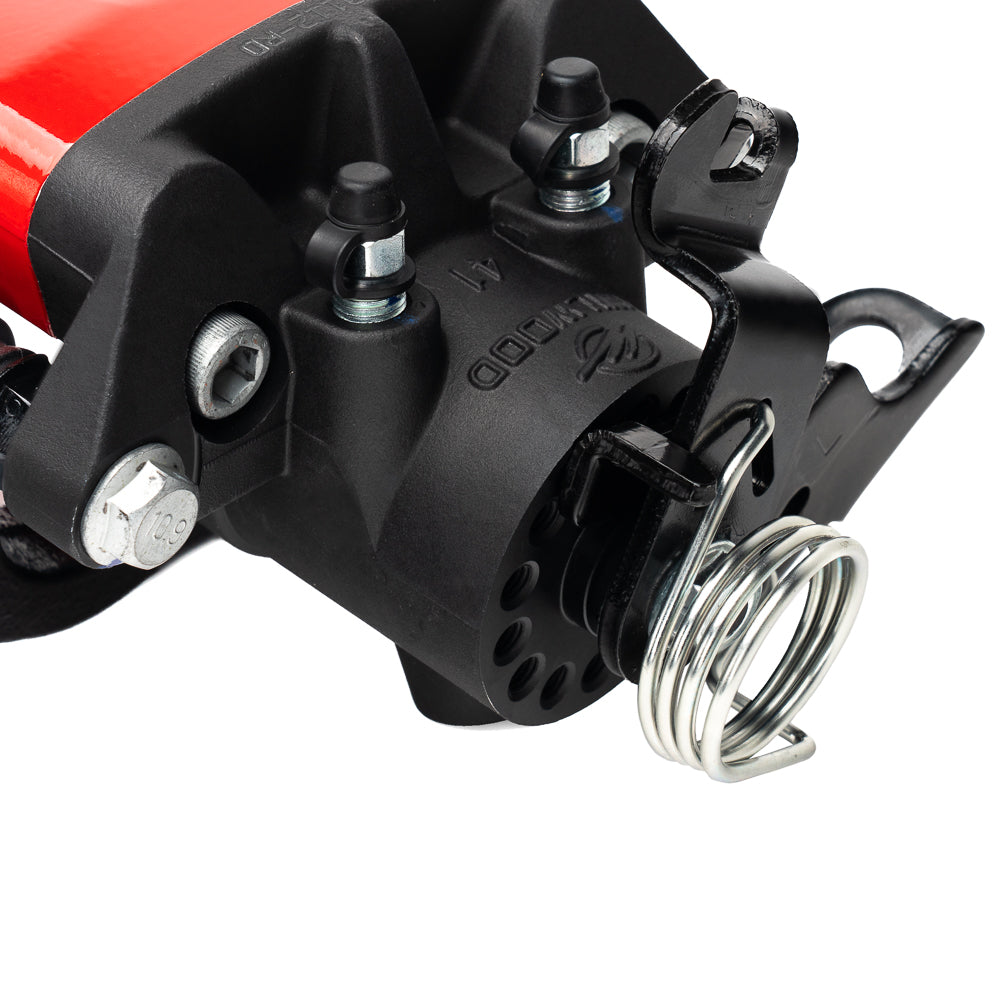

Wilwood Red CPB Rear Left Combination Caliper, 41mm Piston / 1.00-Inch Rotor Width: representative close view of the CPB actuator housing, metal lever, bracket and coiled return spring.
Wilwood Red CPB Rear Left Combination Caliper, 41mm Piston / 1.00-Inch Rotor Width: Red CPB housing with white lettering above a dark mounting bracket and cable actuator.
Wilwood Red CPB Rear Left Combination Caliper, 41mm Piston / 1.00-Inch Rotor Width: representative red CPB front face with white lettering above a dark bracket; the pads and central opening can be seen below.
Wilwood Red CPB Rear Left Combination Caliper, 41mm Piston / 1.00-Inch Rotor Width: representative angled red CPB assembly showing the housing, dark mounting bracket and actuator hardware at the back.
Wilwood Red CPB Rear Left Combination Caliper, 41mm Piston / 1.00-Inch Rotor Width: representative close view of the CPB actuator housing, metal lever, bracket and coiled return spring.

Wilwood Red CPB Rear Left Combination Caliper, 41mm Piston / 1.00-Inch Rotor Width

SKU: 120-10110-RD

$315.52 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

Hydraulic pressure applies the service brake while a cable operates the parking mechanism on this red left-hand Combination Parking Brake caliper. The 1.00-inch rotor width version is intended for a correctly engineered rear disc arrangement, with a floating caliper and radial mounting bracket. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and components. Founded by Bill Wood in 1977, its range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications.

Technical Details

  • Manufacturer part number: 120-10110-RD. Component: Combination Parking Brake caliper.
  • Supply: one CPB caliper assembly with integrated cable parking actuation. Rotor, line and parking-cable compatibility must be checked as part of the complete rear brake arrangement.
  • Hydraulic inlet thread: M10 x 1.00. Use a fitting with the correct thread and sealing seat.
  • Compatible brake pad shape: D340; choose the required compound for the brake system.
  • Body: aluminum / steel; finish: Red powder coat.
  • Caliper weight: approximately 6.1 lb.
  • Pistons: 1 steel; bore specification: 1.62 inches. Effective piston area: 2.06 sq in.
  • Piston dust boots: included.
  • Mounting: radial, 5.98-inch centers; left hand orientation. Mount holes: 0.39 inch; height: 2.08 inches.
  • Rotor compatibility: nominal width 1.00 inch; diameter 11.00–13.00 inches. Specified rotor-width limits: 0.94–1.00 inch.

Fitment & Compatibility

Size the installation around the rotor's diameter and offset as well as its width. Cable housing stops, lever travel and the M10 x 1.00 hydraulic connection need to match the existing brake system.

With 20+ years of experience, PMB Performance can help compare the actual brake hardware. Supply the caliper number, rotor dimensions and mounting measurements when asking about compatibility.
