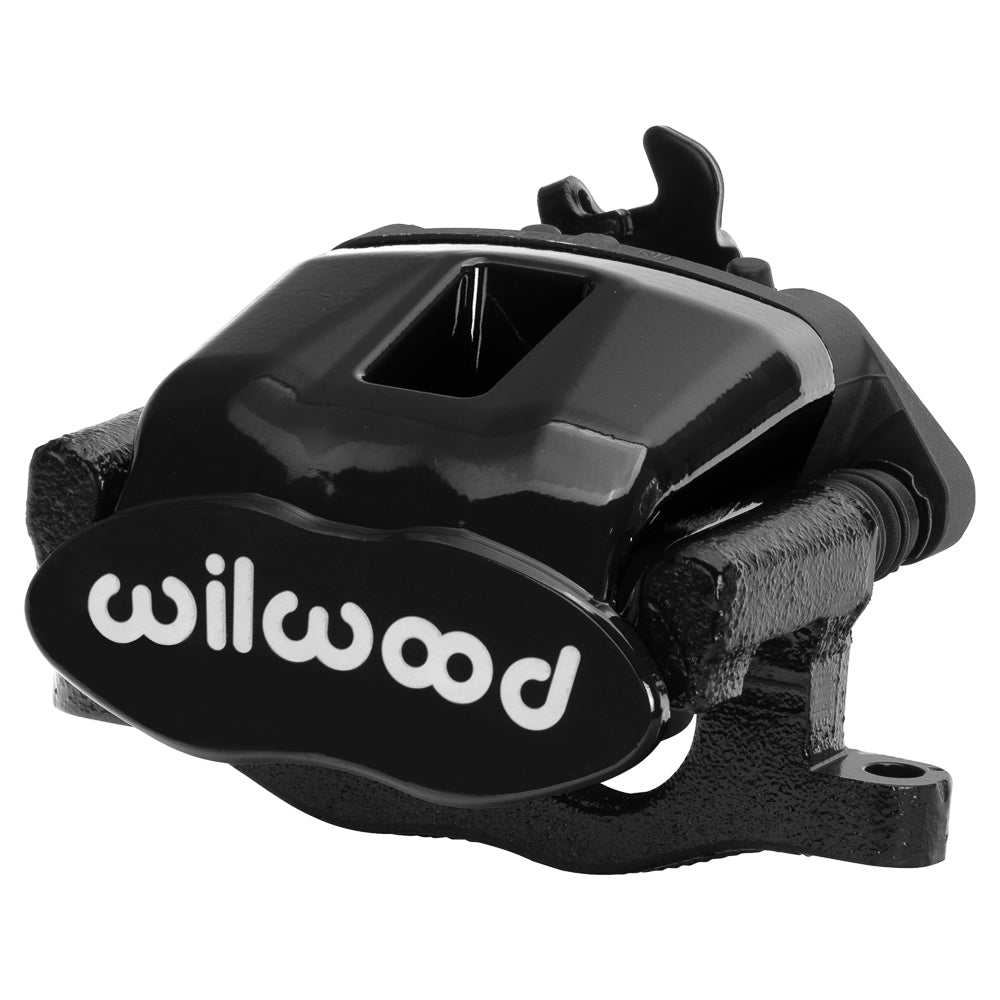

Wilwood Left Rear CPB Hydraulic Parking Brake Caliper, Black / 1.00-Inch Rotor Width: Black CPB housing above a dark mounting bracket, with white lettering and the cable actuator visible behind it.

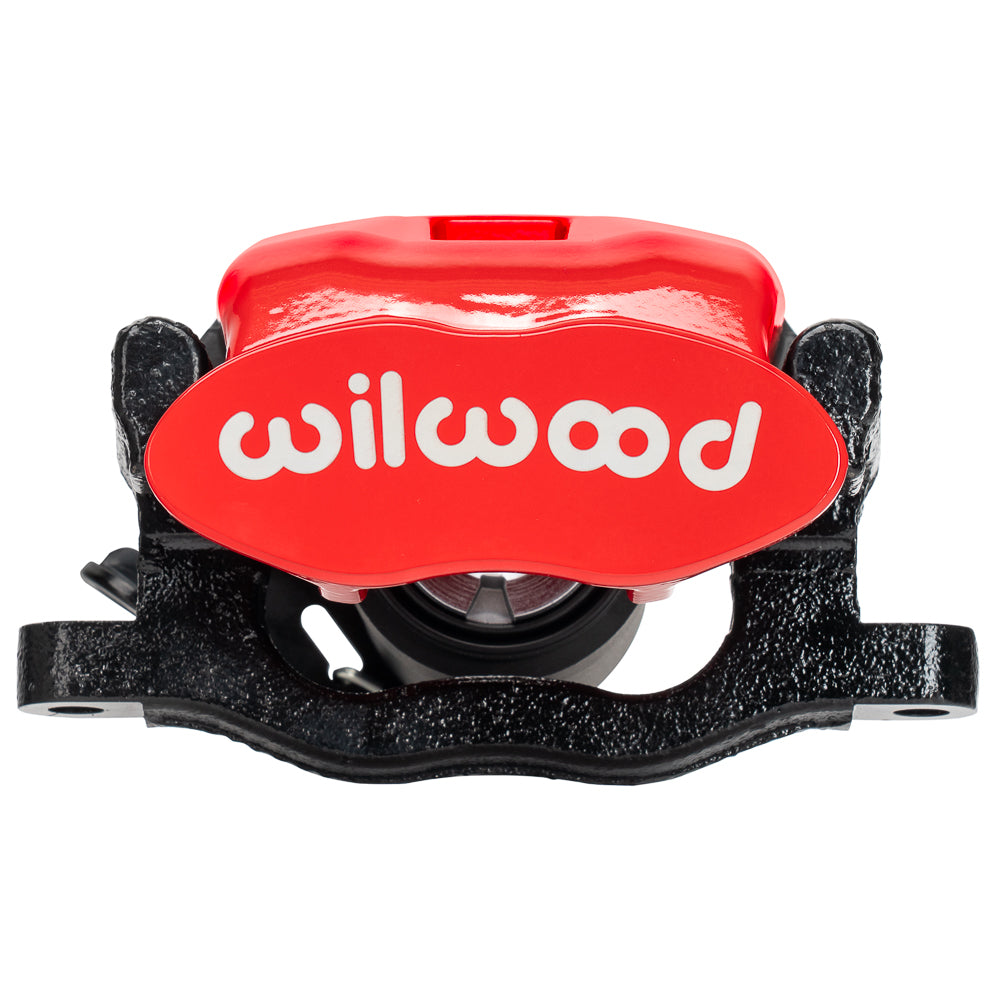

Wilwood Left Rear CPB Hydraulic Parking Brake Caliper, Black / 1.00-Inch Rotor Width: representative red CPB front face with white lettering above a dark bracket; the pads and central opening can be seen below.

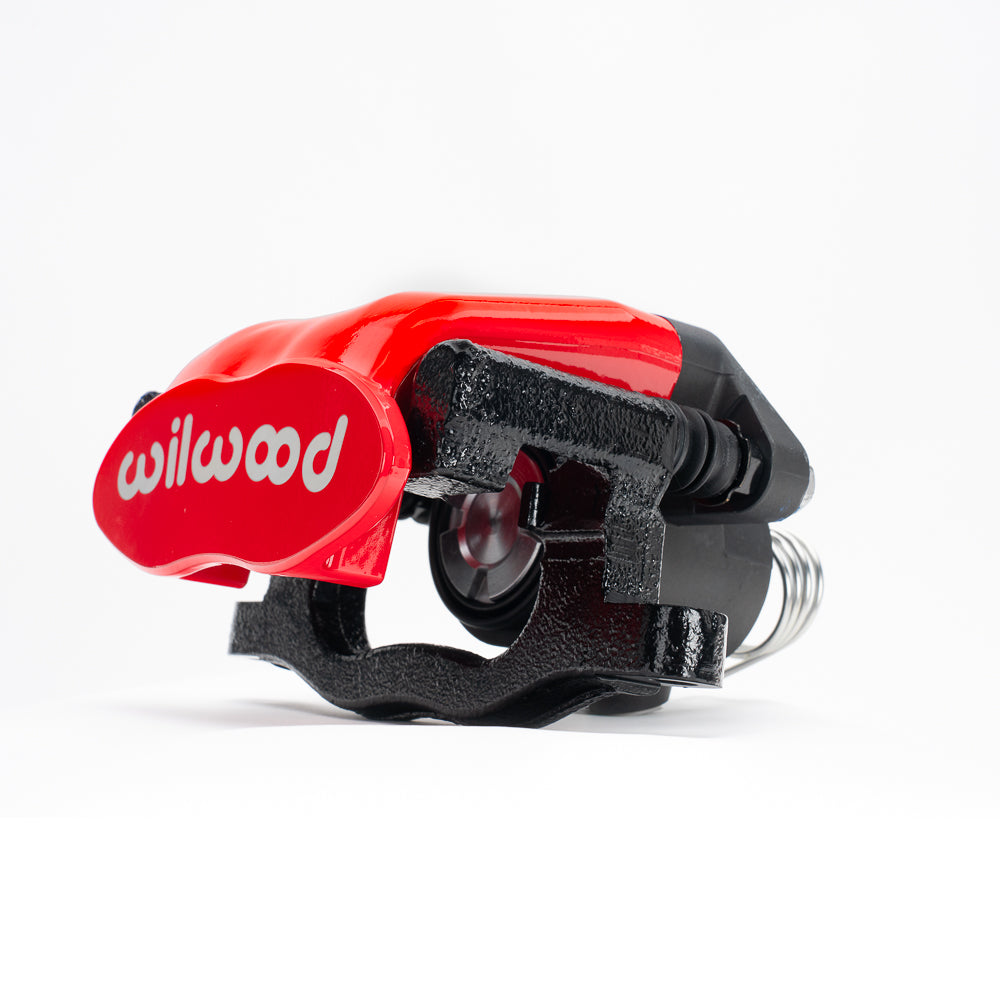

Wilwood Left Rear CPB Hydraulic Parking Brake Caliper, Black / 1.00-Inch Rotor Width: representative angled red CPB assembly showing the housing, dark mounting bracket and actuator hardware at the back.

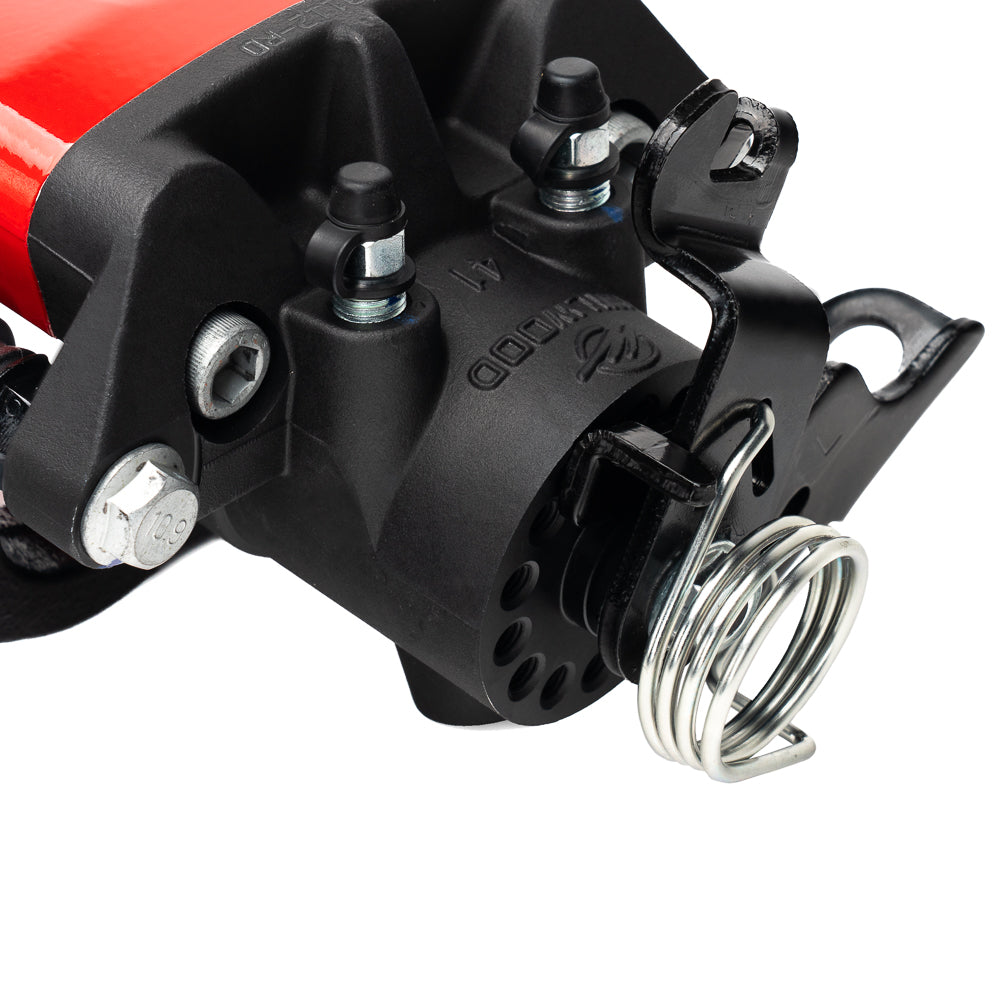

Wilwood Left Rear CPB Hydraulic Parking Brake Caliper, Black / 1.00-Inch Rotor Width: representative close view of the CPB actuator housing, metal lever, bracket and coiled return spring.
Wilwood Left Rear CPB Hydraulic Parking Brake Caliper, Black / 1.00-Inch Rotor Width: Black CPB housing above a dark mounting bracket, with white lettering and the cable actuator visible behind it.
Wilwood Left Rear CPB Hydraulic Parking Brake Caliper, Black / 1.00-Inch Rotor Width: representative red CPB front face with white lettering above a dark bracket; the pads and central opening can be seen below.
Wilwood Left Rear CPB Hydraulic Parking Brake Caliper, Black / 1.00-Inch Rotor Width: representative angled red CPB assembly showing the housing, dark mounting bracket and actuator hardware at the back.
Wilwood Left Rear CPB Hydraulic Parking Brake Caliper, Black / 1.00-Inch Rotor Width: representative close view of the CPB actuator housing, metal lever, bracket and coiled return spring.

Wilwood Left Rear CPB Hydraulic Parking Brake Caliper, Black / 1.00-Inch Rotor Width

SKU: 120-10110-BK

$315.52 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

This left-hand black CPB caliper combines hydraulic service braking and a mechanically operated parking lock for a rear brake conversion. Its floating body runs on a fixed radial bracket, with a 41mm piston and a nominal 1.00-inch rotor width. Bill Wood established Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and manufactures disc brake systems, from calipers and brake rotors to master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized use.

Technical Details

  • Manufacturer part number: 120-10110-BK. Component: Combination Parking Brake caliper.
  • Supply: one CPB caliper assembly with integrated cable parking actuation. Rotor, line and parking-cable compatibility must be checked as part of the complete rear brake arrangement.
  • Bracket interface: 5.98-inch radial centers with 0.39-inch holes. Specified mount height: 2.08 inches; orientation: left hand.
  • Hydraulic inlet thread: M10 x 1.00. Use a fitting with the correct thread and sealing seat.
  • Pad fit is type D340. Match the pad dimensions and compound to the rotor and intended braking conditions.
  • Piston dust boots: included.
  • Construction and surface: aluminum / steel housing finished in Black powder coat.
  • Bore configuration 1.62 inches across 1 piston; piston material: steel. Hydraulic effective area: 2.06 square inches.
  • Caliper weight: approximately 6.1 lb.
  • Nominal rotor width 1.00 inch; compatible outside diameter from 11.00 through 13.00 inches. Specified rotor-width limits: 0.94–1.00 inch.

Fitment & Compatibility

Confirm an 11.00–13.00-inch rotor, 5.98-inch bracket centers and a cable end that suits the actuator. The M10 x 1.00 banjo connection requires a matching hose fitting; this is a single caliper, not an axle conversion kit.
