Product details

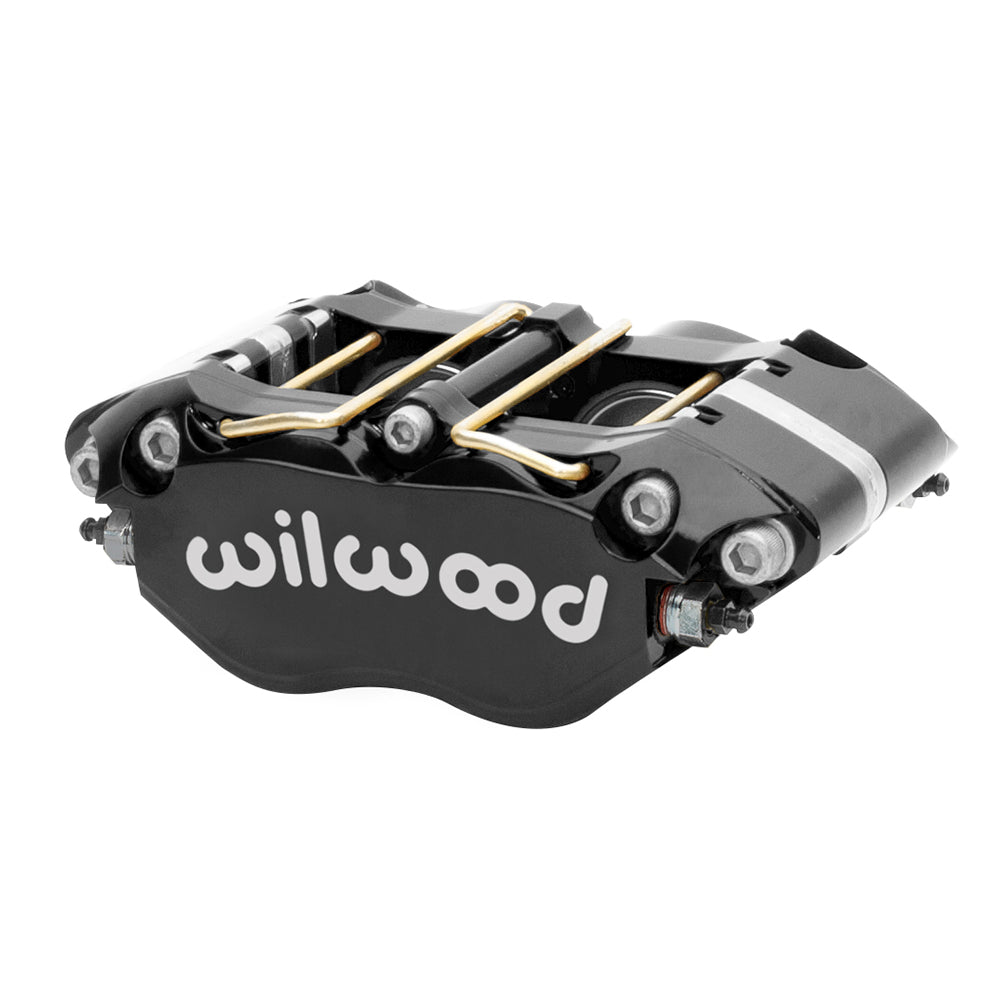

The black Narrow Dynapro radial-mount caliper is an individual four-piston component for a brake system using a nominal 0.81-inch-wide rotor. Its 1.75-inch stainless pistons and compact 7812 pad arrangement must be matched to the hydraulic balance and bracket geometry of the complete brake assembly. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. It designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications.
Technical Details
- Manufacturer part number: 120-10000-BK. Component: Narrow Dynapro Radial Mount caliper.
- Supply: one brake caliper, not a complete axle brake kit. Match the mating rotor, pads, bracket and connection hardware to the installation.
- Pistons: 4 stainless steel; bore specification: 1.75 inches. Effective piston area: 4.80 sq in.
- Mounting: radial, 4.75-inch centers; universal orientation. Mount holes: 0.39 inch; height: 1.61 inches.
- Piston dust boots: not fitted.
- Rotor compatibility: nominal width 0.81 inch; diameter 10.75–12.19 inches. Specified rotor-width limits: 0.75–0.86 inch.
- Hydraulic inlet thread: 1/8-27 NPT. Use a fitting with the correct thread and sealing seat.
- Compatible brake pad shape: 7812; choose the required compound for the brake system.
- Caliper weight: approximately 4.1 lb.
- Body: billet aluminum; finish: Black powder coat.
Fitment & Compatibility
Radial mounting locates this caliper on 4.75-inch centers. Check the 10.75–12.19-inch rotor diameter envelope, hat offset and wheel clearance together; these dimensions do not establish a direct vehicle application.
PMB Performance has over 20 years of brake-component experience. Send the existing caliper identification, rotor measurements and bracket details for help matching this configuration.
