Product details

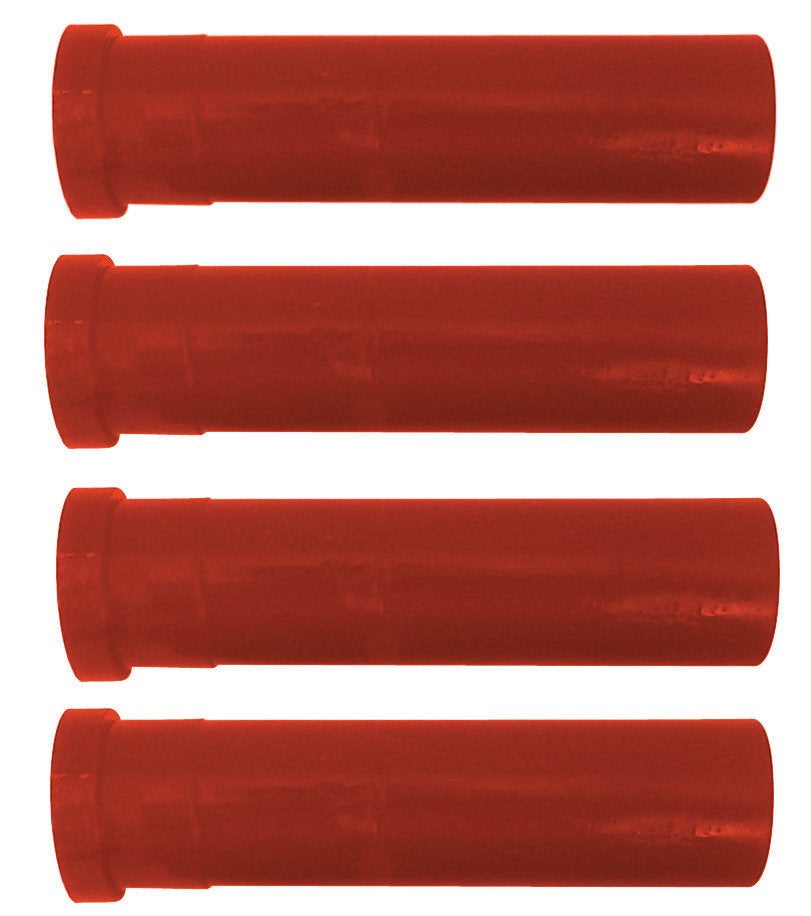

These long urethane bushings serve both the inner and outer trailing-arm support positions in the king-and-link-pin beam. This version is for beams originally fitted with needle bearings. Four identical pieces are supplied, which sets it apart from the short outer-only replacement set.
Technical Details
- Part number: 16-5140-0
- Suspension: Type 1 king and link pin
- Original support configuration: Needle bearings
- Bushing coverage: Inner and outer
- Material: Urethane
- Quantity: Four identical bushings
Fitment & Compatibility
Match the beam's original bearing design and the trailing-arm journals. Check the prepared bores, required lubrication and arm movement during assembly. These are internal support bushings; beam tube seals are separate parts.
