Product details

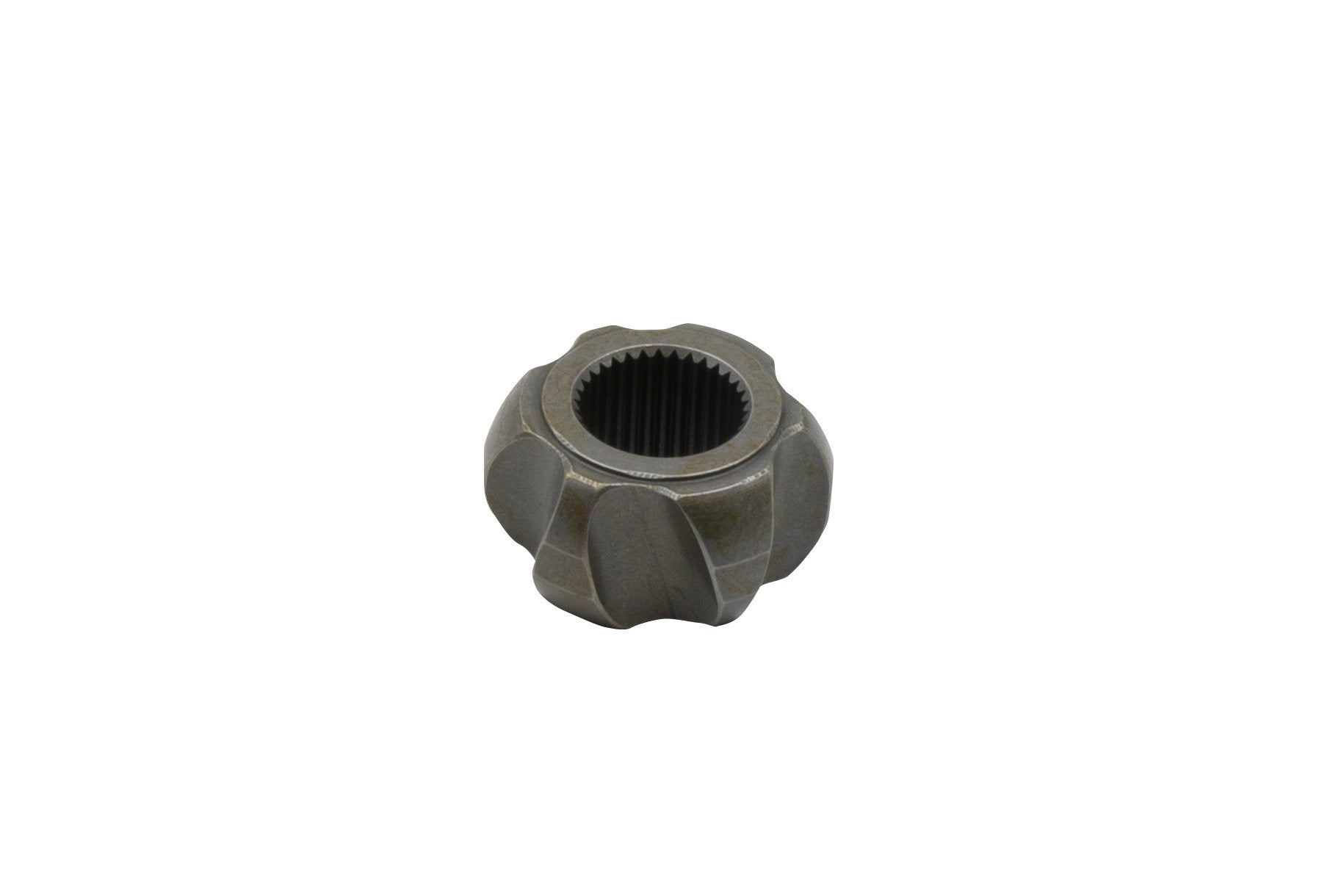

This race is the splined inner component for EMPI's stock-style 100mm Type 2 and Vanagon CV joint. It replaces the race in the 87-9917 joint, not the race used in EMPI's separate off-road joint. The ball tracks, cage and outer body must stay a compatible set during rebuilding.
Technical Details
- Part number: 16-2632-0
- Component: Inner CV race
- Replacement application: EMPI 87-9917
- Parent joint: 100mm Type 2/Vanagon
- Parent-joint ball size: .750 inch
- Quantity: Each
Fitment & Compatibility
Match the exact joint reference and inspect its cage, balls and outer tracks before assembly. General Bus or Vanagon fitment is not enough to identify an internal CV part. Confirm smooth articulation with the joint correctly assembled and lubricated.
