Product details

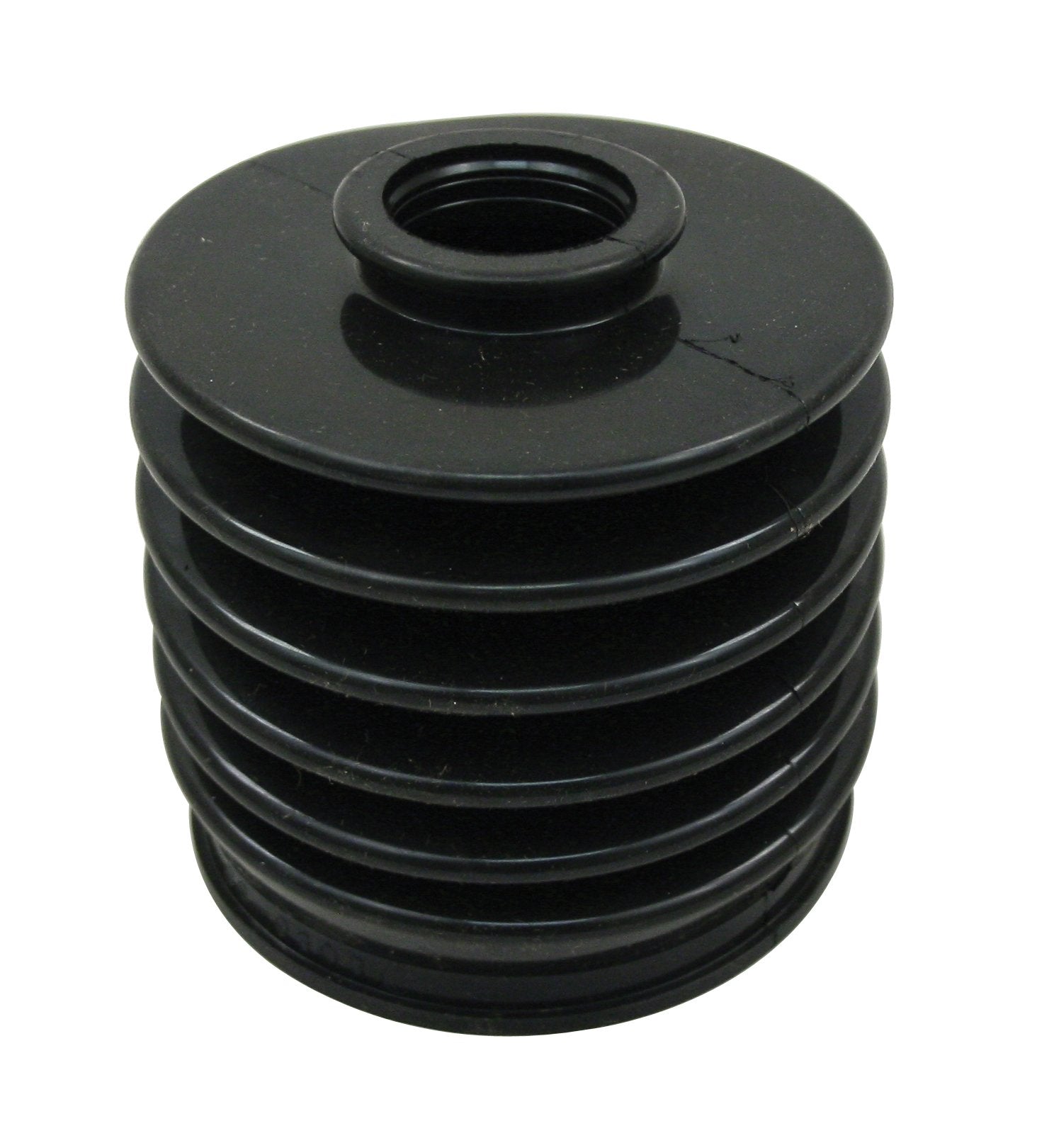

The EMPI 86-9304-0 is a bulk off-road C.V. boot for the 100mm VW Type 2 (Bus) C.V. joint, the boot from EMPI's 86-9303-D off-road boot kit, sold without the flange. EMPI injection molds its off-road boots from a neoprene blend made to its own specification. It is an off-road style boot that bolts to a separate flange, which sets it apart from the stock-style I.R.S. boot used in EMPI's 86-1086 kits.
EMPI's matching flange is 86-9305, the Type 2 flange from the same kit, with 10.3mm holes. EMPI notes that standard bolts work in those holes, or you can use its 16-2410 Allen-head or 16-2412 12-point 3/8-24 x 1 3/4 inch bolts. EMPI also states this boot will fit its 86-9302 930 flange. The complete 86-9303-D kit adds the flange, a moly grease pack, and heavy-duty tie wrap clamps.
Technical Details
- Manufacturer: EMPI
- Manufacturer part number: 86-9304-0
- Type: Off-road C.V. boot, boot only
- Material: Injection-molded neoprene blend
- Application: 100mm Type 2 C.V. joint
- From kit: 86-9303-D
- Compatible flanges: 86-9305 (Type 2), 86-9302 (930)
- Sold as: Bulk, each
Fitment & Compatibility
For 100mm Type 2 C.V. joints, such as the stock-replacement 87-9917 and the off-road 98-5084-B,. It mounts through a boot flange, so confirm you have the 86-9305 or 86-9302 flange before ordering the boot alone.
Common Questions
Will this fit a stock 1972 Bus axle?
It is EMPI's off-road style boot for the 100mm Type 2 joint and needs a boot flange. For the stock-style boot, look at the 86-1086 boot kits.
Can I use it on a 930 flange?
Yes. EMPI states it will also fit the 86-9302 930 flange.
PMB Performance can help you match boots and flanges if you are not sure which joints your car runs.
