Product details
This Super Stock 1600 kit uses an AS41 magnesium case and a 69mm four-dowel crankshaft as the basis of a customer-assembled long block. Its dual-port heads have stainless valves, high-rev springs and chromoly retainers. Double-thrust cam bearings and a stock-style four-dowel flywheel are included.
Technical Details
- Part number: 98-0472-B
- Case: AS41 magnesium
- Crankshaft: Direct drilled, 69mm stroke
- Rods: Forged chromoly I-beam
- Camshaft: Stock type, 0.334-inch lift/250-degree duration
- Pushrods: 4130 chromoly, 0.375-inch diameter
- Rockers: 1.1:1 solid shaft with swivel-foot adjusters
- Oil pump: 26mm Schadek

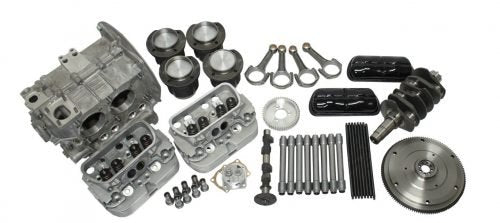

The kit also includes the piston/cylinder set, 8mm chromoly head studs, main and rod bearings, lifters, valve covers, pushrod tubes, chromoly gland nut, flywheel, Elring gasket kit, main seal and assembly hardware. EMPI notes that actual component selection may vary.
Fitment & Compatibility
Confirm the complete air-cooled VW engine specification before assembly, including bearing dimensions, deck clearance and valve-train setup. Match the finished long block to the car's clutch, transmission, intake and exhaust equipment.
