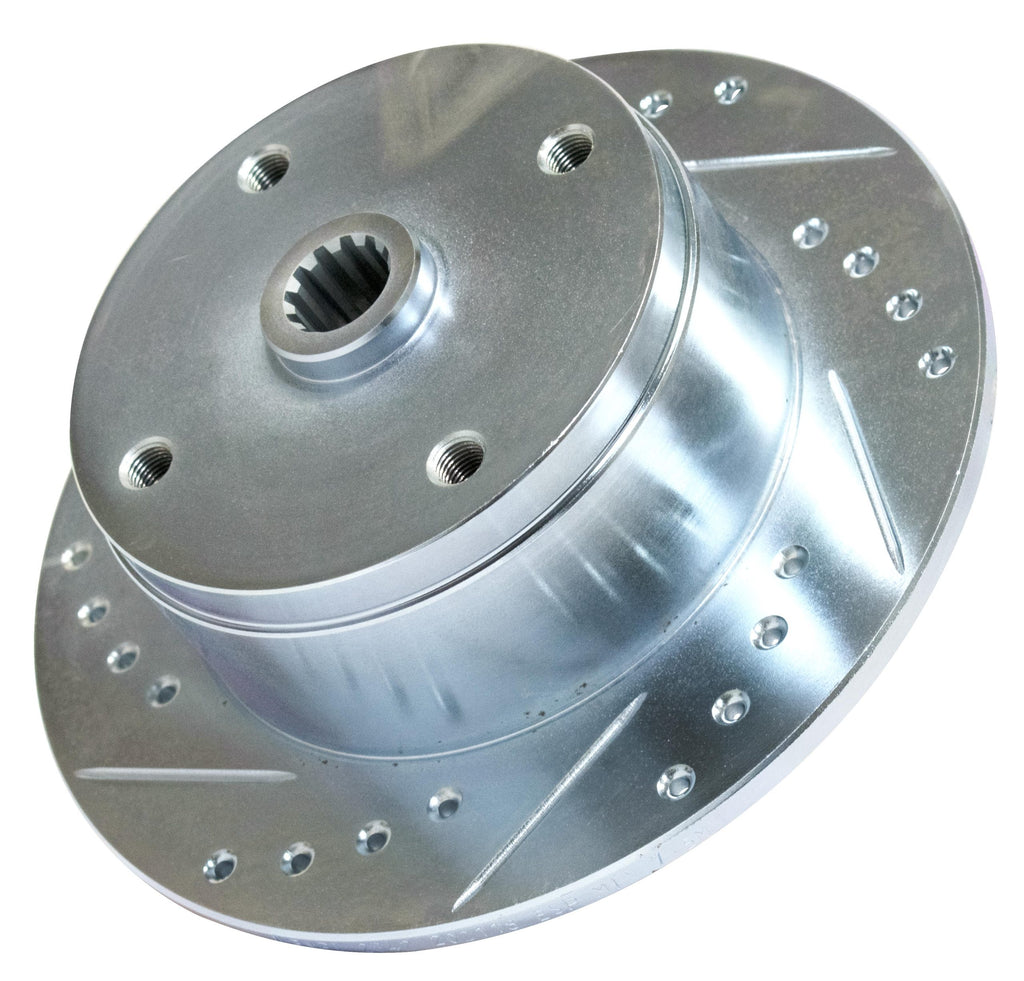

This left rear rotor uses a short-spline configuration for the matching swing-axle brake setup. It can also be used in the specified IRS arrangement when spacer 22-2851-7 is fitted.
Technical Details
- Diameter: 11 inches
- Depth: 3 1/2 inches
- Pattern: 4 x 130mm
- Threads: M14 x 1.5
- Part number: 22-2842-5
Fitment & Compatibility
Verify the axle, caliper spacing and required spacer. Observe the left-side direction of the drilled-and-slotted rotor.
Specifications
| UPC | 707924487435 |
|---|
