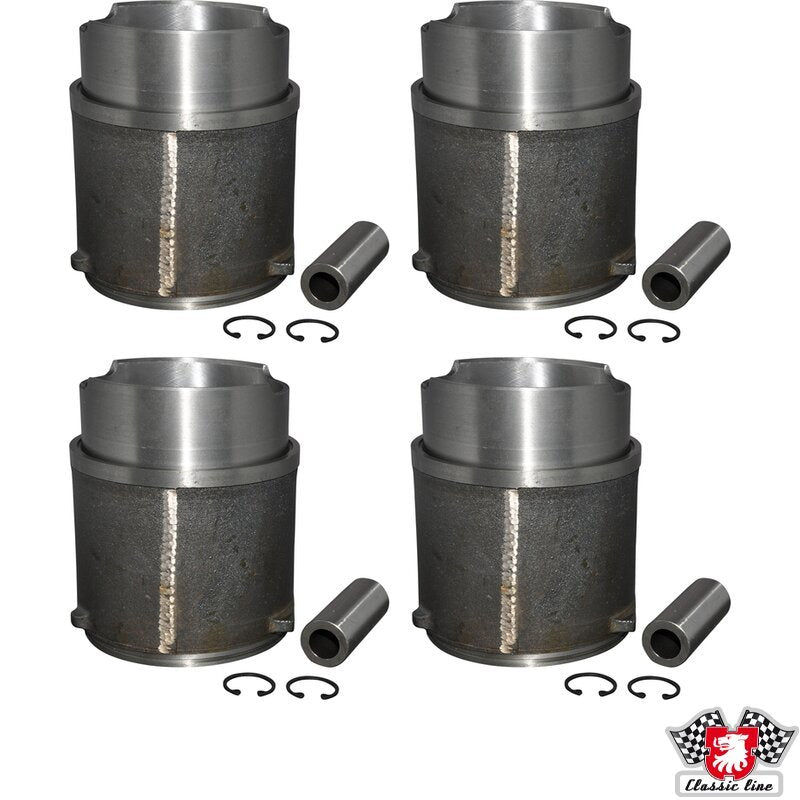

This big-bore set is intended to convert the matching 2.1L waterboxer to approximately 2.2L. It uses 95.5mm bores with the specified 76mm stroke configuration.
Technical Details
- Bore: 95.5mm
- Stroke: 76mm
- Upper diameter specification: 107mm
- JP Group reference: 1110700410
Fitment & Compatibility
For the corresponding 1986–1991 Vanagon 2.1L rebuild. Check cylinder registers, piston clearance and the complete engine specification before assembly.
Specifications
| UPC | 707924541403 |
|---|---|
| Fits | 1986-1991 Volkswagen Vanagon (No. 1 Bore, No. 2 Bore, No. 3 Bore, No. 4 Bore) (Liter: 2.1 & Cylinder: 4 & Block: H / Qualifier: Big Bore Kit / Note: Turns 2.1L into 2.2L Engine) |
| OE Reference # | 025198075D |
| JP Reference # | 1110700410 |
| Sold As | Set |
| Weight | 21.95 lbs |
