Product details

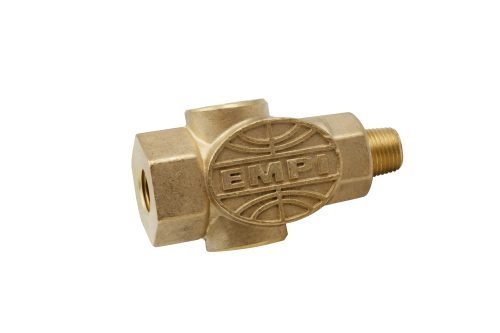

This cast-brass fitting lets up to three sending units share the oil pressure passage. All connections use M10x1.0 threads, the metric version of EMPI's GTV-style fitting. Check the space around the senders before combining an oil warning switch and extra pressure instrumentation.
Technical Details
- Part number: 00-9249-0
- Material: Cast brass
- Thread specification: M10x1.0 at all connections
- Sender capacity: Up to three
- Application family: Upright air-cooled VW Type 1 and Type 2 engines
Fitment & Compatibility
Verify the engine's oil pressure port and each sender thread before installation. M10x1.0 and 1/8-27 NPT are separate thread standards and are not interchangeable. Confirm sender clearance and support, and check the finished connections for leaks.
