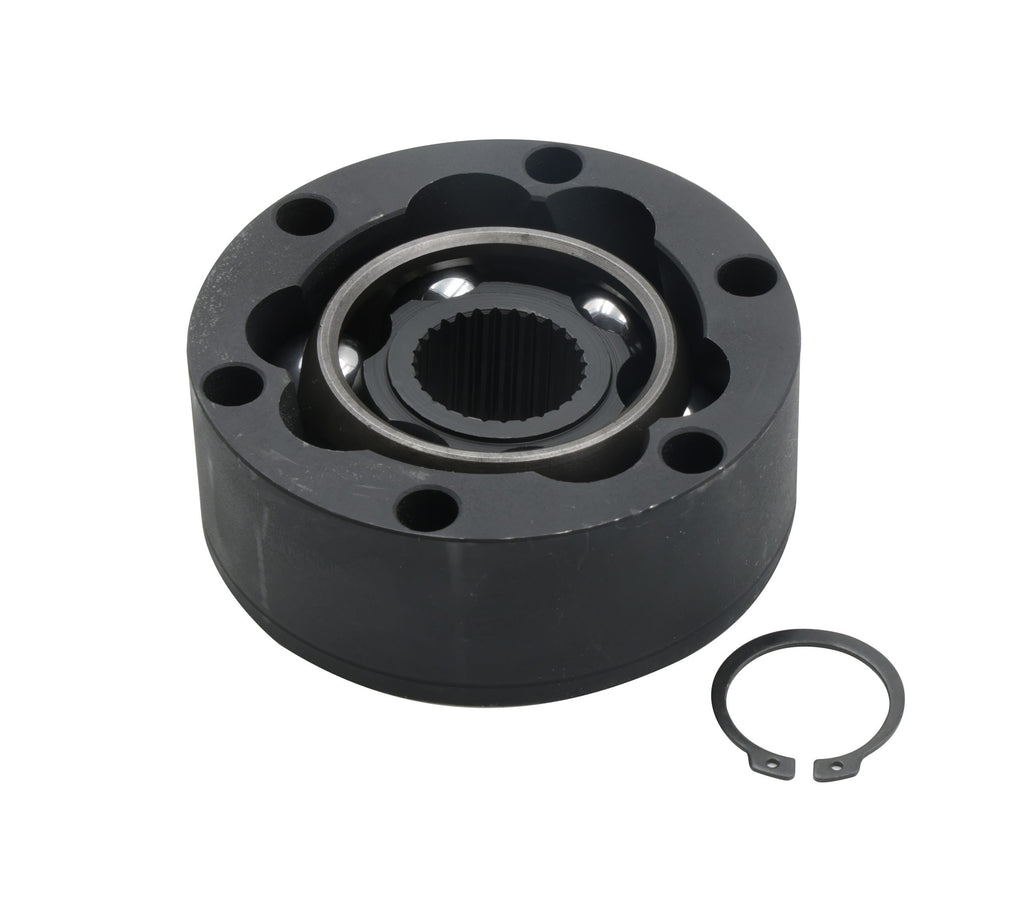

This stock-replacement 930-style joint connects the axle through a 28-spline inner race. Its 108mm outside diameter and 10.4mm mounting holes identify the corresponding flange and shaft arrangement.
Technical Details
- Outside diameter: 108mm
- Inner race: 28 splines
- Ball size: 0.875 inch
- Mounting holes: 10.4mm
- Part number: 98-5099-B
Fitment & Compatibility
Compare the axle splines, flange bolt pattern and boot arrangement before installation. Match reference 93033203400 to the joint being replaced.
