JayCee Billet Aluminum Alternator Stand for VW Type 1 Engines

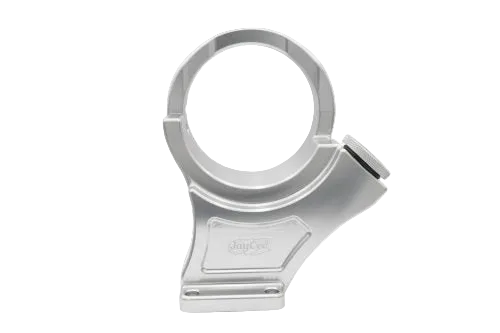

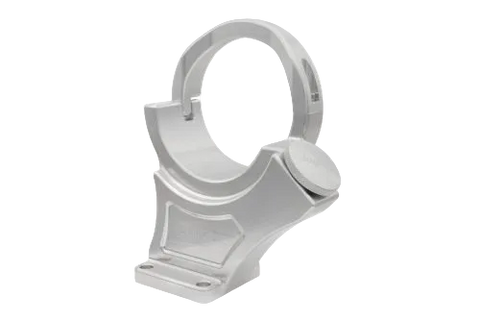

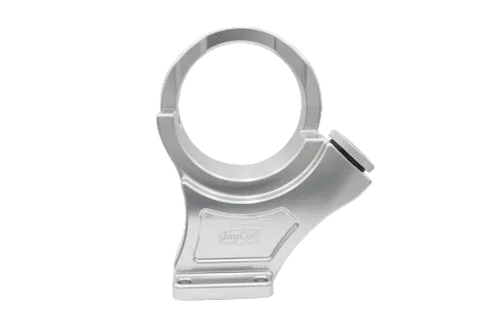

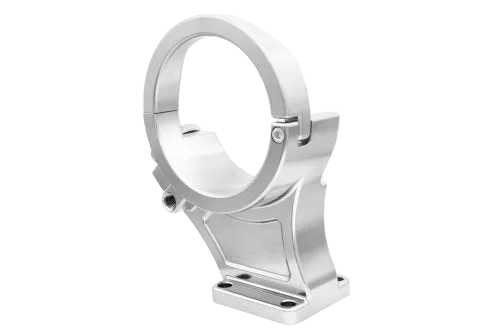

JayCee's alternator stand supports a 12V alternator above the crankcase and incorporates the retaining strap into the stand itself. CNC-machined 6061 aluminum construction also provides an oil-fill opening and an optional 1/4-18 NPT breather connection for the crankcase ventilation layout. Stainless mounting hardware is furnished, with the anodized color selected from the available variants.

Technical Details

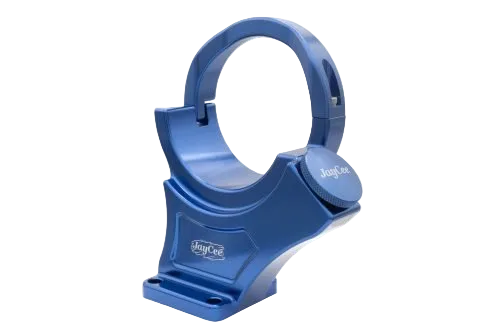

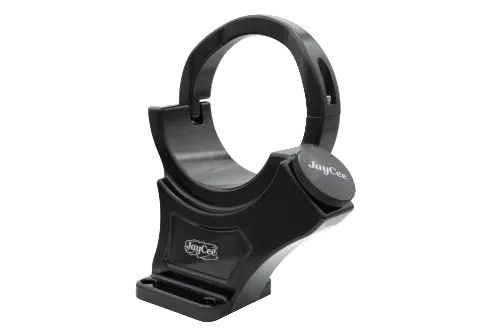

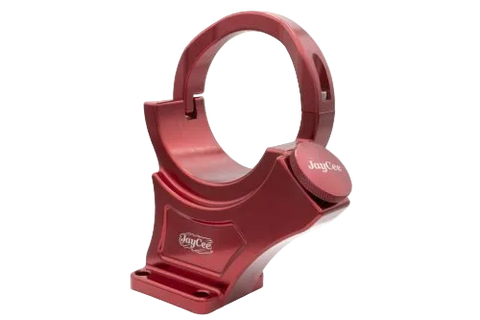

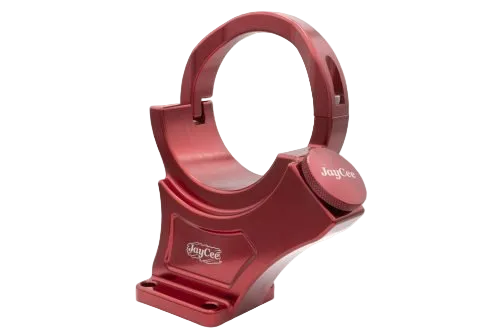

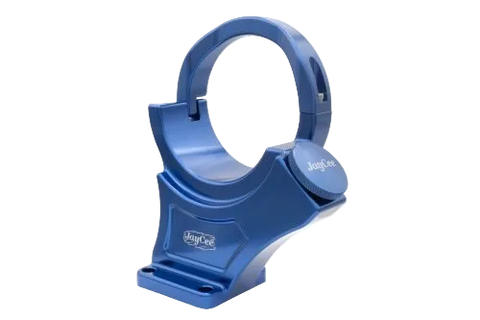

• Part numbers: JC-4511-0 silver, JC-4513-0 black, JC-4515-0 red, JC-4519-0 blue
• Material: 6061 aluminum
• Alternator diameter: 103–105mm

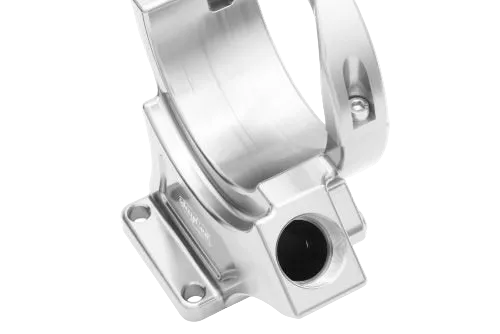

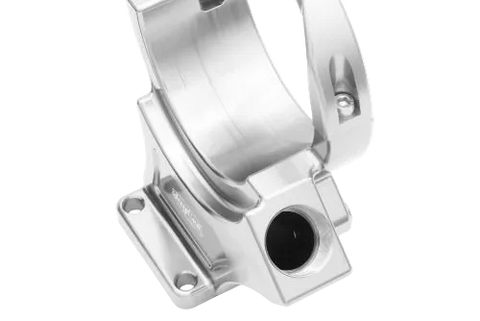

• Breather provision: 1/4-18 NPT
• Included: Integrated strap and stainless mounting hardware

Fitment & Compatibility

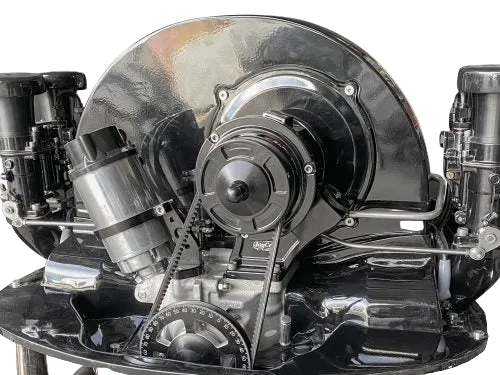

For compatible upright Type 1 engines, including Beetle 1961–1977, Super Beetle 1971–1979, Ghia 1961–1974, Type 2 Bus 1961–1971, and Thing 1973–1974. Measure the alternator body and confirm oil-fill, breather, and fan-housing clearance. The vehicle's year does not confirm fit where its engine or charging system has been changed.
