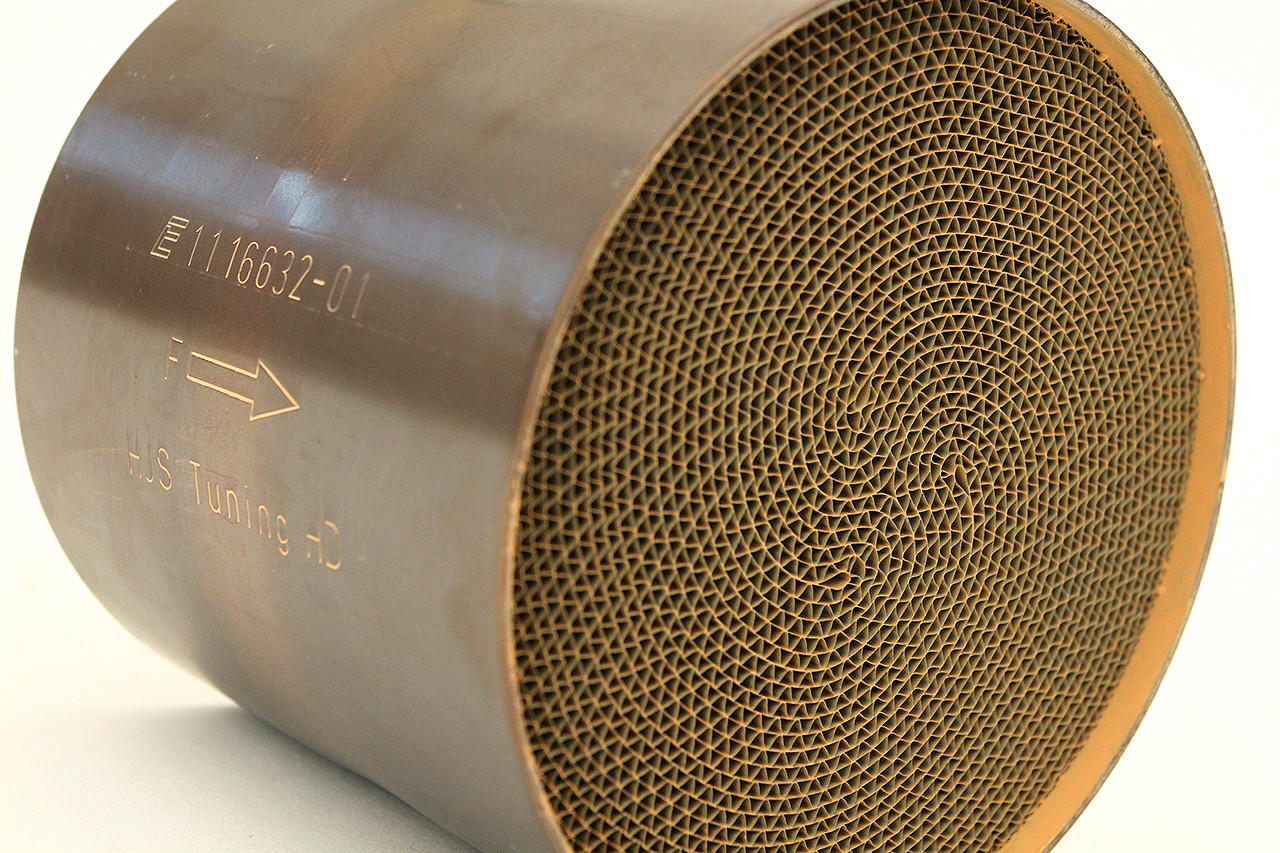

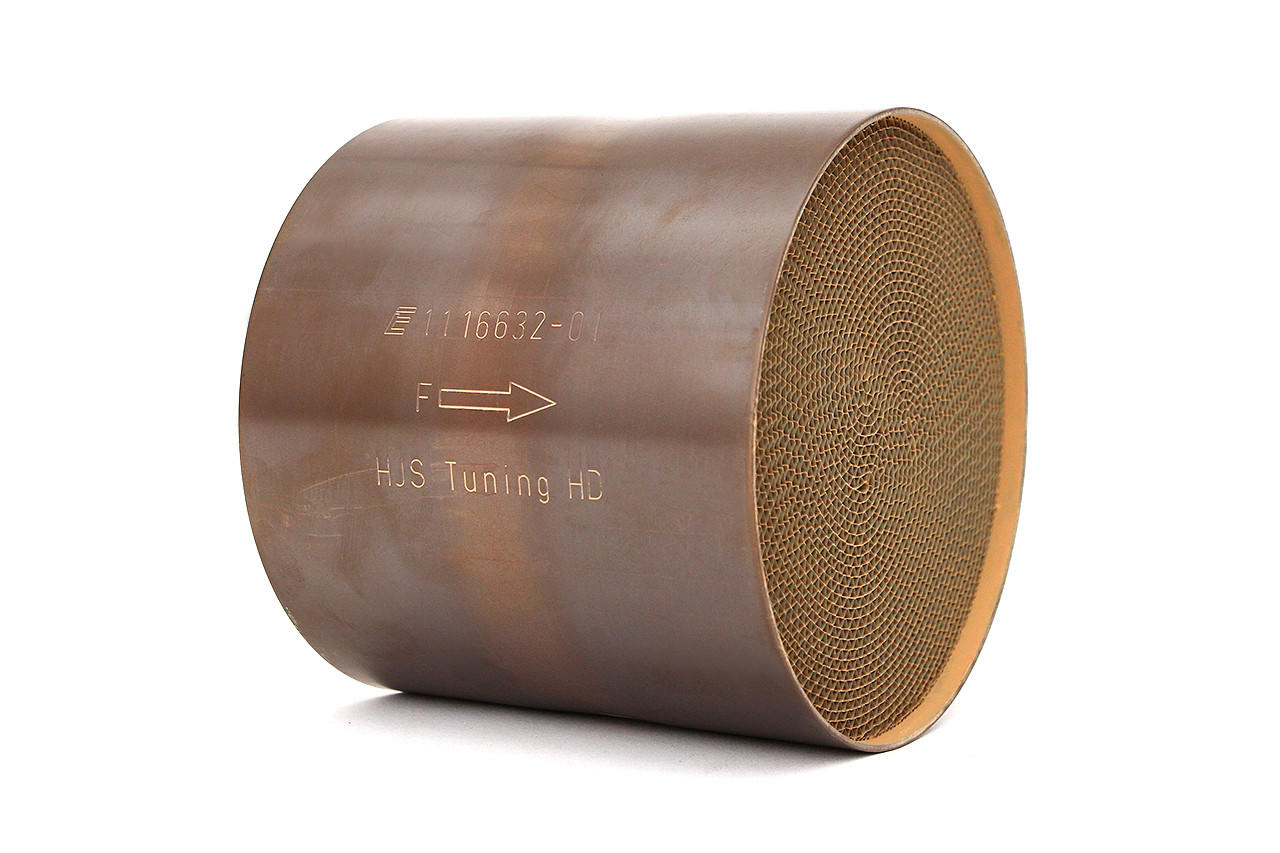

HJS 200-Cell Directional Catalyst Core, 108 × 100 mm

This compact HJS core provides a directional catalyst element for a fabricated housing. Its 108 × 100 mm size matches a different installation requirement from the non-directional core, so check orientation as well as dimensions.

Technical Details

• Fabspeed catalog reference: 008-3447-108-00.
• 200-CPSI catalyst construction.
• 108 mm outside diameter with a stated 100 mm length.
• Direction-sensitive installation; follow HJS orientation requirements.
• Supplied individually for welding into a suitable assembly.
• Existing pipes, housings and vehicle flanges are separate.

Use restrictions

Verify certification of the completed vehicle-specific installation. The core dimensions alone do not establish emissions approval.

Manufacturer Videos

What Are HJS Catalytic Converters? | Fabspeed Motorsport

Demonstration vehicles may have additional modifications. The selected product configuration determines what is supplied; a video does not establish fitment or guarantee a particular sound or output.

Fabrication Compatibility

This is a weld-in catalyst component requiring a suitable exhaust design and qualified installation. Match the listed dimensions, flow direction, housing arrangement and intended engine application; it is not a vehicle-specific bolt-on assembly.
