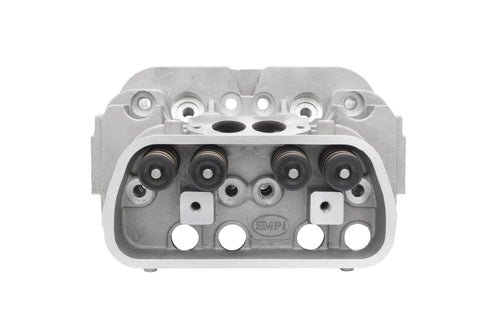

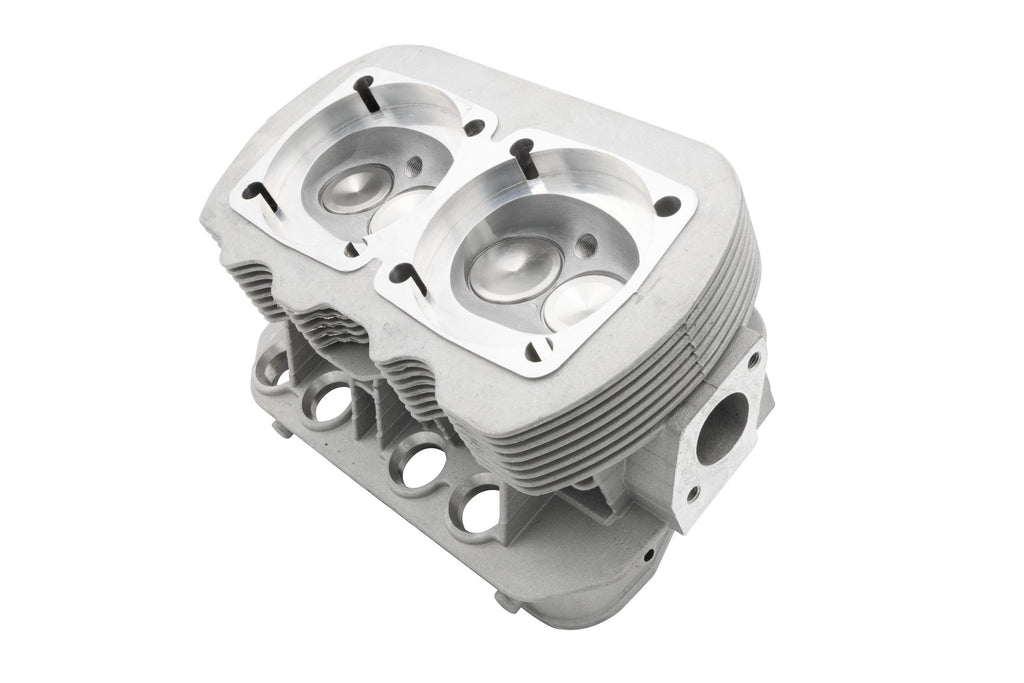

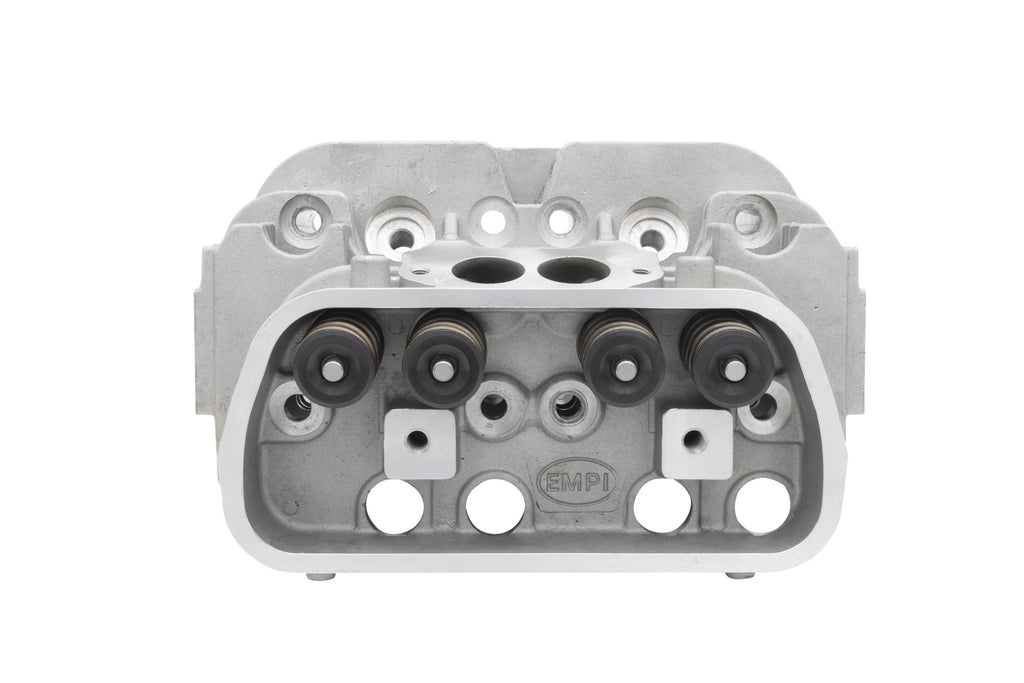

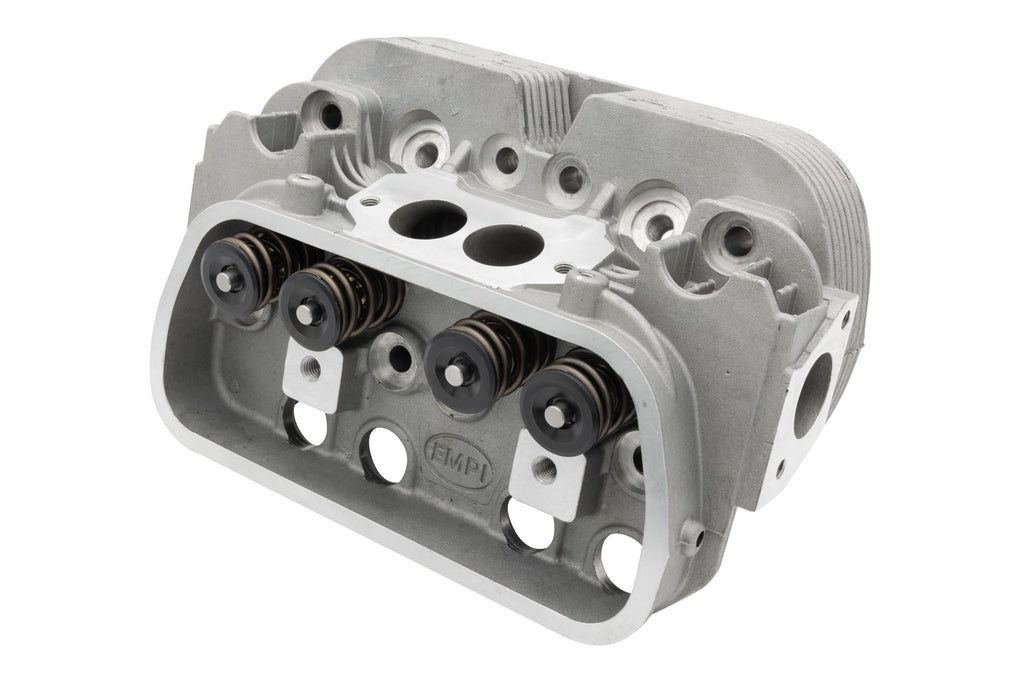

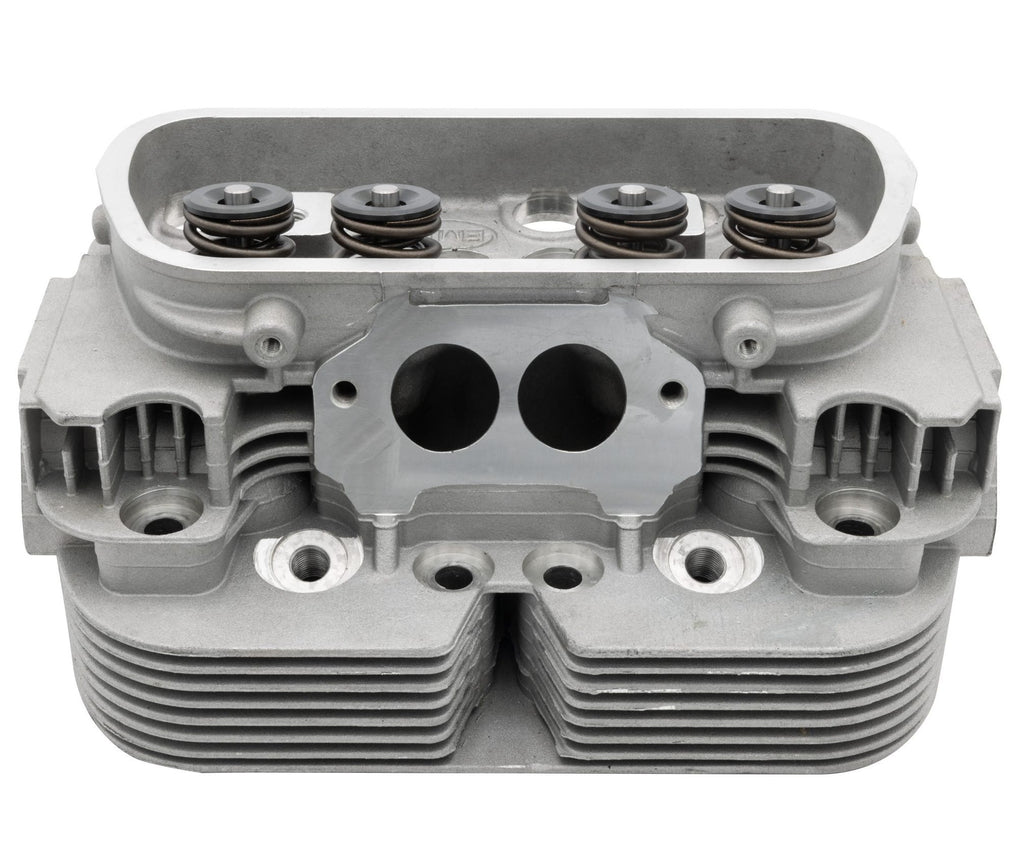

EMPI GTV-2 Cylinder Head 94mm, 40 × 35.5mm Valves

This GTV-2 cylinder head is assembled for a 94 mm bore with 40 × 35.5 mm stainless valves. Its chamber is 56 cc, with 56 cc intake and 66.5 cc exhaust port volumes.

Technical Details

• Brand: EMPI
• Manufacturer Part Number: 98-1336-B
• Sold As: Each
• Bore: 94 mm
• Valves: 40 × 35.5 mm stainless steel

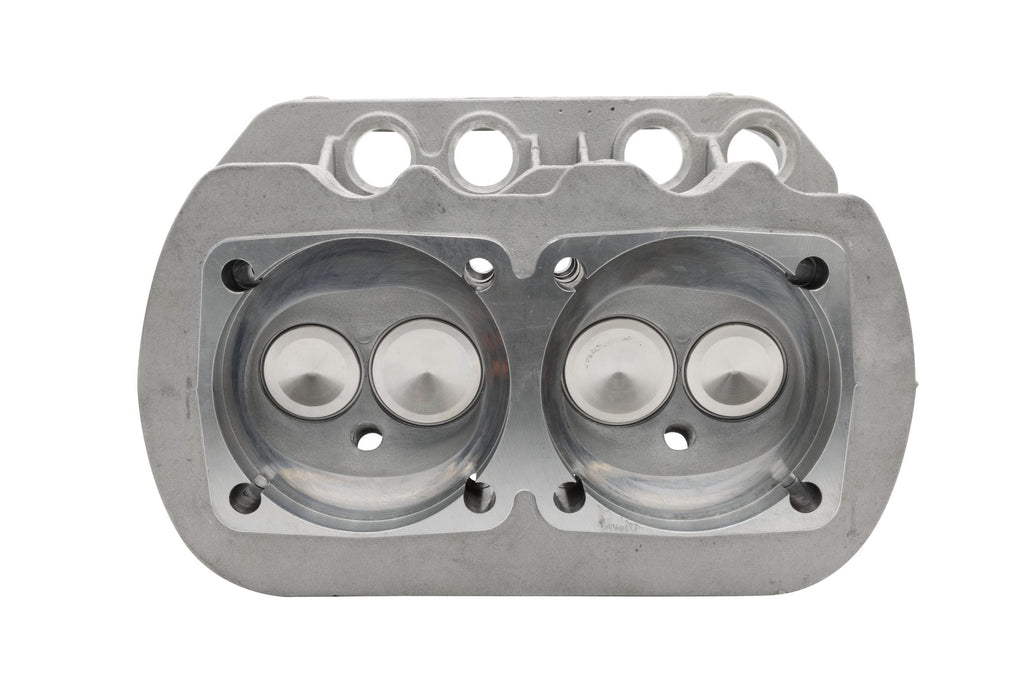

• Chamber volume: 56 cc

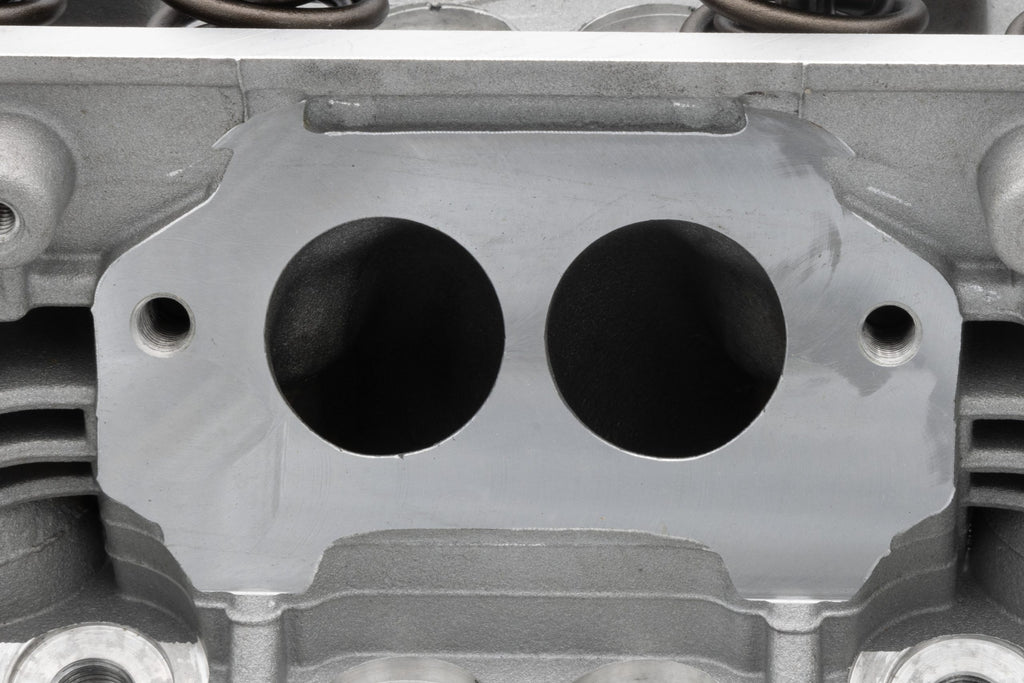

• Intake port volume: 56 cc
• Exhaust port volume: 66.5 cc
• Valve springs: Dual
• Valve job: 3-angle

Fitment & Compatibility

For a compatible VW dual-port engine build with 94 mm cylinders. Check valve-train and rocker geometry for the 40 × 35.5 mm stainless steel valve package during assembly.
