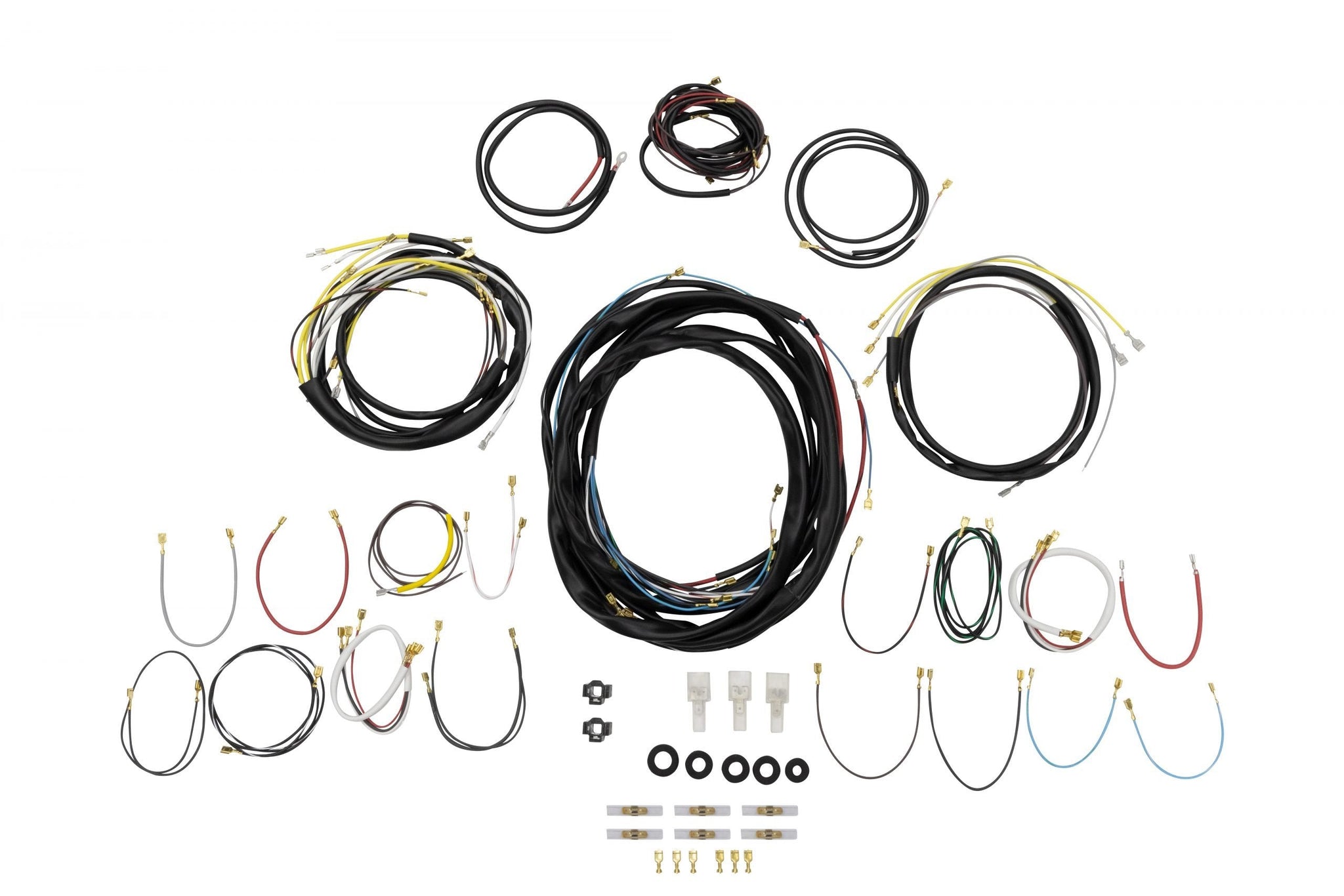

EMPI wiring harness for 1970–1971 VW Beetle sedan and convertible
Second view of the EMPI 1970–1971 Beetle wiring harness
Branch wires of the EMPI 1970–1971 Beetle harness
Connectors on the EMPI 1970–1971 Beetle wiring harness
EMPI reproduction wiring harness for 1960 VW Beetle sedan
EMPI wiring harness for 1970–1971 VW Beetle sedan and convertible
Second view of the EMPI 1970–1971 Beetle wiring harness
Branch wires of the EMPI 1970–1971 Beetle harness
Connectors on the EMPI 1970–1971 Beetle wiring harness
EMPI reproduction wiring harness for 1960 VW Beetle sedan

EMPI Wiring Harness for VW Beetle 1970–1971, Early Fuse-Box Layout

SKU: 98-9488-0

$410.13 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

This EMPI harness replaces the wiring for the 1970–1971 Beetle electrical layout. It includes identified main and branch circuits for lighting, instruments, engine connections, and the associated controls. Color coding and numbered wires support installation with the supplied diagram, but switch-attached wiring is not all included in the harness kit.

Technical Details

  • Part number: 98-9488-0
  • Manual/kit designation: K3
  • Application: 1970–1971 Beetle layout
  • Fuse box: Ten-fuse layout shown in manual
  • Exclusion: Late-1971 12-fuse/column-wiper-switch car

Fitment & Compatibility

Check the fuse count and wiper-switch location before ordering a 1971 harness. The manufacturer directs late-1971 cars with twelve fuses and a steering-column wiper switch to 98-9490-0. The installation also requires inspection of the ignition/turn-signal switch leads, grounds, and any added equipment; those existing assemblies must be serviceable.
