EMPI Long Block Engines are hand assembled in Southern California with ALL NEW ALL EMPI matched and approved components by VW racing legend Jack Sacchette. Available in three standard configurations for Type 1, 2 or 3 applications. No core required, no long lead times-get your Classic VW back on the road today!
Every EMPI Long Block comes with a 12 month or 12K mile warranty.
EMPI Long Blocks are assembled with name brand components from AA Performance Products, AutoLinea, Elring, EMPI, OSVAT, Mahle, Manton, Silverline and Schadek
1600cc Long Blocks include new AutoLinea aluminum cases and AutoLinea dual port cylinder heads with OE style OSVAT valves, seats and EMPI proprietary 3 angle valve job performed on a Rottler valve machine at EMPI in Anaheim, California.
All EMPI Long Blocks are palletized, shrink-wrapped, crated and ready to ship. We'll let Rob tell you all about it!

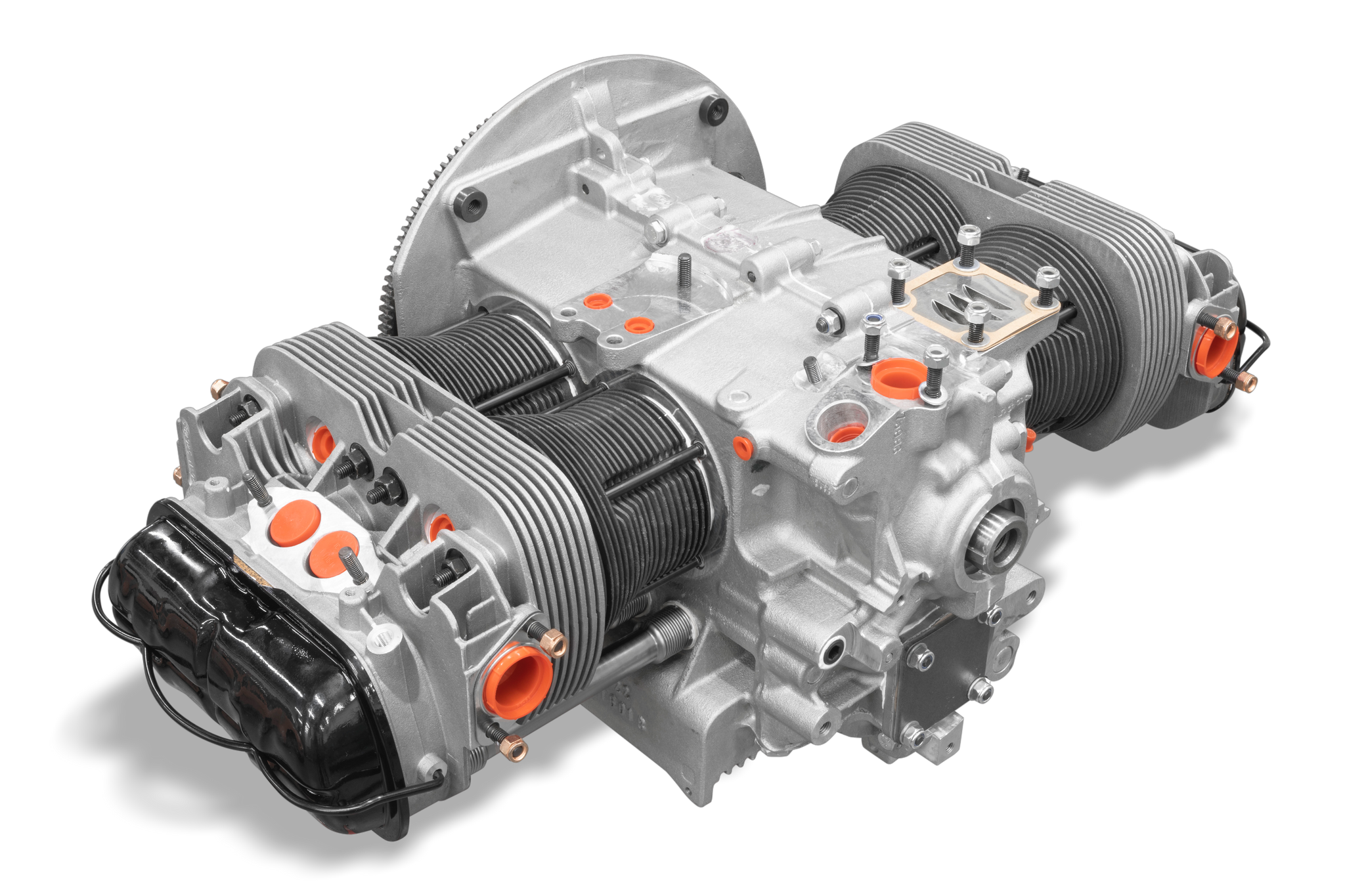

- Pictures shown are for illustration purposes only
- Special Freight policies apply. See your sales rep for details.
ENGINE CASE - AutoLinea, Standard, Stock Aluminum Engine Case
CRANKSHAFT- Direct Drilled, 69mm Stroke
RODS- OE Specification
CAMSHAFT- Stock Cam with Flat Gear, .334" Lift, 250º Duration
LIFTERS- Precision Ground and Heat Treated, 28mm
FLYWHEEL- Stock Style, 4 Dowel Pin, 200mm
GLAND NUT- Chromoly, Heavy Duty
MAIN BEARINGS- Standard, Steel Center
ROD BEARINGS- Standard
CAM BEARINGS- Standard Thrust
OIL PUMP- Schadek, 21mm with Cover
HEAD STUDS- Chromoly, 8mm with Nuts
PISTONS & CYLINDERS- Mahle, 85.5mm Diameter
PUSHROD TUBES- Stock Style
HEADS- AutoLinea Dual Port Cylinder Head, EMPI Spec, Includes: OSVAT O.E. Style 35.55mm Intake and 32mm Exhaust Valves, 3 Angle Valve Job Completed on Precision Rottler Seat & Guide Machine at EMPI Anaheim
PUSHRODS- Stock Length, Fully Assembled Hi-Performance Push Rods, 1.45mm (0.057") Wall Thickness
ROCKERS- High Performance, Stock 1.1:1 Ratio
VALVE COVER- Stock Steel Style, Black
GASKETS- Elring Engine Gasket Set
