Product details

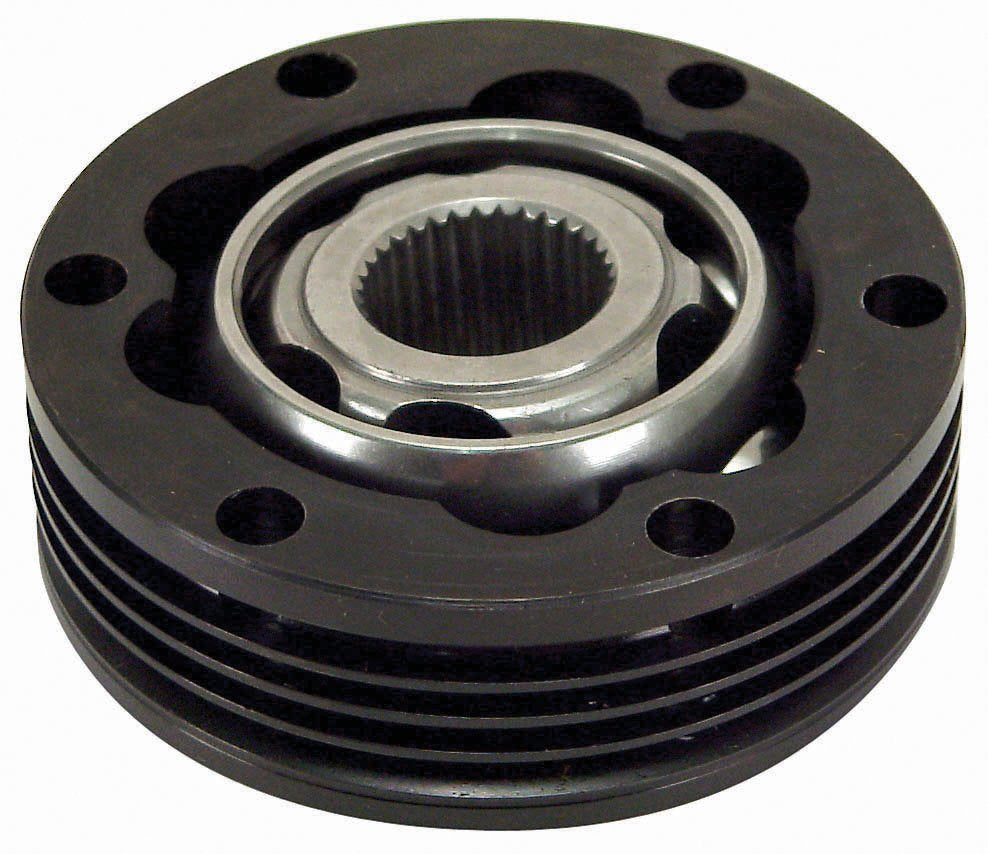

Larger CV joints handle more load and steeper axle angles, but they add rotating mass. EMPI trims that by machining the outside of the outer race, so this joint weighs 6.75 ounces less than P/N 87-9469-B. Cutting rotating weight helps acceleration, much as a lighter flywheel does, and the machined race also helps the joint run cooler under hard use. Internals are a chromoly cage with hardened alloy inner and outer races, precision ground and hand inspected.
Technical Details
- Manufacturer: EMPI
- Manufacturer part number: 98-5094-B
- Outer diameter: 108mm
- Balls: .875 inch
- Inner race: 28 spline
- Mounting holes: six, 10.4mm inside diameter
- Cage: chromoly
- Weight: 6.75 oz lighter than 87-9469-B
Fitment & Compatibility
The fit between the balls and tracks is loose on purpose so the joint can work at maximum angles.
