Product details

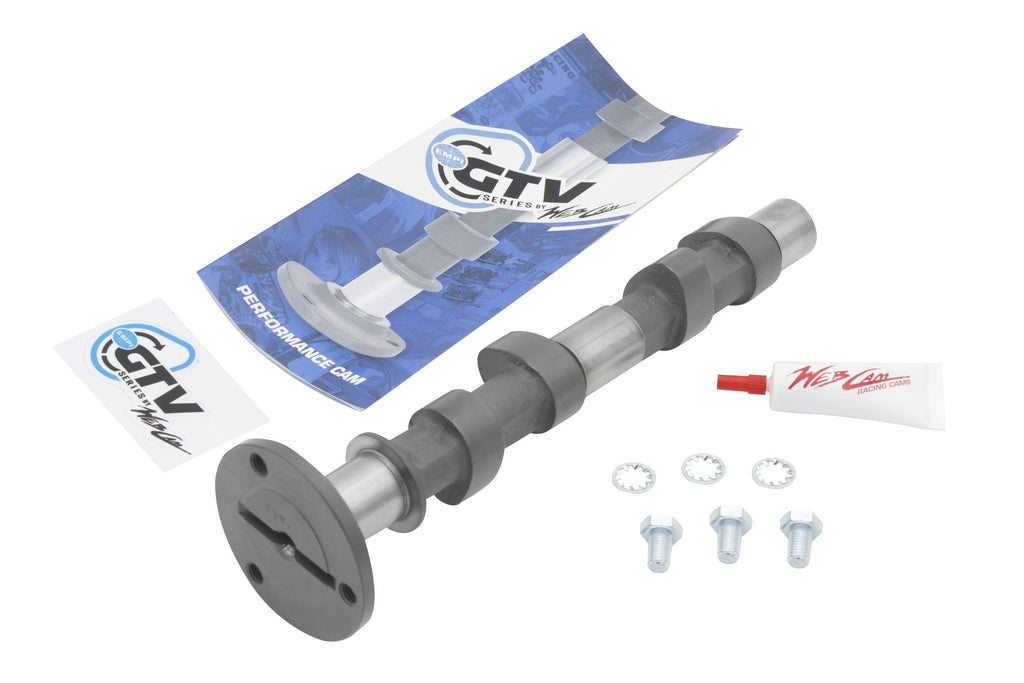

The GTV-86B profile targets the higher-rpm range in large-displacement street, strip and off-road competition builds. The USA-made cam uses ion-nitrided chilled cast iron and is stroker clearanced.
Technical Details
- Cam lift: 0.380 inch
- Valve lift at 1.4:1: 0.532 inch
- Duration: 300 degrees
- Rocker ratios: 1.4:1 or 1.5:1
- Part number: 77-8602-0
Fitment & Compatibility
Match the full engine and valvetrain specification. New compatible lifters, correct spring clearance and verification against the supplied cam card are required during assembly.
Specifications
| UPC | 707924578195 |
|---|---|
| Weight | 3.07 lbs |
