  • Sale
  • $1,539.77
Shipping calculated at checkout.

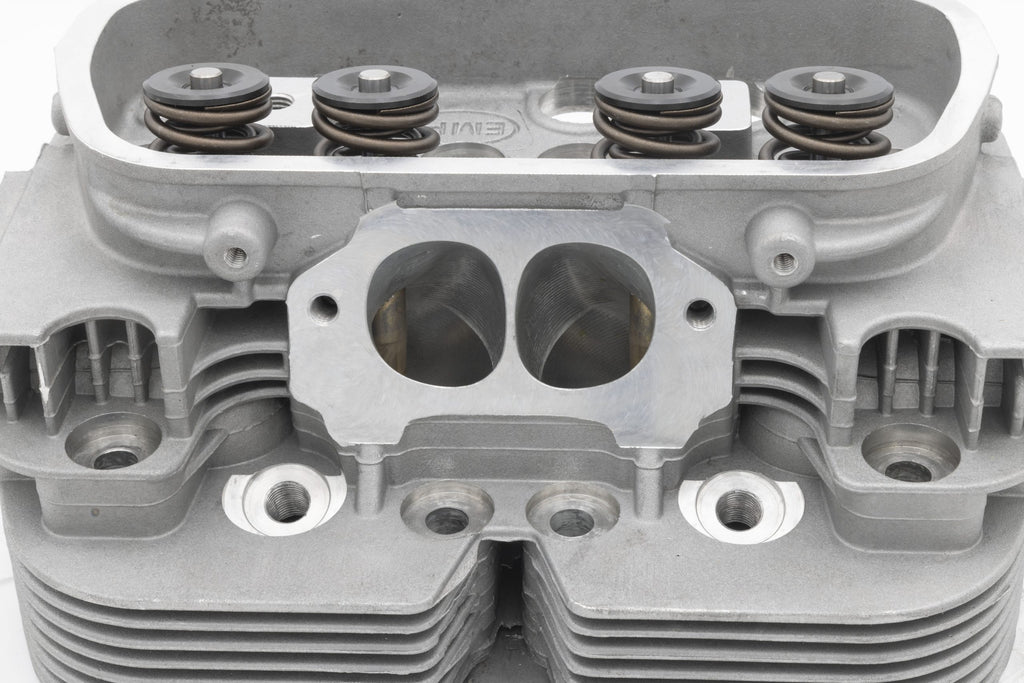

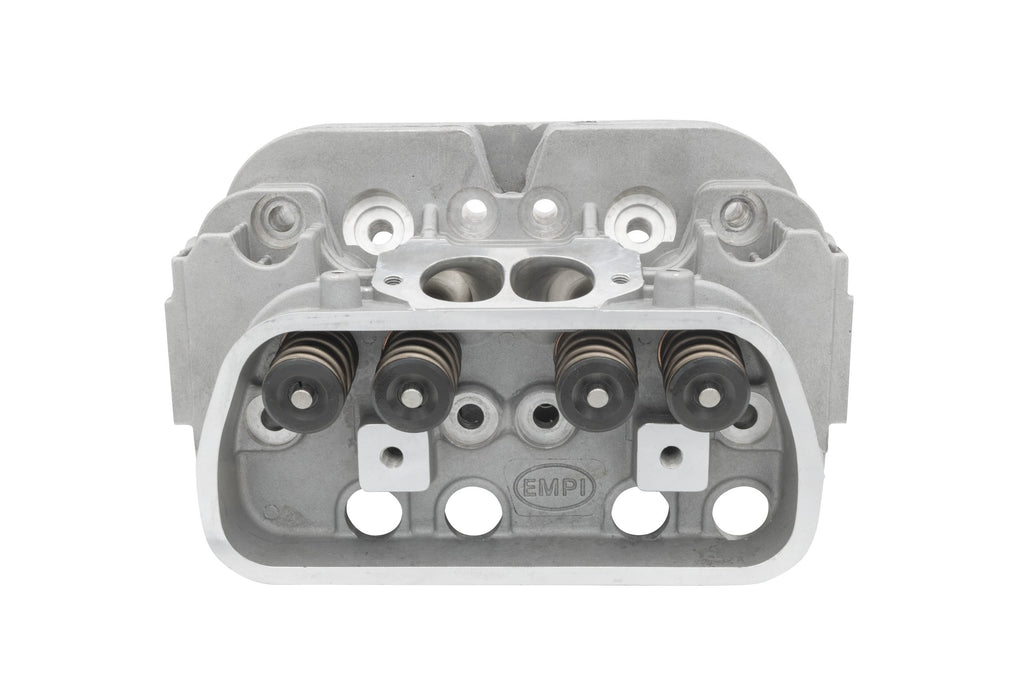

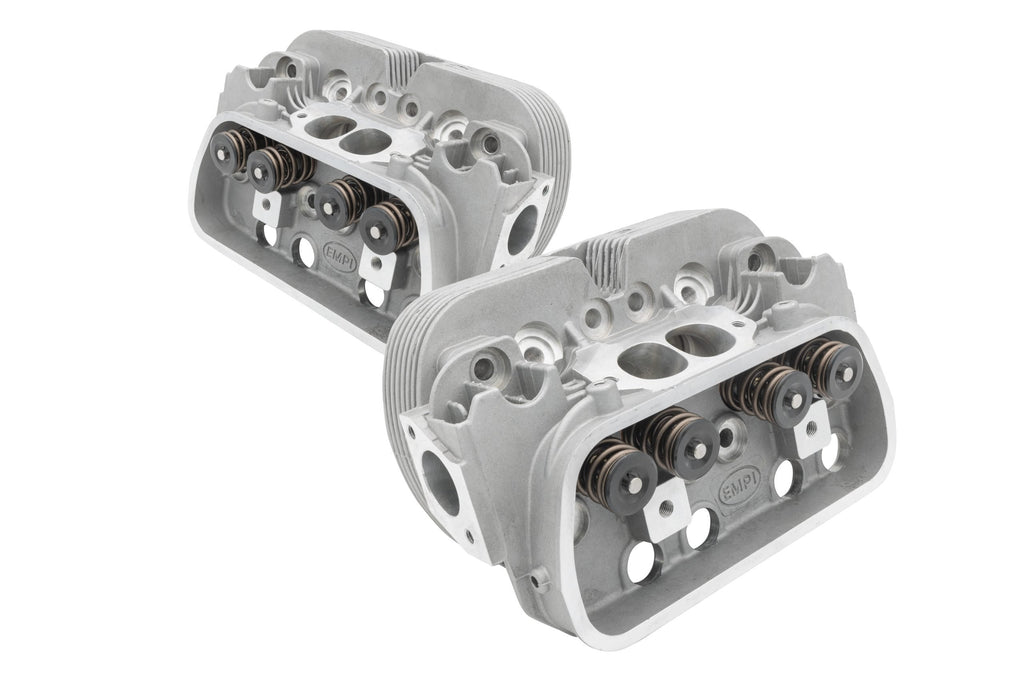

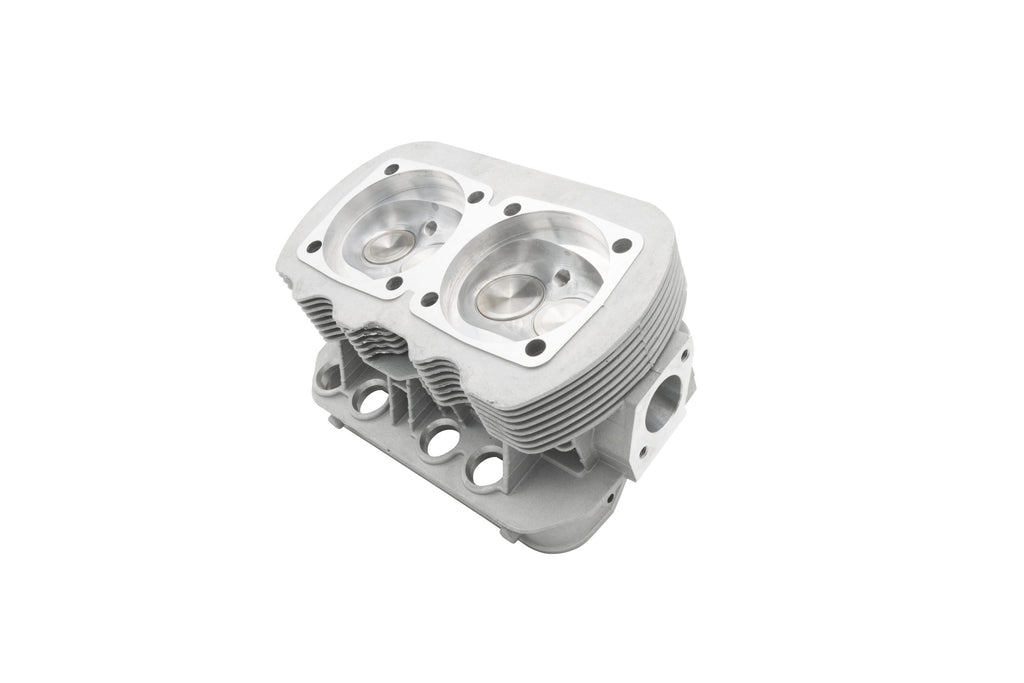

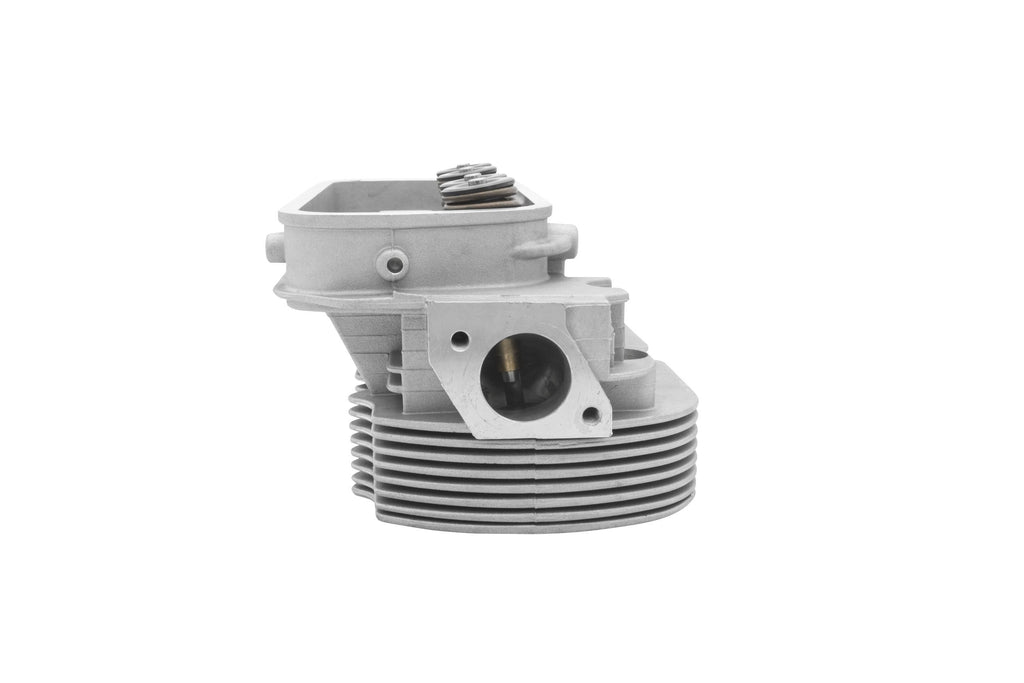

The Stage 1 CNC-ported pair is machined for a 90.5/92 mm bore and 40 × 35.5 mm stainless valves. EMPI lists a 64.5 cc chamber plus 72/80 cc intake/exhaust port volumes.

Technical Details

  • Brand: EMPI
  • Manufacturer Part Number: 98-1430-B
  • Sold As: Pair
  • Bore: 90.5/92 mm
  • Valves: 40 × 35.5 mm stainless steel
  • Chamber volume: 64.5 cc
  • Intake port volume: 72 cc
  • Exhaust port volume: 80 cc
  • Valve springs: Dual
  • Valve job: 3-angle
  • Porting: Stage 1 CNC wedge

Fitment & Compatibility

For a compatible VW dual-port engine build with 90.5/92 mm cylinders. Check valve-train and rocker geometry for the 40 × 35.5 mm stainless steel valve package during assembly.

Specifications

UPC 707924443837
Sold As Pair
