Product details

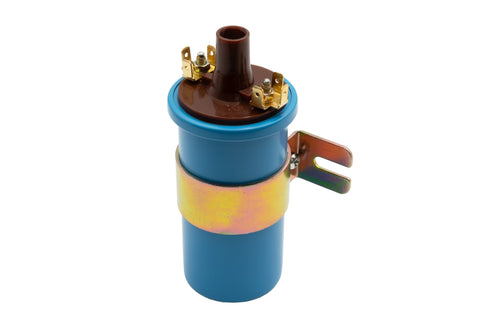

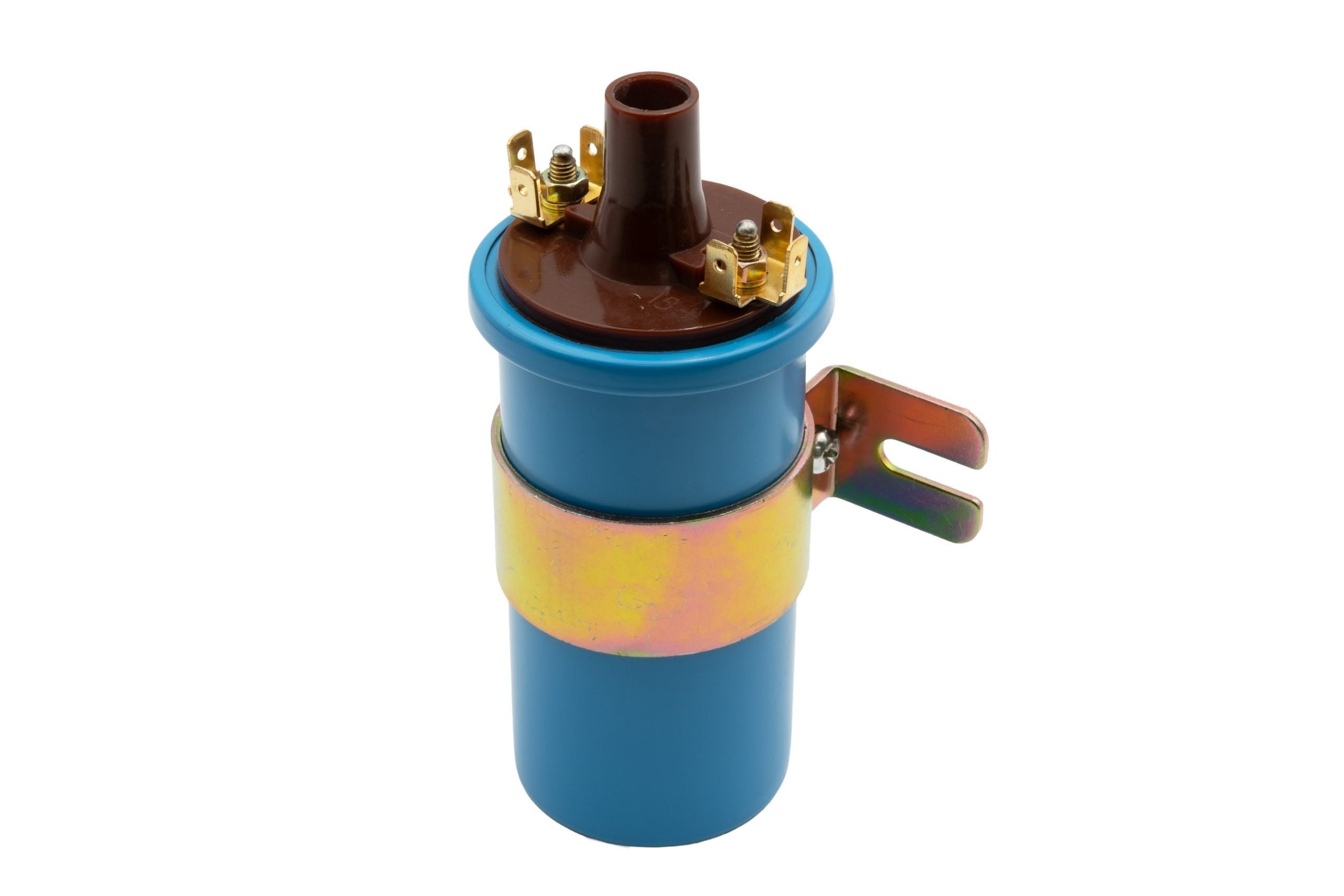

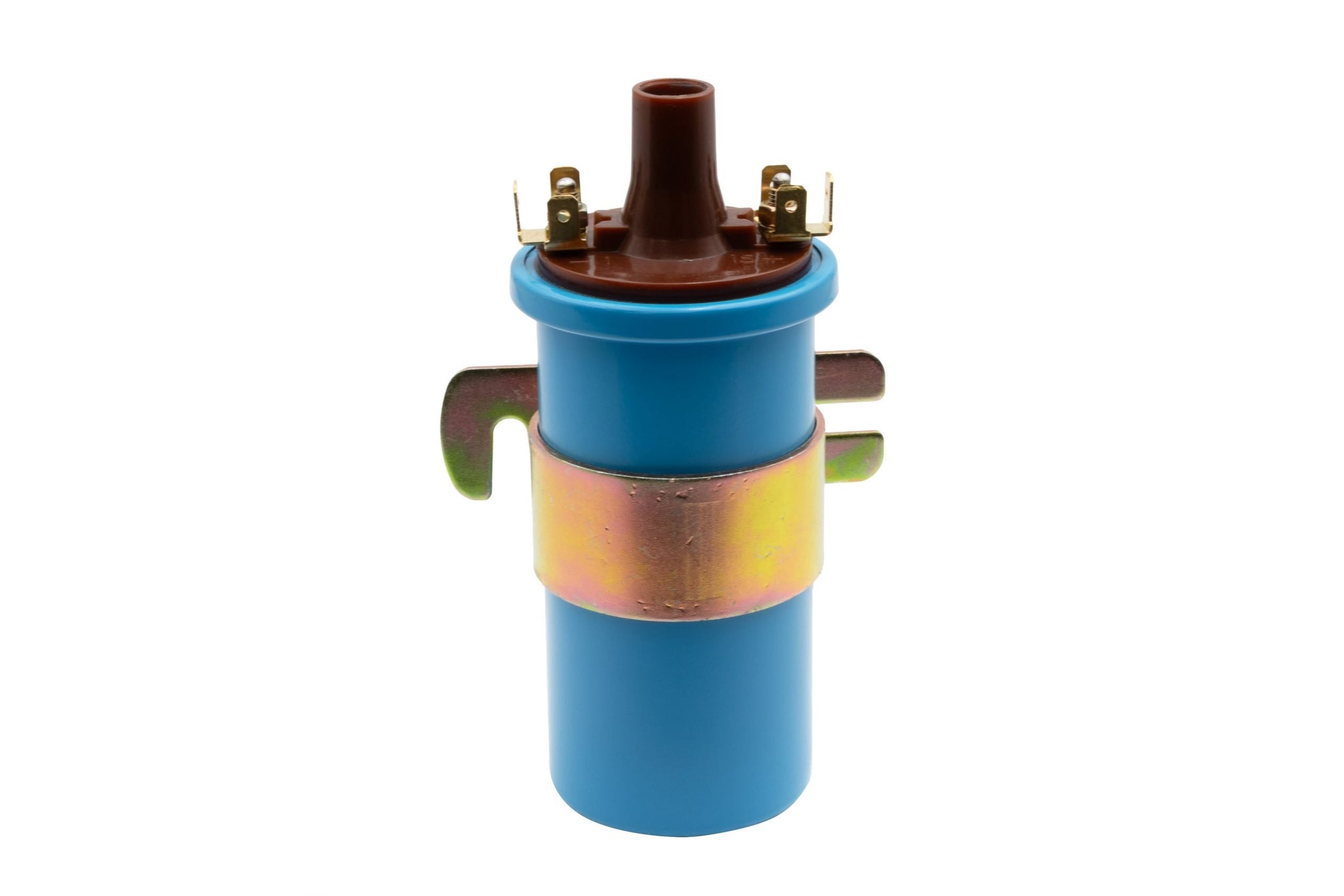

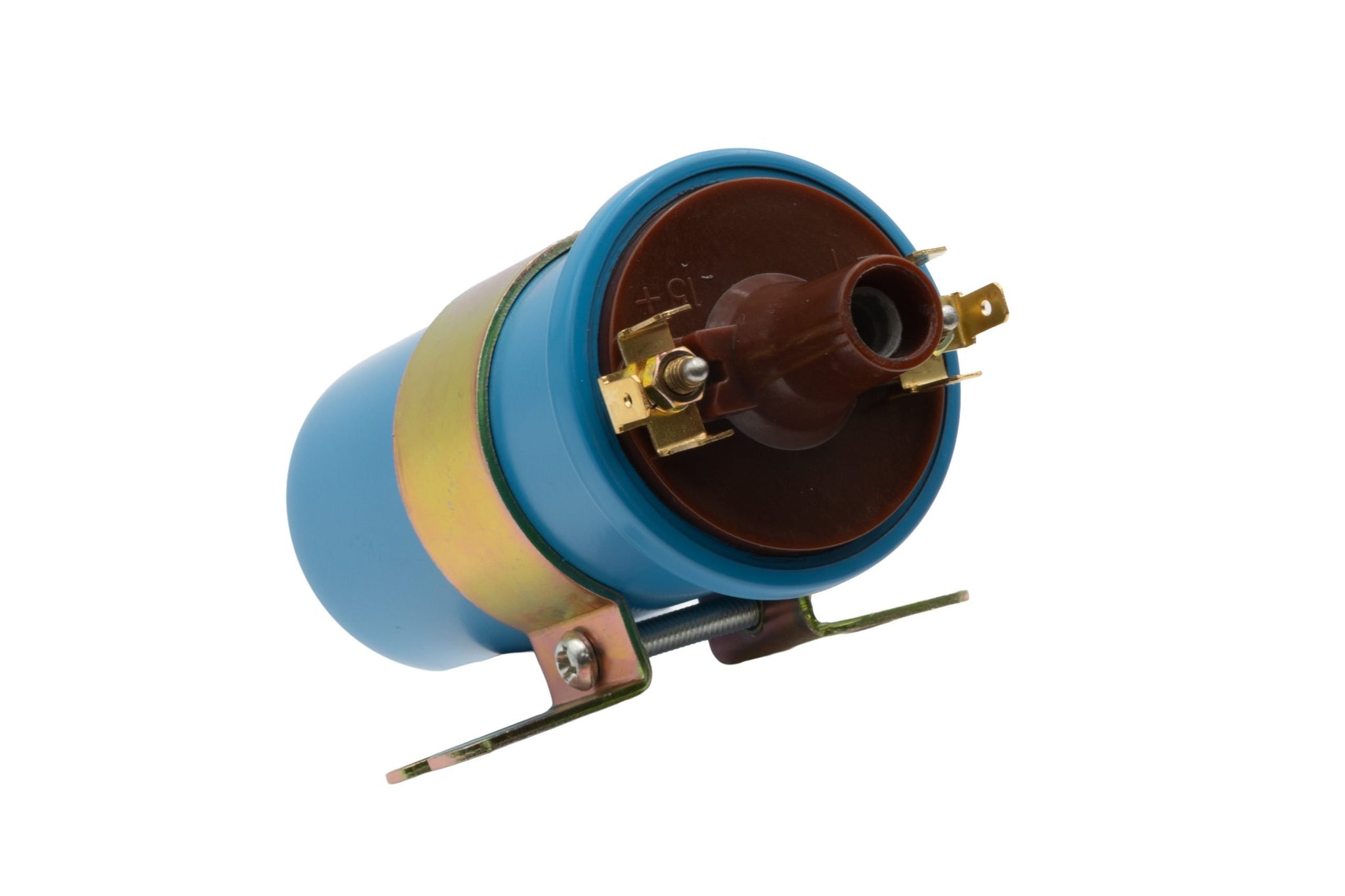

EMPI's 12-volt ignition coil supplies the high-voltage output routed by the distributor to the spark plugs. Its epoxy-filled construction permits inverted mounting without the fluid-leak concern of an oil-filled coil, making mounting orientation a useful distinction when working in a compact engine bay. The 3.4-ohm primary resistance must suit the points or electronic ignition being used.
Technical Details
- Part number: 00-9489-B
- Electrical system: 12V
- Primary resistance: 3.4 ohms
- Rated output: 16,000V
- Body diameter: 55mm
- Included bracket: 14-gauge steel with gold zinc finish and OE-style mounting-hole spacing
- Replaces: EMPI 00-9409-B
Fitment & Compatibility
Suitable for 12V VW Type 1, Type 2, and Type 3 applications and compatible 12V conversions, including Porsche 356, 912, and 914 installations where the ignition specification agrees. Confirm voltage, required coil resistance, terminal connections, and mounting clearance; model year alone does not establish electrical compatibility.
