914-6 GT Inspired
Plumbing Kit – Now it’s easy to add a front-mounted cooler to your
914-6 / conversion and achieve a professional result. Inspired by the 914-6 GT oil cooling system, we developed our plumbing kit to look, fit, and function like a factory production solution. This is the factory option the factory never offered!
The plumbing kit includes everything you need to go from the tank/engine up to the passenger side from the wheel well.

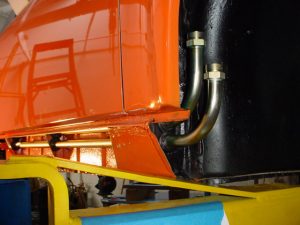

Hard Lines – CNC-formed hard oil lines route beneath the passenger side rocker panel. This keeps the oil (and heat) out of the cabin.

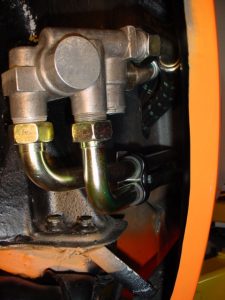

Thermostat – The genuine Porsche thermostat mounts in the passenger rear wheel well in front of the tire. It includes a pressure bypass to protect the cooler and ensure the engine doesn’t starve for oil in the event of blockage in the cooler section.
Metric Fittings – Factory-appearing hoses and Porsche-type 30mm fittings are used throughout. 30mm fittings deliver high-flow capacity and are used on all 911 engines from 72-89.

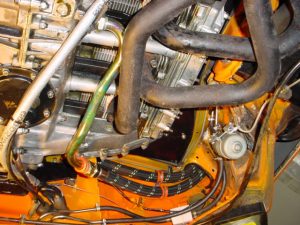

Engine Scavenge Pipe – Fits headers and even clears the factory 6 heat exchangers. Scavenge pipe has 30mm fittings at both ends. Engine case fitting is easily converted to matching 30mm if needed.

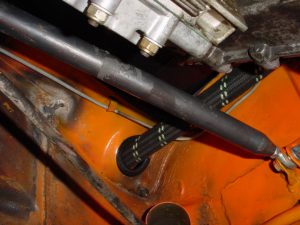

Oil Tank – We offer choices for the oil tank connection, including 26mm, 30mm, and AN type hose ends.
Mounting – Included grommets and edge molding dress all pipe/hose pass-throughs to protect and prevent vibration noise. Includes a mounting bracket to support the thermostat and Adel clamps for dressing the hoses.
Some cutting is required for installation. Templates included.

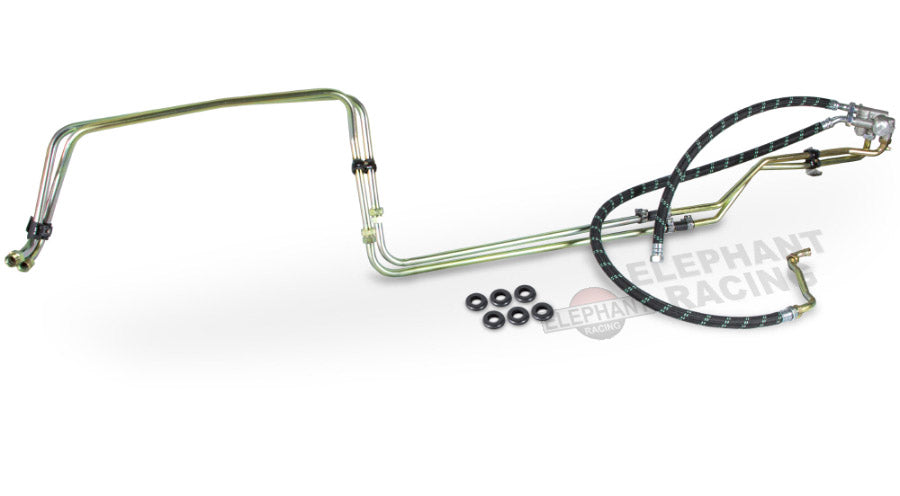

Kit Contents
- Hard Line kit
- Thermostat
- Scavenge pipe
- Scavenge pipe to thermostat line
- Tank to thermostat line
- Support bracket kit
- Instructions & Templates
