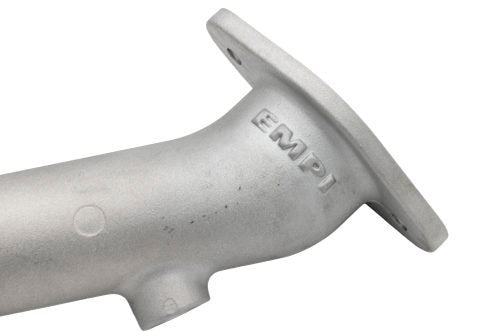

Cast aluminum manifold from the EMPI dual 40K kit, side view
EMPI dual 40K manifold kit flange and carburetor mounting face
Single manifold from the EMPI dual 40K kit for single-port heads

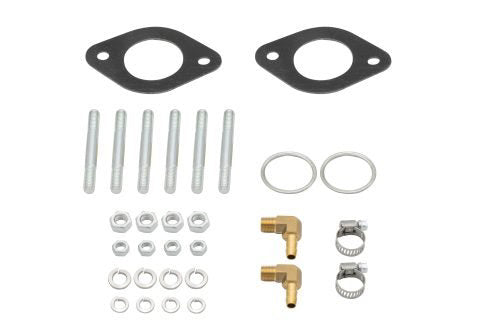

EMPI dual 40K manifold kit shown with hardware
Balance hose and clamps from the EMPI dual 40K manifold kit

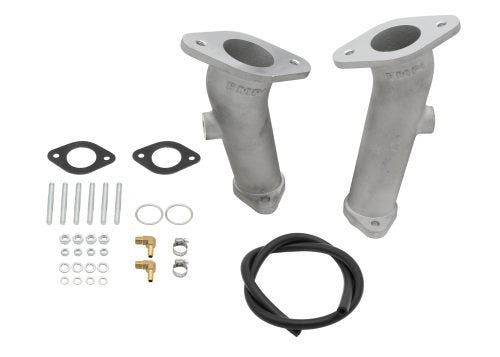

EMPI dual 40K manifold kit contents laid out
Alternate view of the EMPI dual 40K manifold kit
EMPI dual 40K carburetor manifold kit for single-port VW engines
Cast aluminum manifold from the EMPI dual 40K kit, side view
EMPI dual 40K manifold kit flange and carburetor mounting face
Single manifold from the EMPI dual 40K kit for single-port heads
EMPI dual 40K manifold kit shown with hardware
Balance hose and clamps from the EMPI dual 40K manifold kit
EMPI dual 40K manifold kit contents laid out
Alternate view of the EMPI dual 40K manifold kit

EMPI Dual 40K Carburetor Manifold Kit for Single-Port VW Engines

SKU: 43-4413-0

$199.95 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

These cast-aluminum manifolds mount dual EMPI 40K or Kadron-style carburetors on single-port VW cylinder heads. Each manifold carries one carburetor beside the engine, replacing the center-mounted intake for a dual-carburetor conversion. Their offset design allows the same manifold form to serve either bank, and the kit includes the balance-hose connections needed to link the two sides.

Technical Details

  • Part number: 43-4413-0
  • Material: A356 cast aluminum
  • Carburetor mounting threads: M8 x 1.25
  • Head flange holes: For M6 studs
  • Equalizer ports: 1/8-inch NPT
  • Included: Manifolds, mounting hardware, gaskets, clamps, and Buna-N hose

Fitment & Compatibility

For Type 1 engines with single-port heads, including 1966–1970 Type 1 and 1963–1970 Type 2 applications, and EMPI single-port long block 98-0489-B. Confirm the installed heads and carburetor flange pattern. Carburetors and throttle linkage are separate from this manifold kit.
