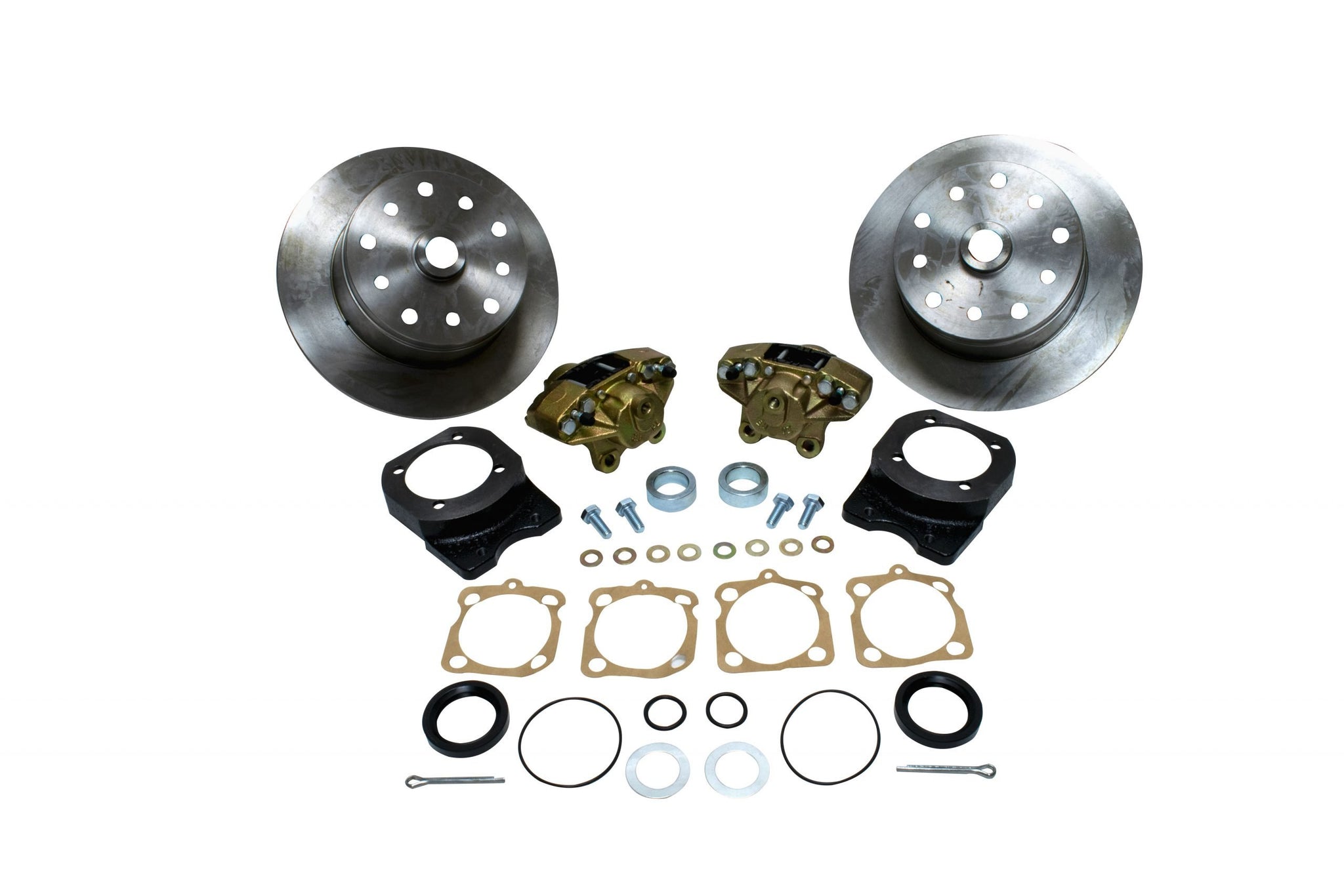

EMPI Deluxe Rear Disc Brake Kit, Double-Drilled 5x130 / 5x4.75, for VW I.R.S. 1968 and Later and 1968 Swing Axle

This is the broadest double-drilled rear kit in the series, spanning the 1968 swing axle and every I.R.S. Beetle after it. Rotors accept either 5x130 with 14x1.5mm studs or 5x4.75 inch with 12mm studs.

The deluxe designation means cast mounting brackets rather than stamped steel.

Technical Details

• Manufacturer: EMPI
• Manufacturer part number: 22-2911-F
• Bolt patterns: 5x130 and 5x4.75 inch
• Rotors: Double-drilled
• Brackets: Heavy duty cast
• Wheel studs: Not included

Fitment & Compatibility

Use with 15 inch wheels or larger on 1968 swing axle and 1968-and-later I.R.S. rear ends.
