CSF Radiator and Dual-Fan Kit for Porsche 944 / 944 Turbo / 968 / 924S

Select this CSF radiator and fan package for the listed manual-transmission transaxle Porsches. The radiator uses the naturally aspirated 944 height with a higher-capacity core; supplied billet spacers adapt the mounting arrangement for the taller original 944 Turbo radiator.

Technical Details

• Fabspeed catalog reference: 7088-8180.

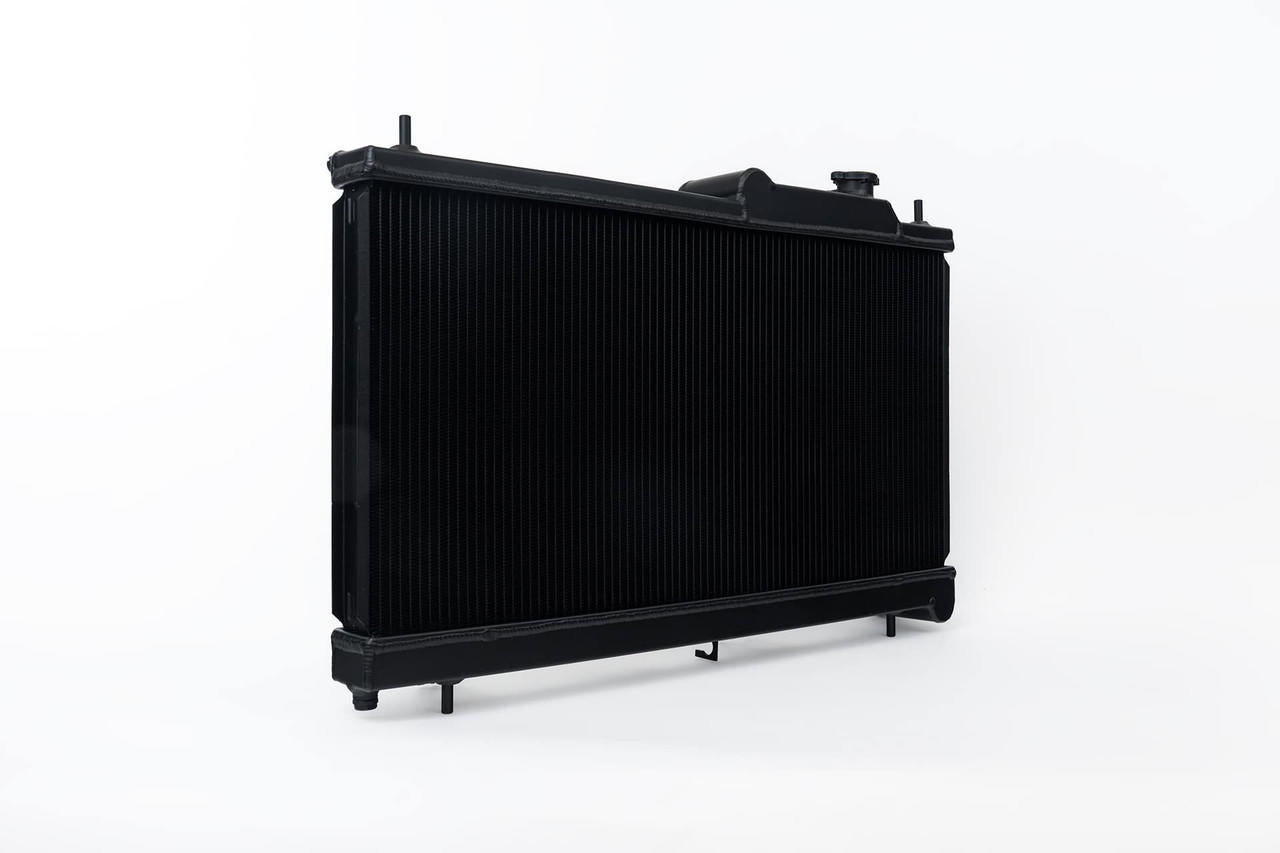

• Two-row 42 mm dual-pass aluminum radiator.
• B-Tube coolant passages and 6.5 mm multi-louvered fins.

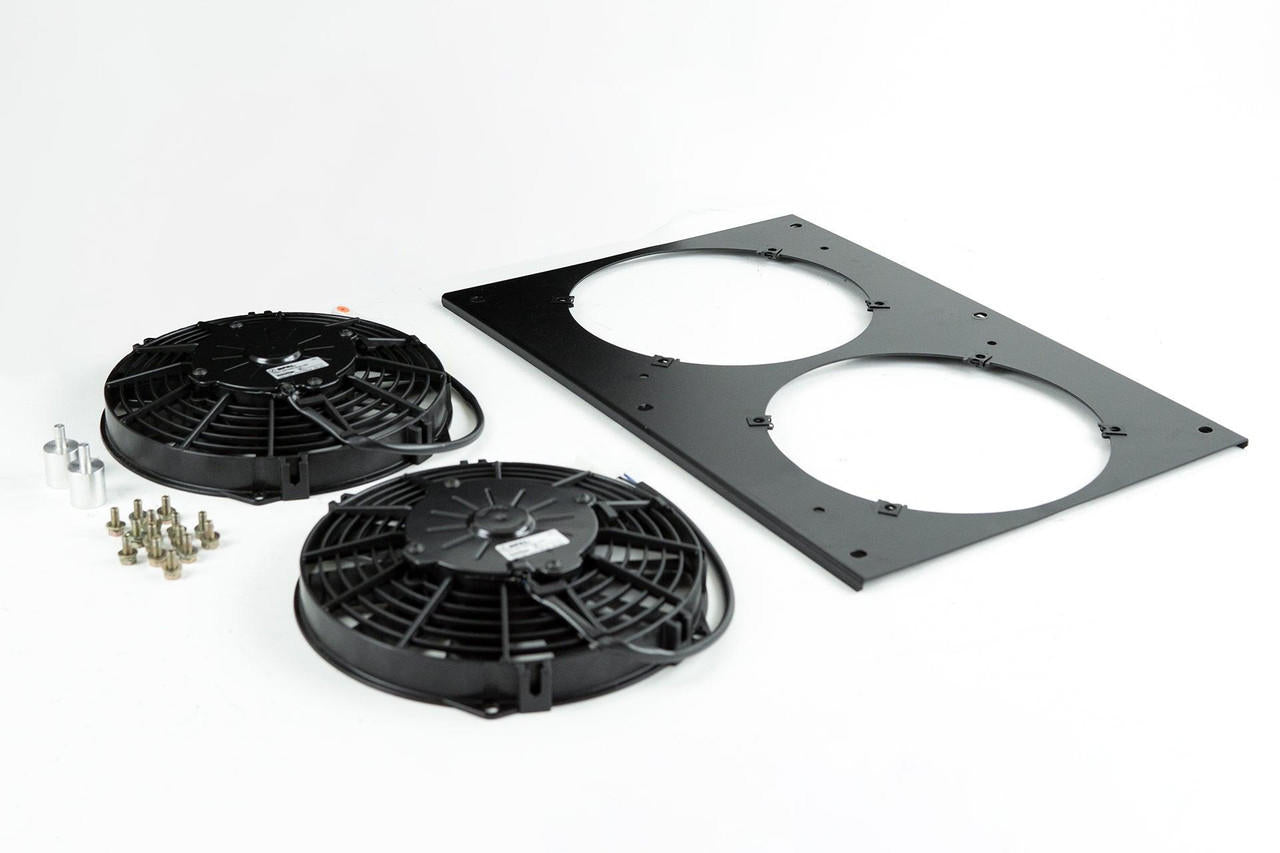

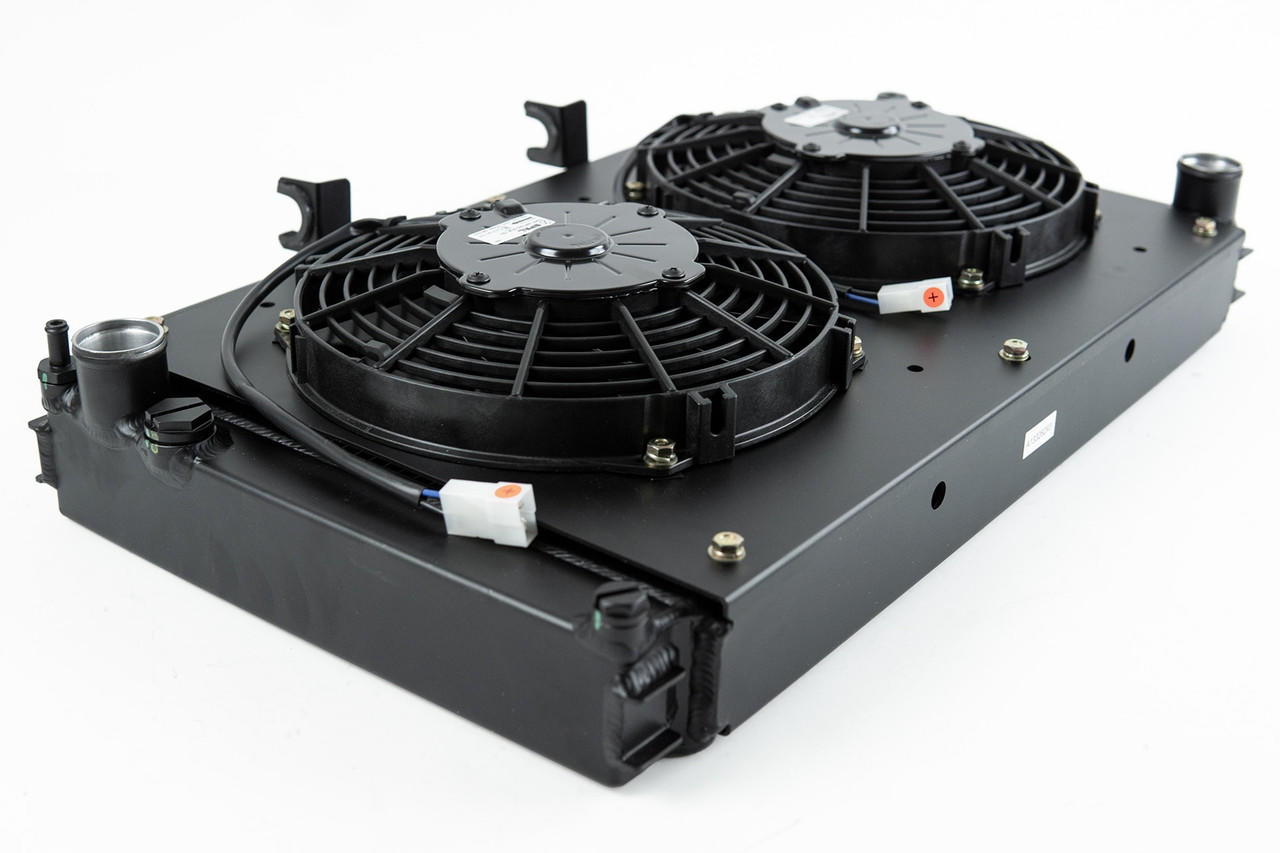

• Includes low-profile dual 9-inch SPAL fans and laser-cut shroud; stated combined flow is 1,180 CFM.
• Fans are pre-wired with matching original-style connectors.
• Billet mounting spacers included for the 944 Turbo arrangement.
• Adjustable top cross-over-tube brackets and upgraded yellow-zinc hardware.
• Satin-black TIG-welded aluminum construction.
• 1983–1985 manual cars require hose 944.106.245.02.
• Manual transmissions only; confirm original hoses, fan connectors and radiator mounting layout.

For help matching this component, contact PMB Performance with your VIN and photos or references for the component being replaced. Our team draws on over 20 years of parts and fitment experience.

Fitment & Compatibility

Use the application details below together with the original component and any existing modifications.
