CSF Aluminum Radiator for Ferrari F430 – Single Unit

Replace one matching Ferrari F430 radiator with the CSF aluminum unit. It fits either supported side, but the listed price covers one radiator; order two if both sides are being replaced.

Technical Details

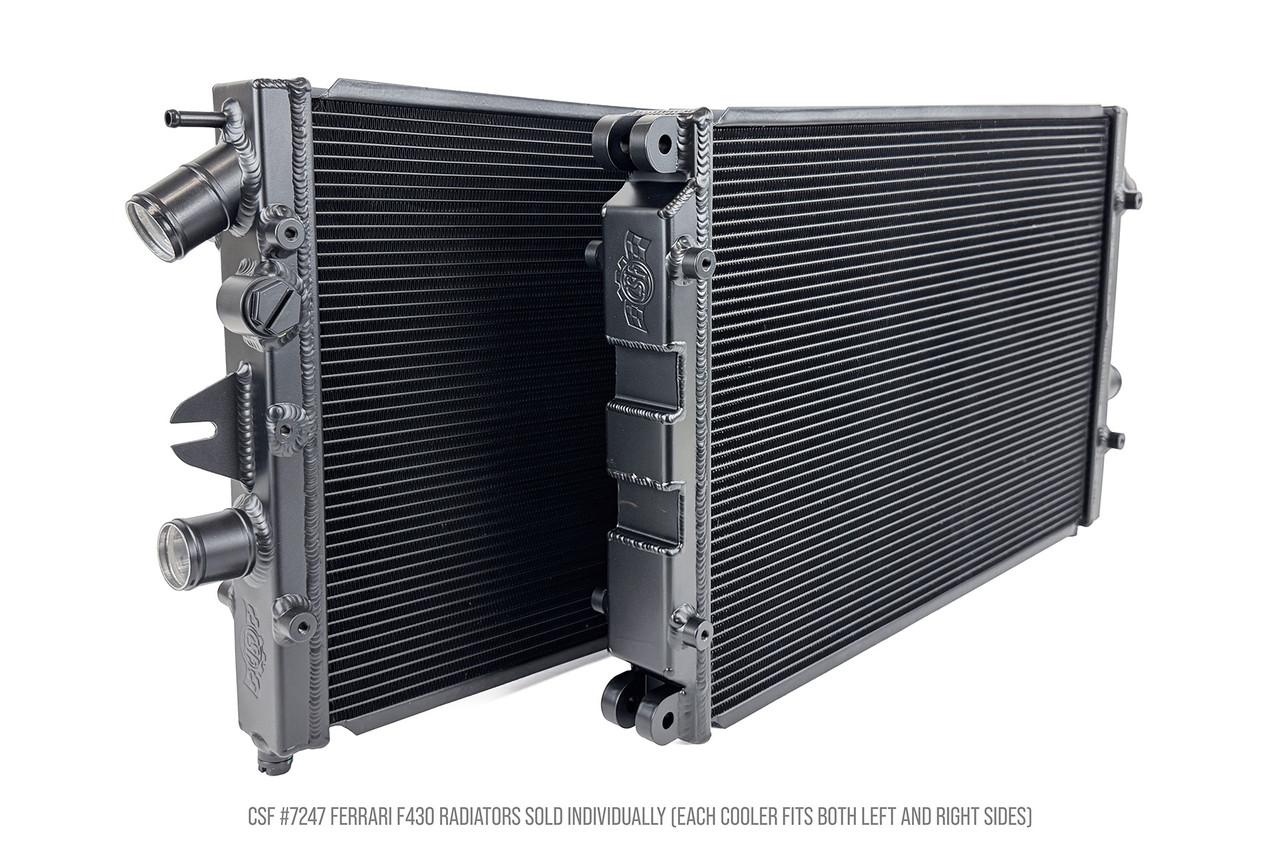

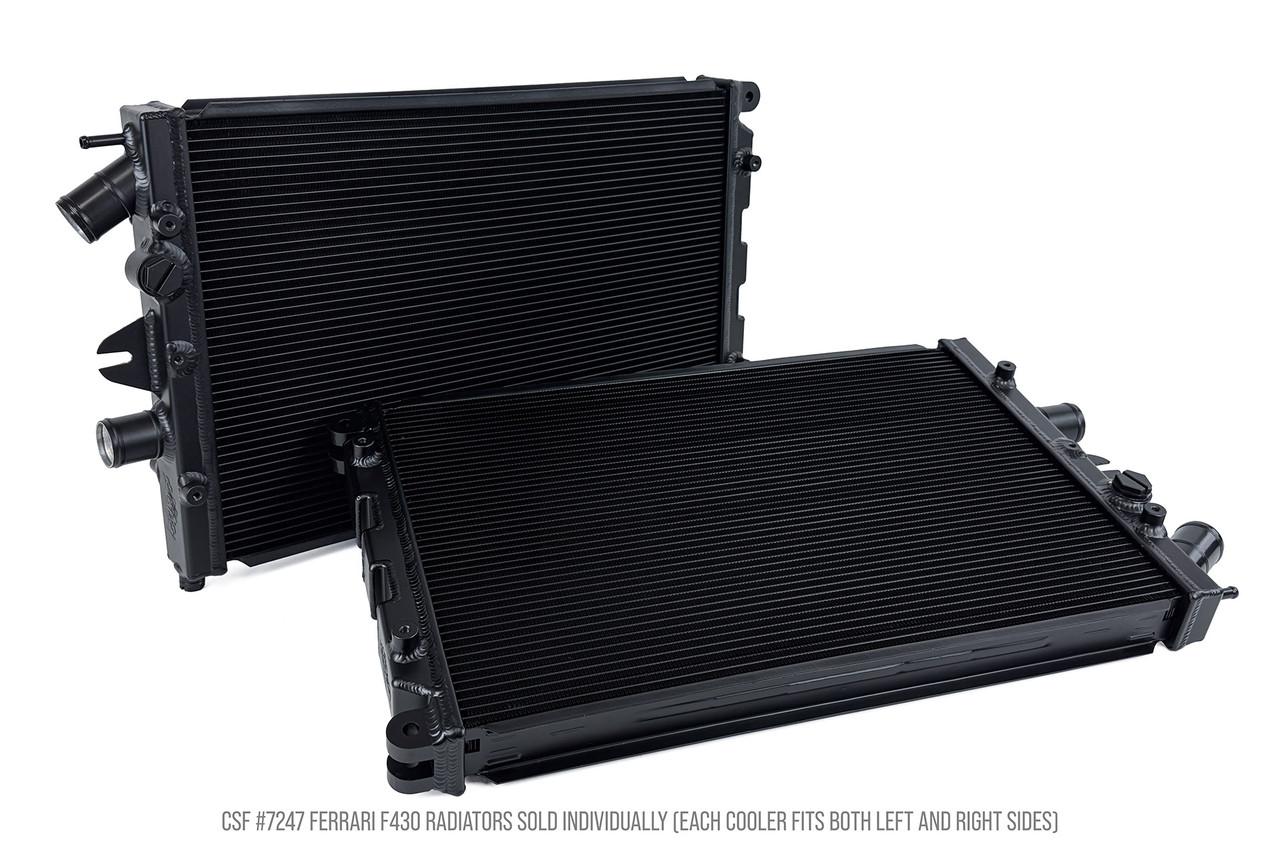

• One CSF 7247 radiator is supplied; the matching design serves either F430 side.
• Order two units for left-and-right replacement. The original assembly reference must match 763790, 194078 or 223954.

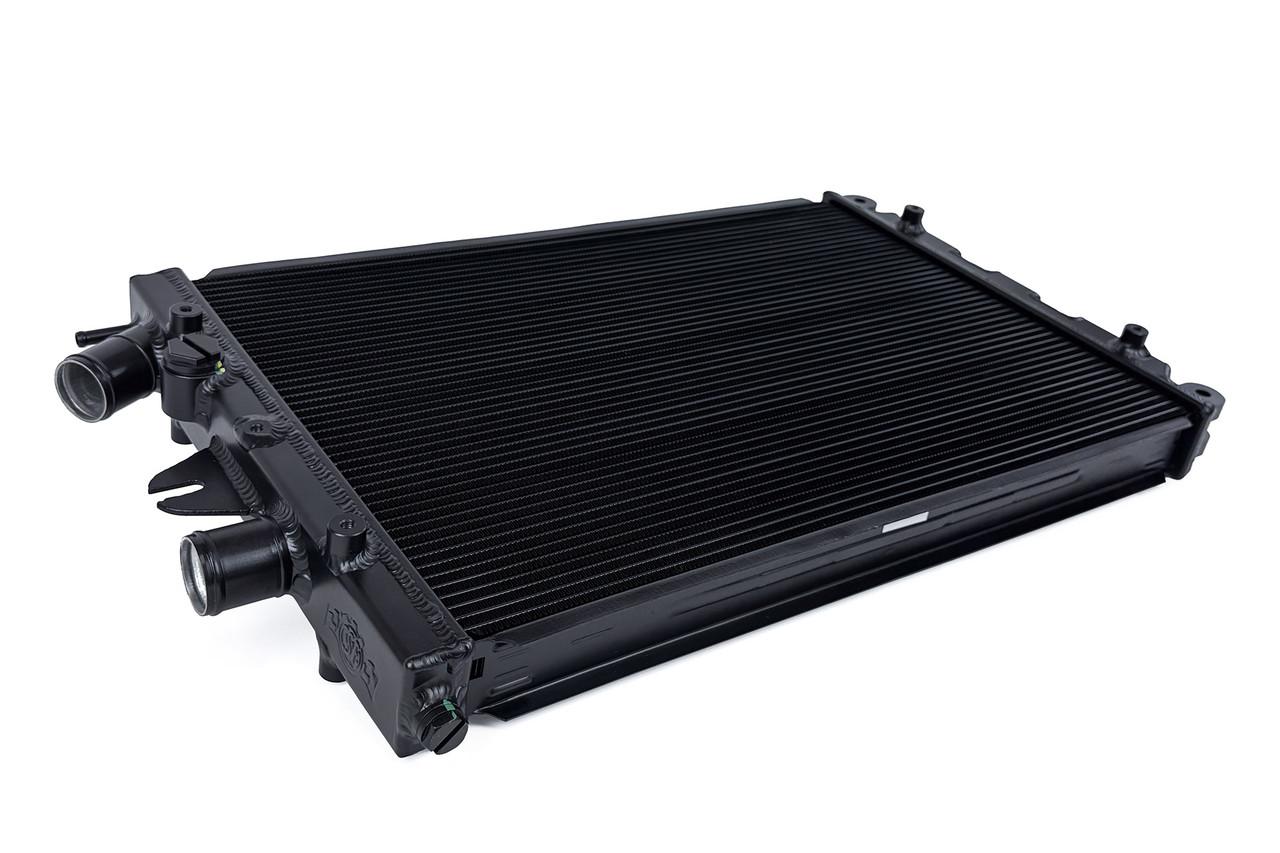

• 42 mm two-row B-Tube core and multi-louver fins in a welded aluminum assembly.

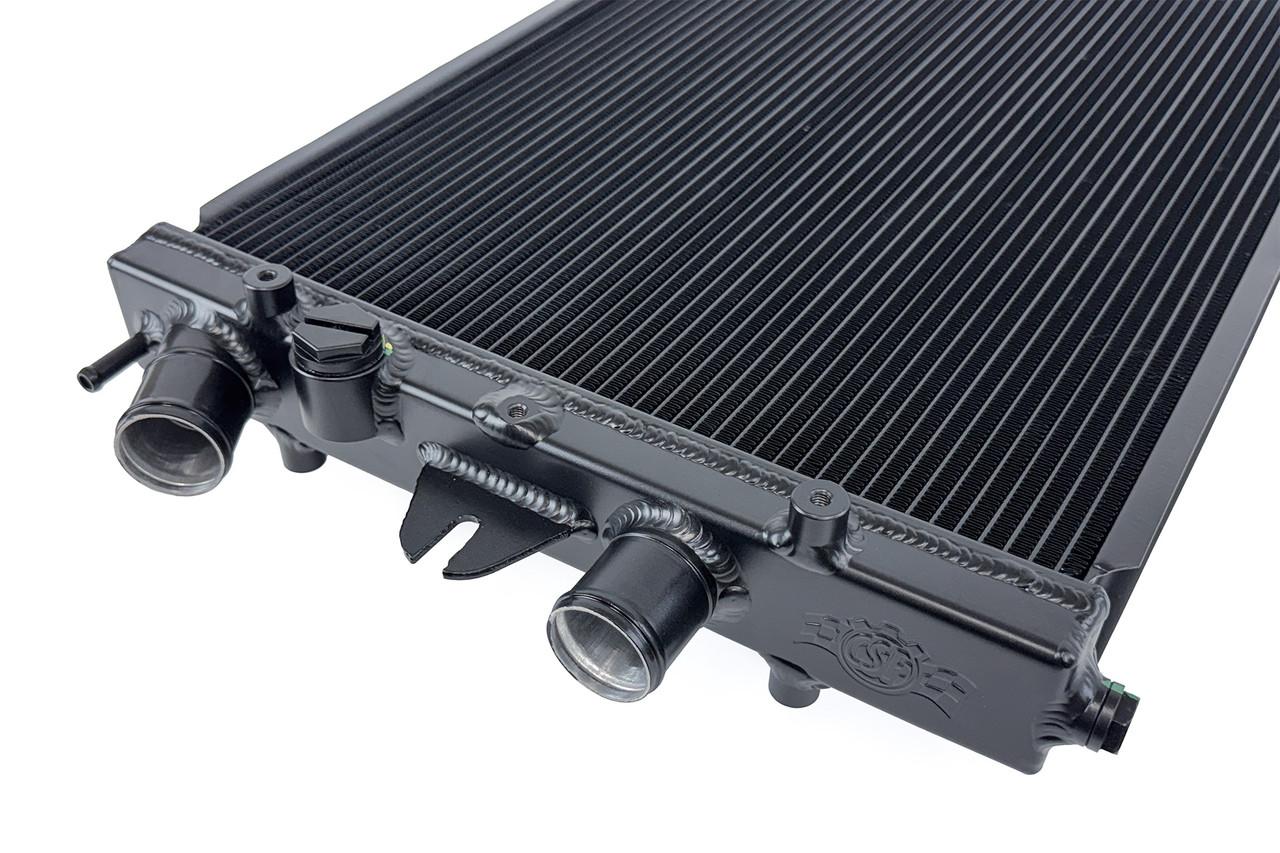

• Uses matching double-barbed hose connections and a plugged M22 × 1.5 temperature-sensor port.
• Each unit is leak/pressure tested. Two-year limited CSF warranty applies subject to its terms.
• Confirm the delivered finish and exact special-version application before ordering.

For help matching this component, contact PMB Performance with your VIN and photos or references for the component being replaced. Our team draws on over 20 years of parts and fitment experience.

Fitment & Compatibility

Use the application details below together with the original component and any existing modifications.
