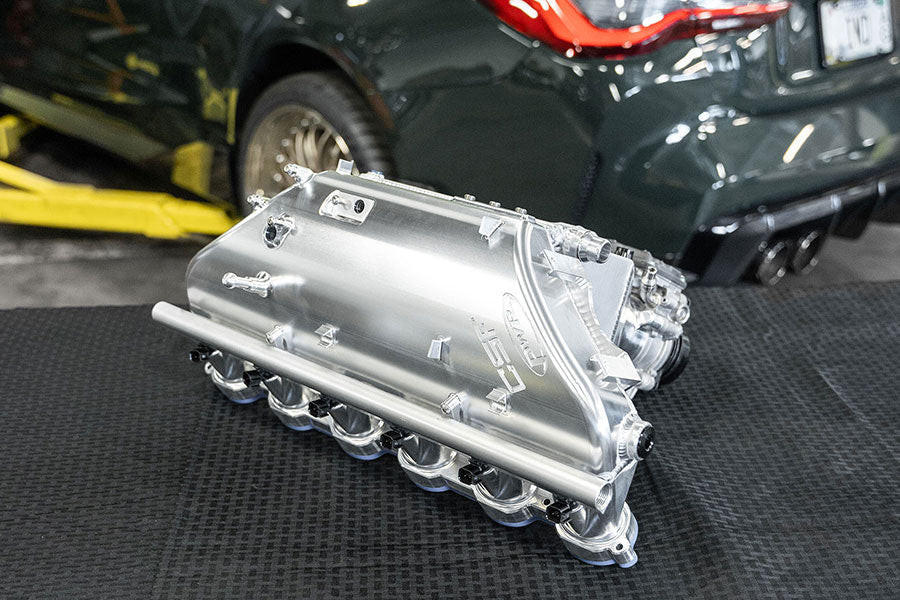

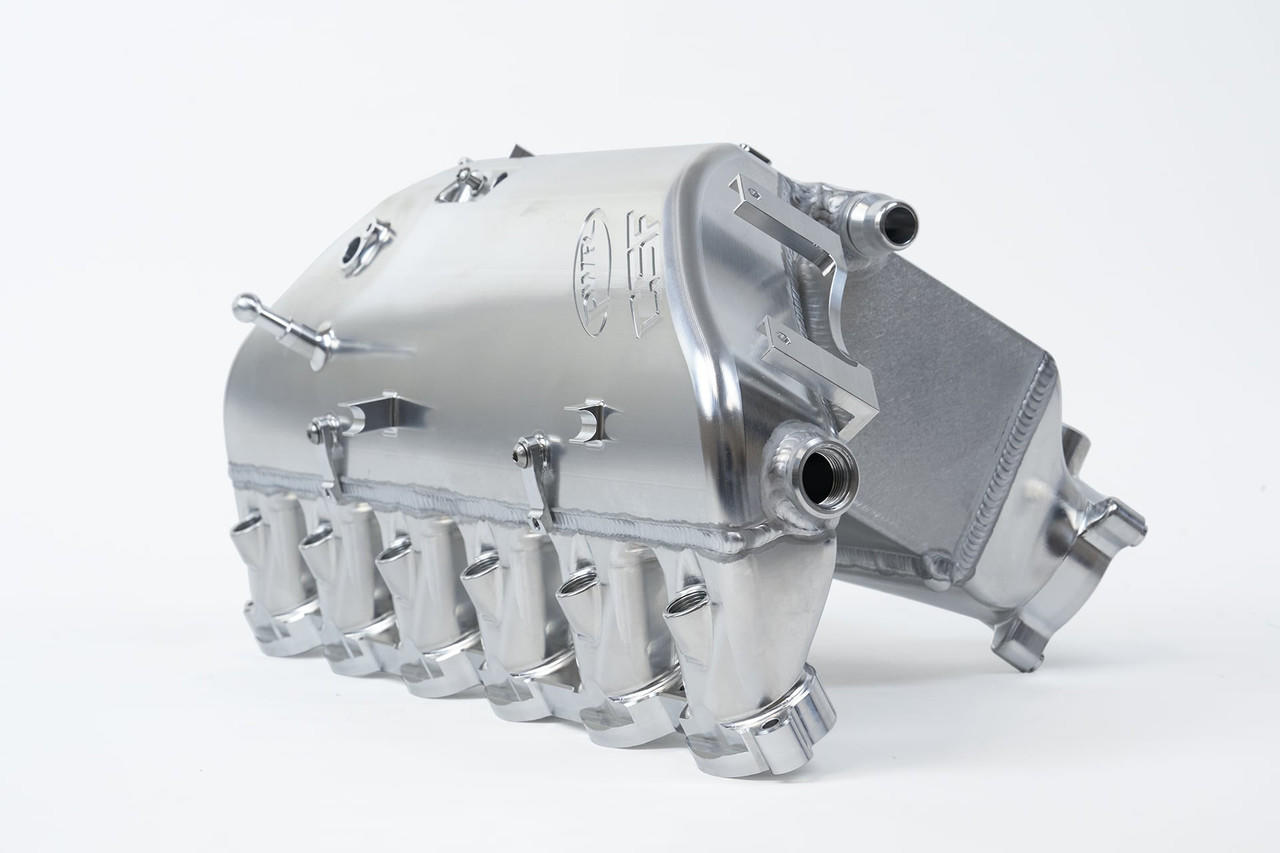

CSF S58 Charge-Air-Cooler Manifold for BMW M2 / M3 / M4 / X3 M / X4 M

Replace the S58 charge-air-cooler manifold with CSF’s billet Level-Up assembly. It combines a PWR bar-and-plate intercooler core with provisions for optional port injection and nitrous or methanol systems, allowing those features to remain blocked off when not used.

Technical Details

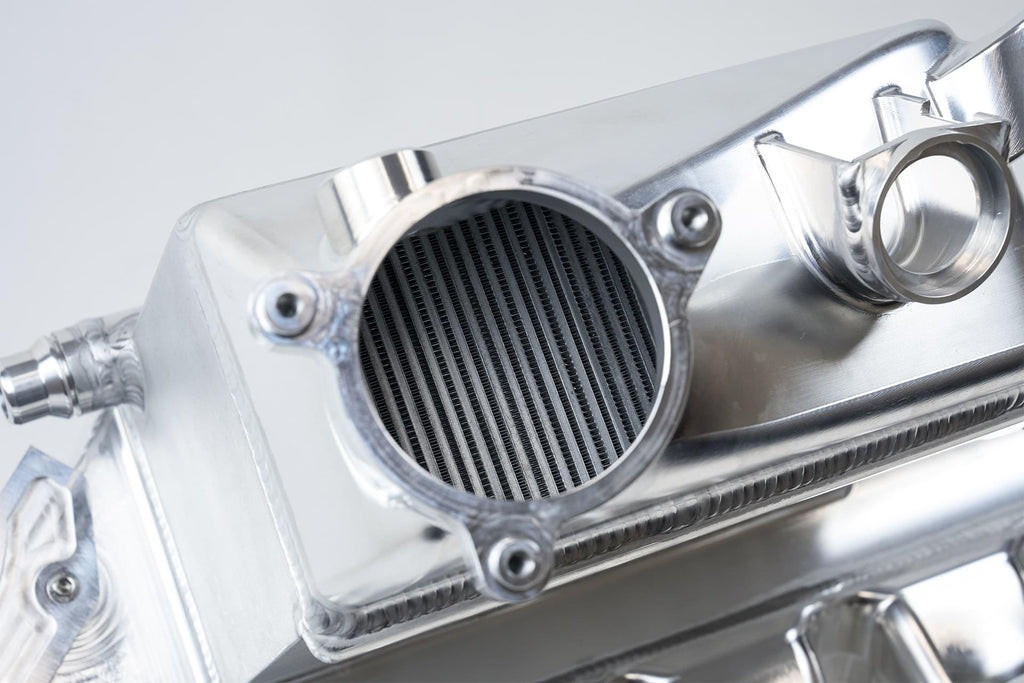

• CNC-machined billet construction with PWR intercooler core.
• Core pressure tested to 120 psi by the manufacturer.
• Integrated top-feed fuel rail and injection ports; supplied block-off components allow unused ports to remain closed.
• KIYLEX thermal-rejection spacer included.
• Integrated bleed access and parameter/vacuum provisions.
• Maintains access to the spin-off oil filter.
• Includes required installation brackets, hardware and instructions.
• Choose Raw or Crinkle Black from the listed options.
• Optional injection systems require their own compatible equipment and calibration; those complete systems are not included.

With over 20 years of parts experience, PMB Performance can help check the application. Share your VIN and photos or references for the component being replaced before ordering if the match is uncertain.

Fitment & Compatibility

Use the application details below together with the original component and any existing modifications.
