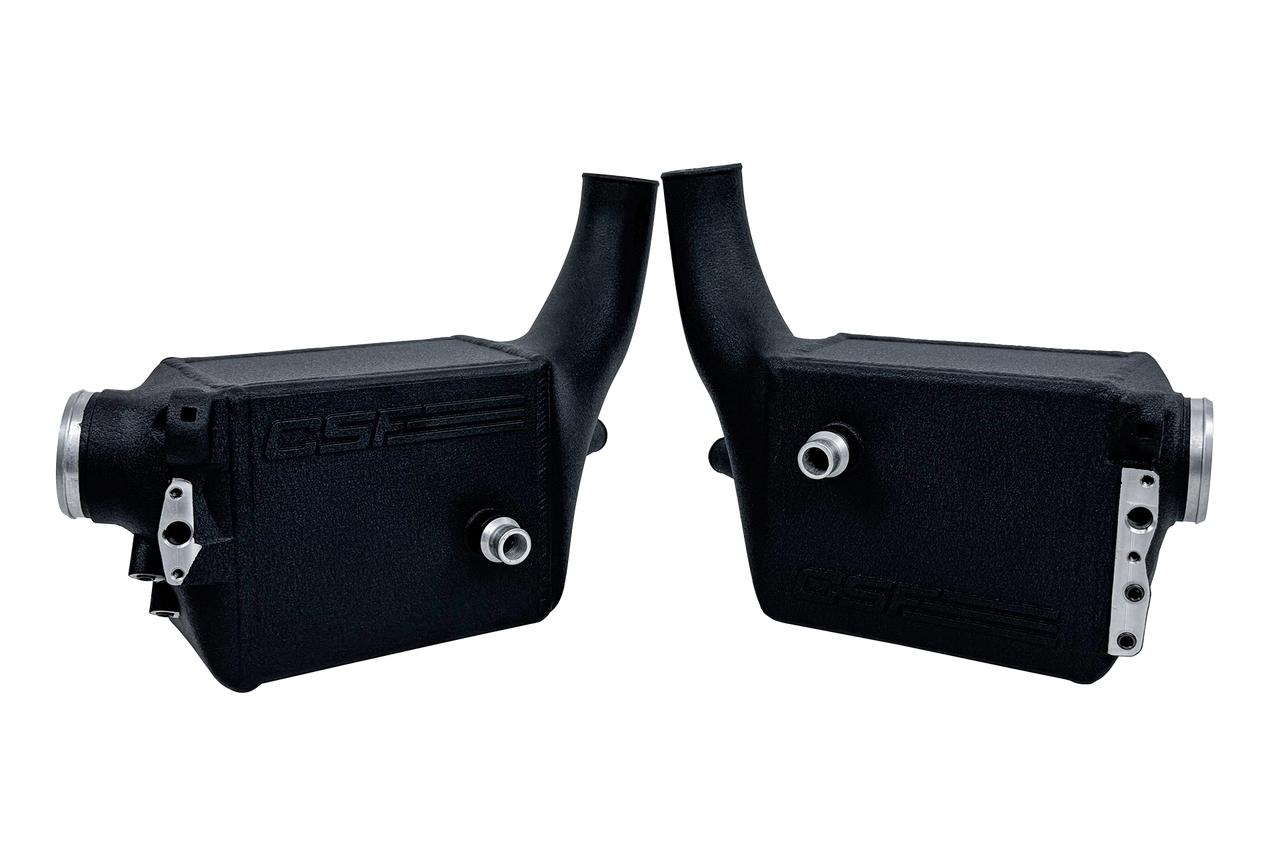

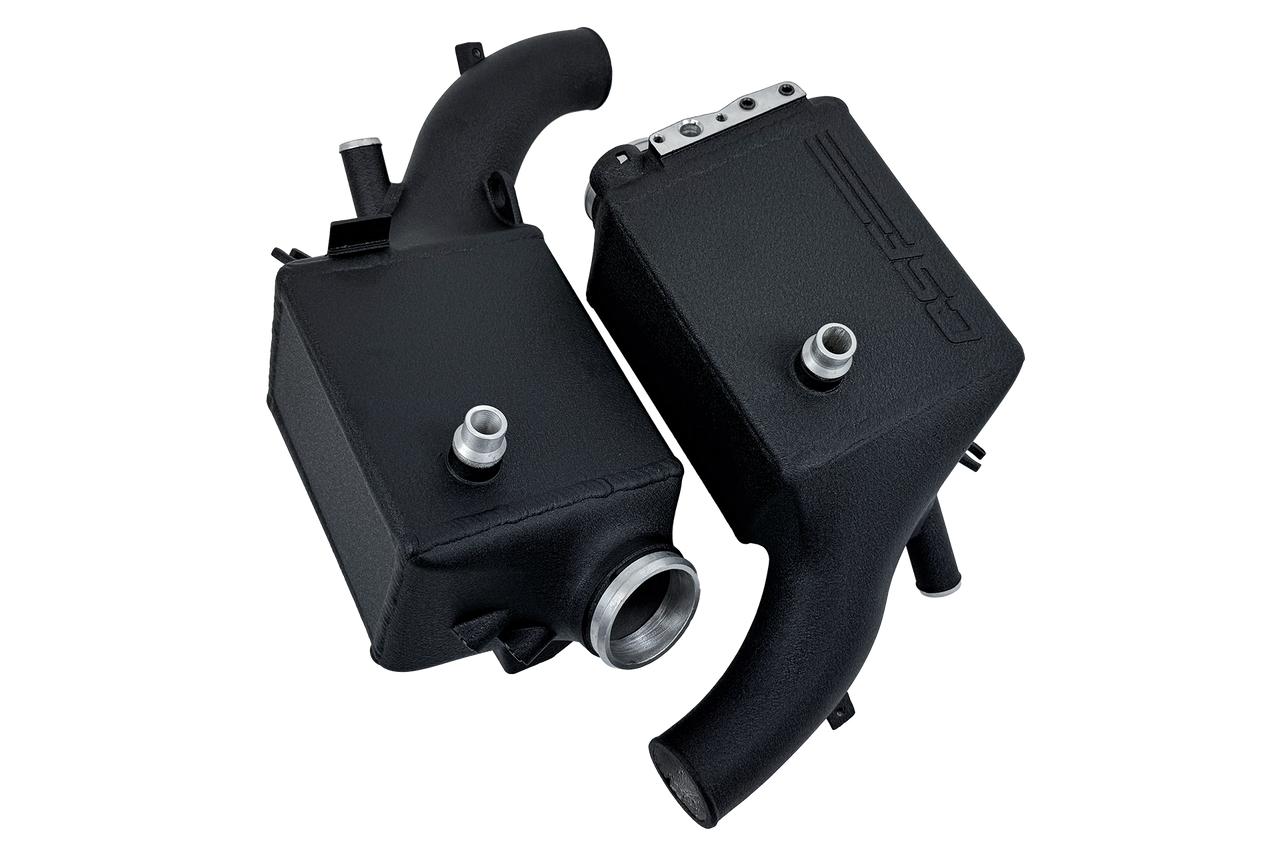

CSF Charge-Air Cooler Pair for BMW G90 / G99 M5 (2025+)

Replace both G90/G99 M5 liquid-to-air charge coolers with the CSF pair matched to the hybrid S68 installation. Minor fitting modifications are required: the resting pins need shaving and the air-balancing tube needs the manufacturer’s specified trimming.

Technical Details

• Fabspeed catalog reference: 8351.

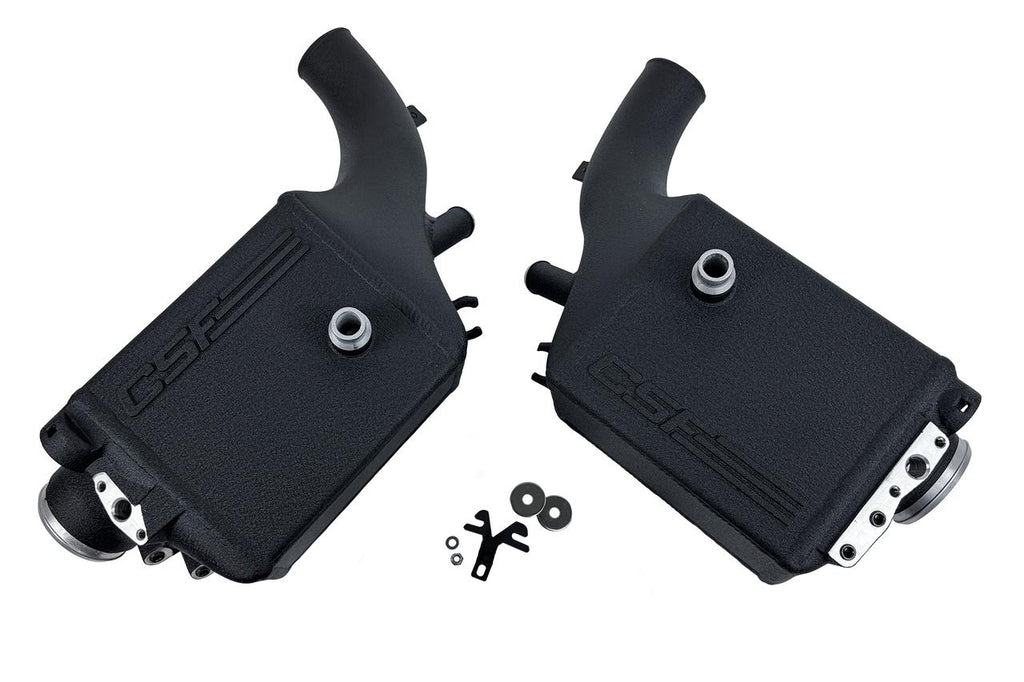

• Complete left/right set with installation hardware; CSF reference 8351.
• Larger liquid-to-air cores and integrated inlet charge pipes.
• Original-style quick-connect coolant connections and sensor ports.

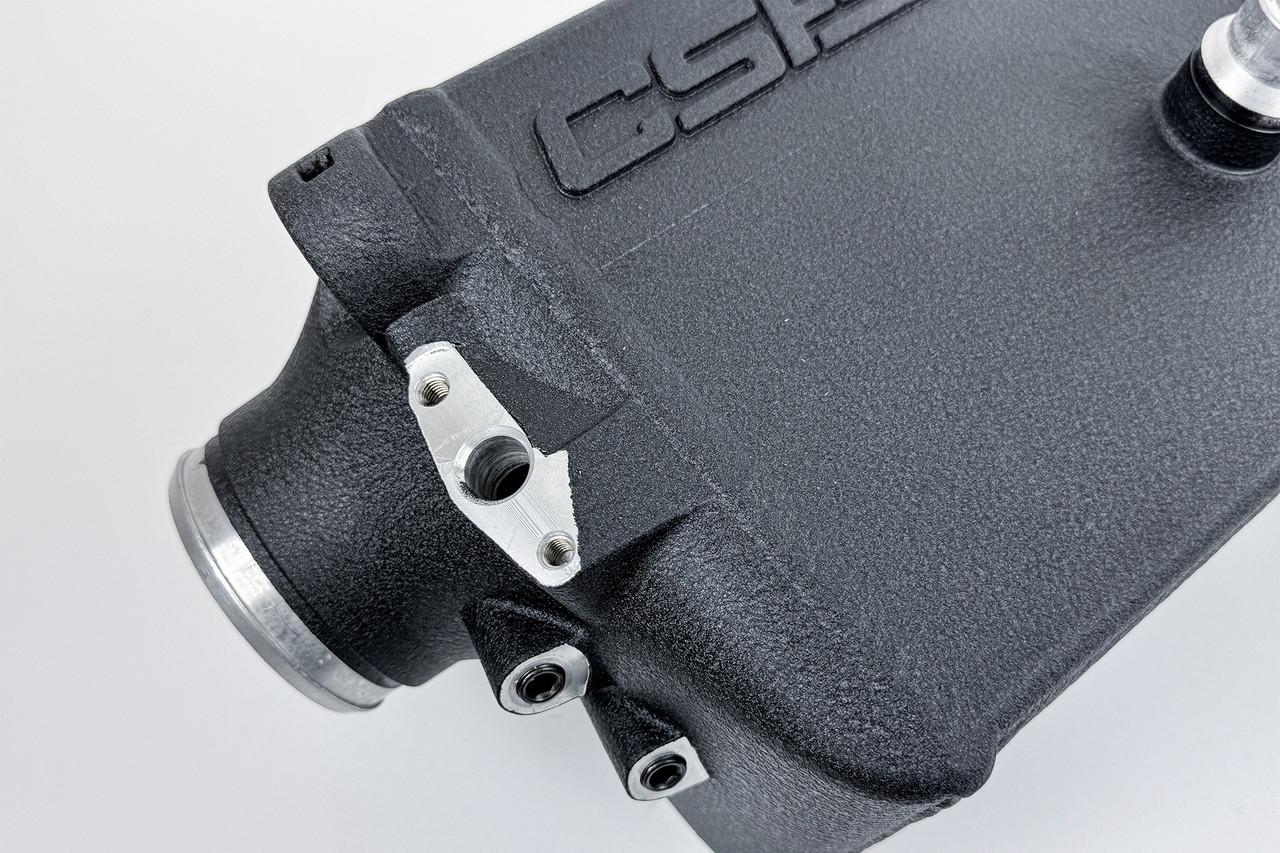

• Dual 1/8 NPT ports per cooler; keep unused ports correctly sealed.
• Crinkle-black finish.
• Original references 17515A2C232 right and 17515A2C233 left.
• Mounting-pin shaving and balancing-tube trimming required; fine adjustments affect final positioning.
• Use current installation instructions and qualified fitting.
• Limited lifetime CSF warranty, subject to terms.

PMB Performance brings over 20 years of parts and fitment experience. Send your VIN and photos or references for the component being replaced for help confirming the correct configuration.

Fitment & Compatibility

Use the application details below together with the original component and any existing modifications.
