Product details

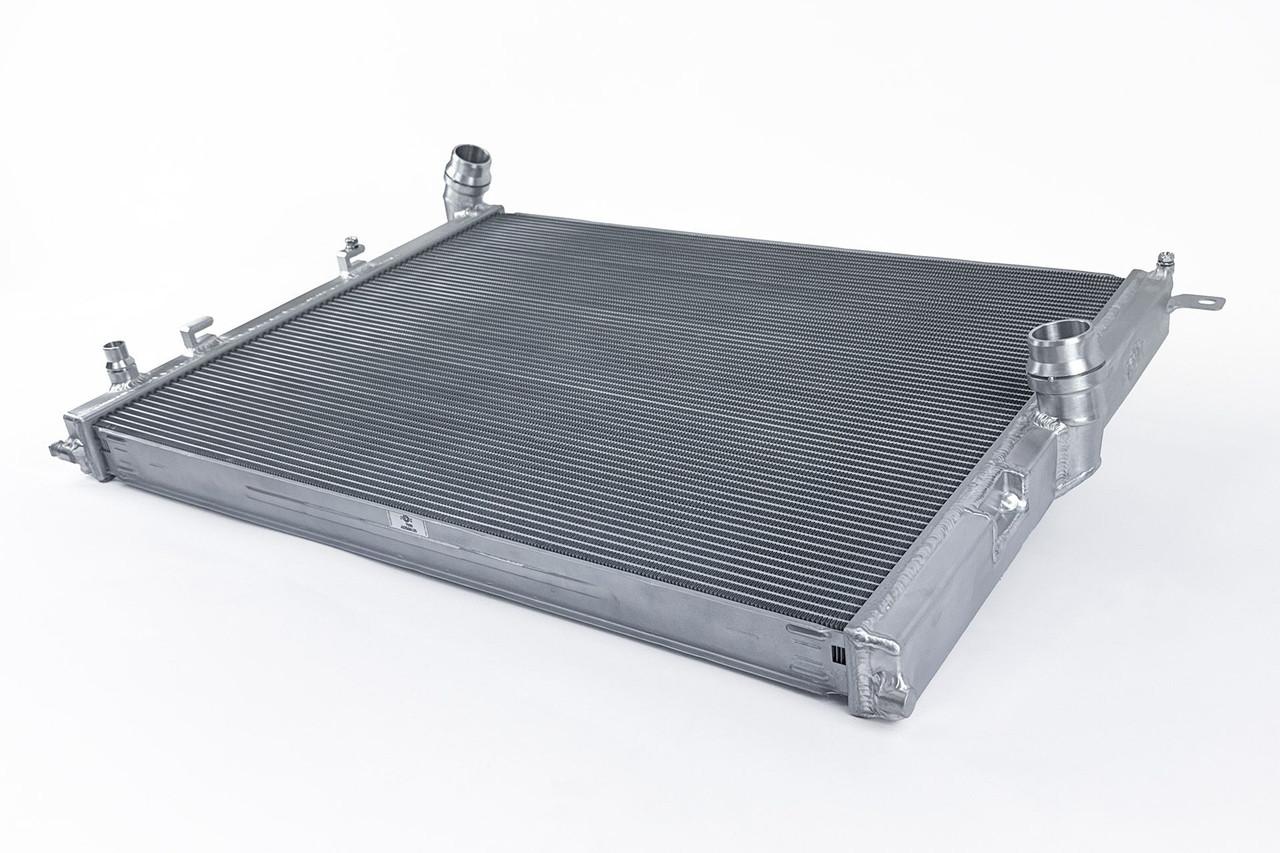

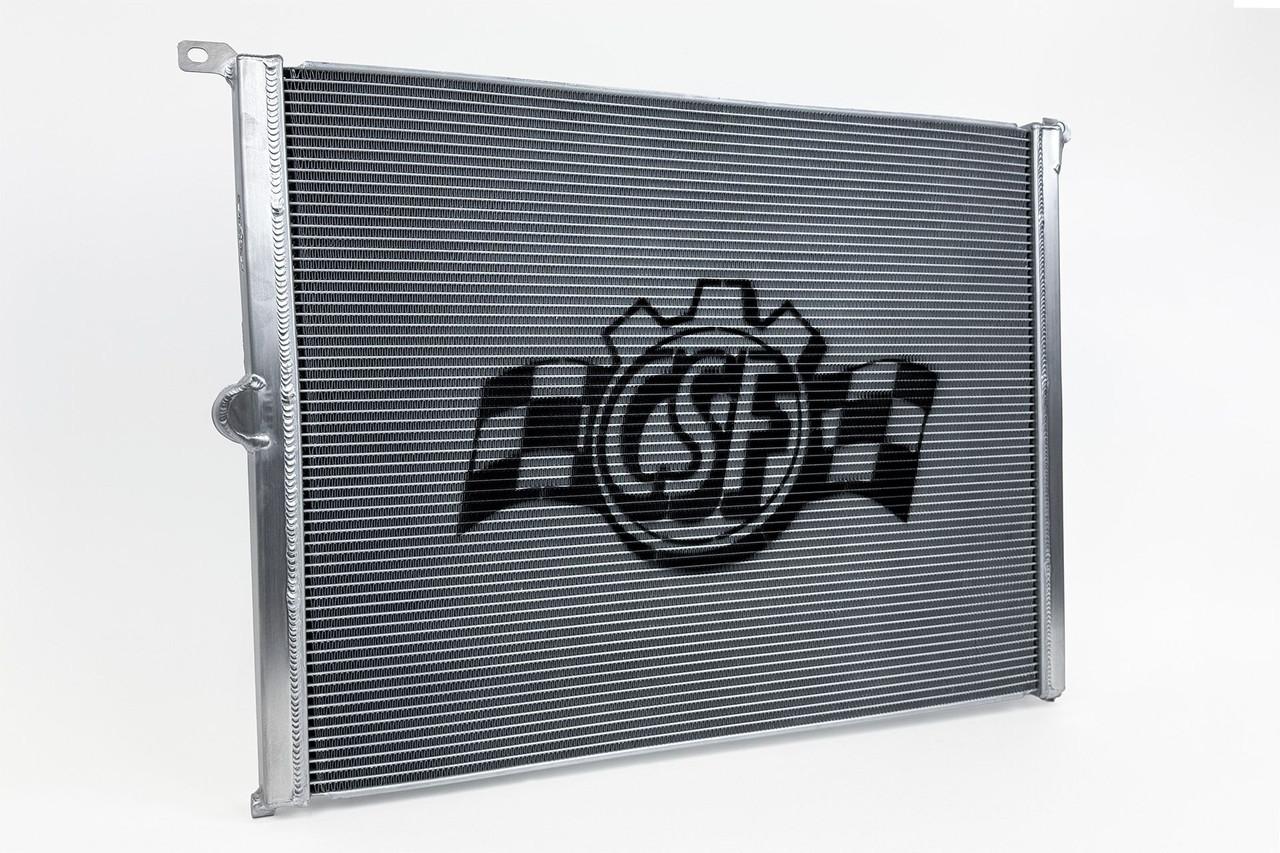

Replace the matching engine-coolant radiator on the listed F-Chassis BMW applications with a two-row CSF aluminum unit. This is the main engine radiator, separate from the low-temperature charge-cooling heat exchanger.
Technical Details
- Fabspeed catalog reference: 7089.
- Two-row 42 mm core.
- CSF B-Tube cooling tubes and 5 mm multi-louver fins.
- TIG-welded aluminum tanks and core with brushed finish.

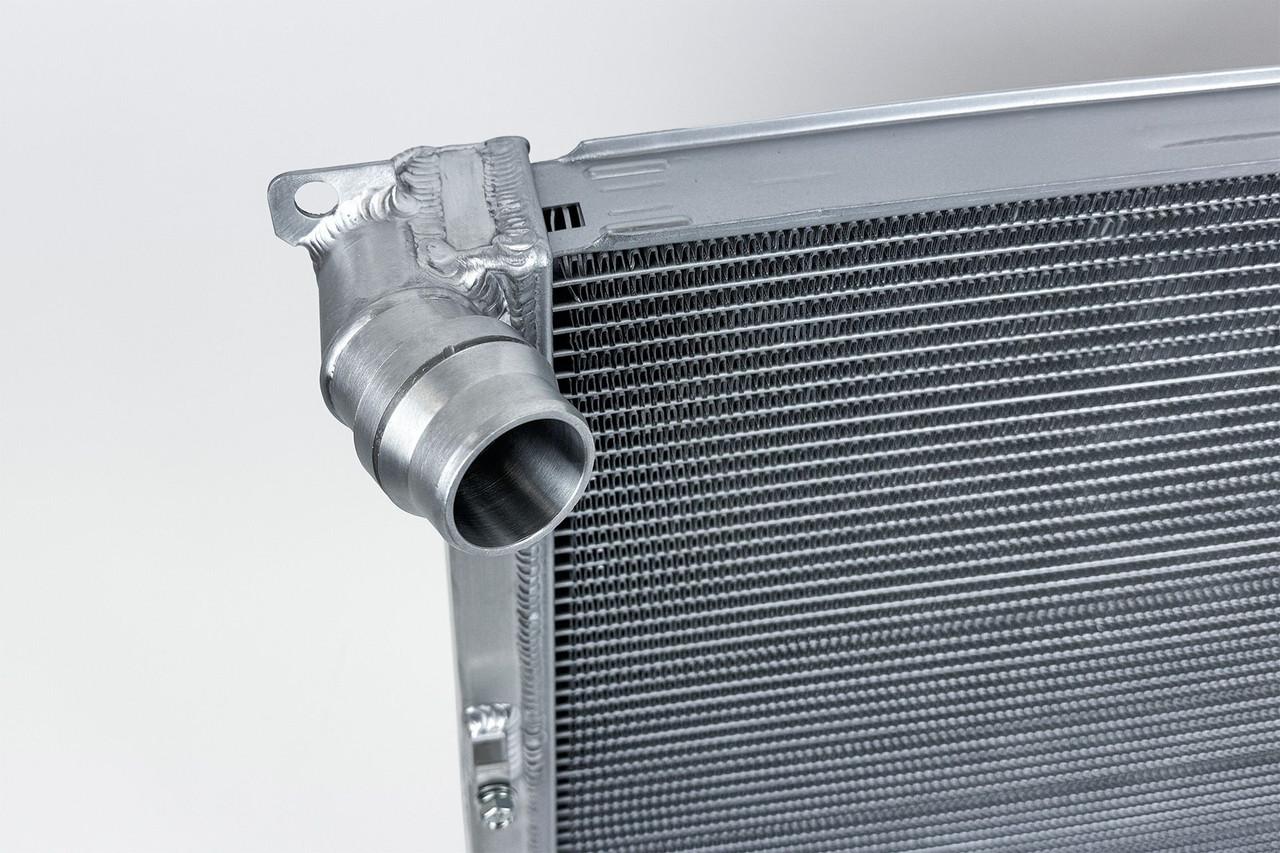

- Machined brackets and matching original-style inlet/outlet.
- Original reference 17118482623.
- Individually leak/pressure tested.
- Two-year limited CSF warranty, subject to terms.
- Confirm exact original radiator and cooling package.
With over 20 years of parts experience, PMB Performance can help check the application. Share your VIN and photos or references for the component being replaced before ordering if the match is uncertain.
Fitment & Compatibility
Use the application details below together with the original component and any existing modifications.
| Years | Make | Model / chassis | Version / application | Fitment notes |
|---|---|---|---|---|
| 2016–2019 | BMW | 340i F3X | Matching radiator; including xDrive | Confirm original radiator reference. |
| 2017–2020 | BMW | 440i F3X | Matching radiator; including xDrive | Verify cooling package. |
| 2017–2021 | BMW | M240i F2X | Matching radiator; including xDrive | Not later G42 M240i. |
| 2017–2019 | BMW | 330i F3X | M Sport package only; matching radiator | Non-M Sport excluded unless exact original reference independently matches. |
| 2017–2020 | BMW | 430i F3X / 230i F2X | M Sport package only; matching radiator | Confirm original reference and body; badge alone is insufficient. |
